Canon ImagePROGRAF iPF650 Series - Page 143

Chapter 4
4-9

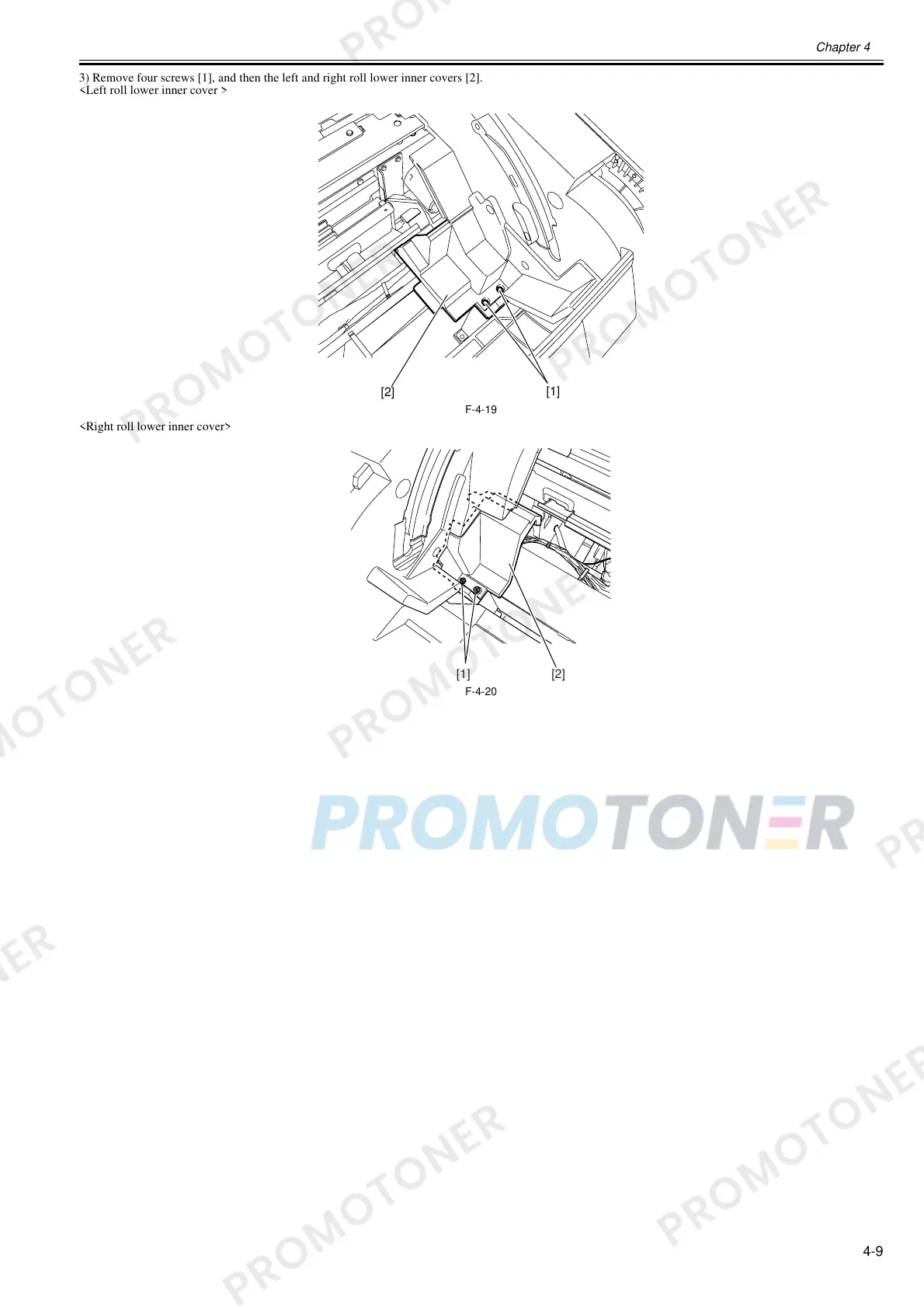

3) Remove four screws [1], and then the left and right roll lower inner covers [2].
<Left roll lower inner cover >
F-4-19
<Right roll lower inner cover>
F-4-20
[2]
[1]
[1] [2]
