Chapter 4
4-10

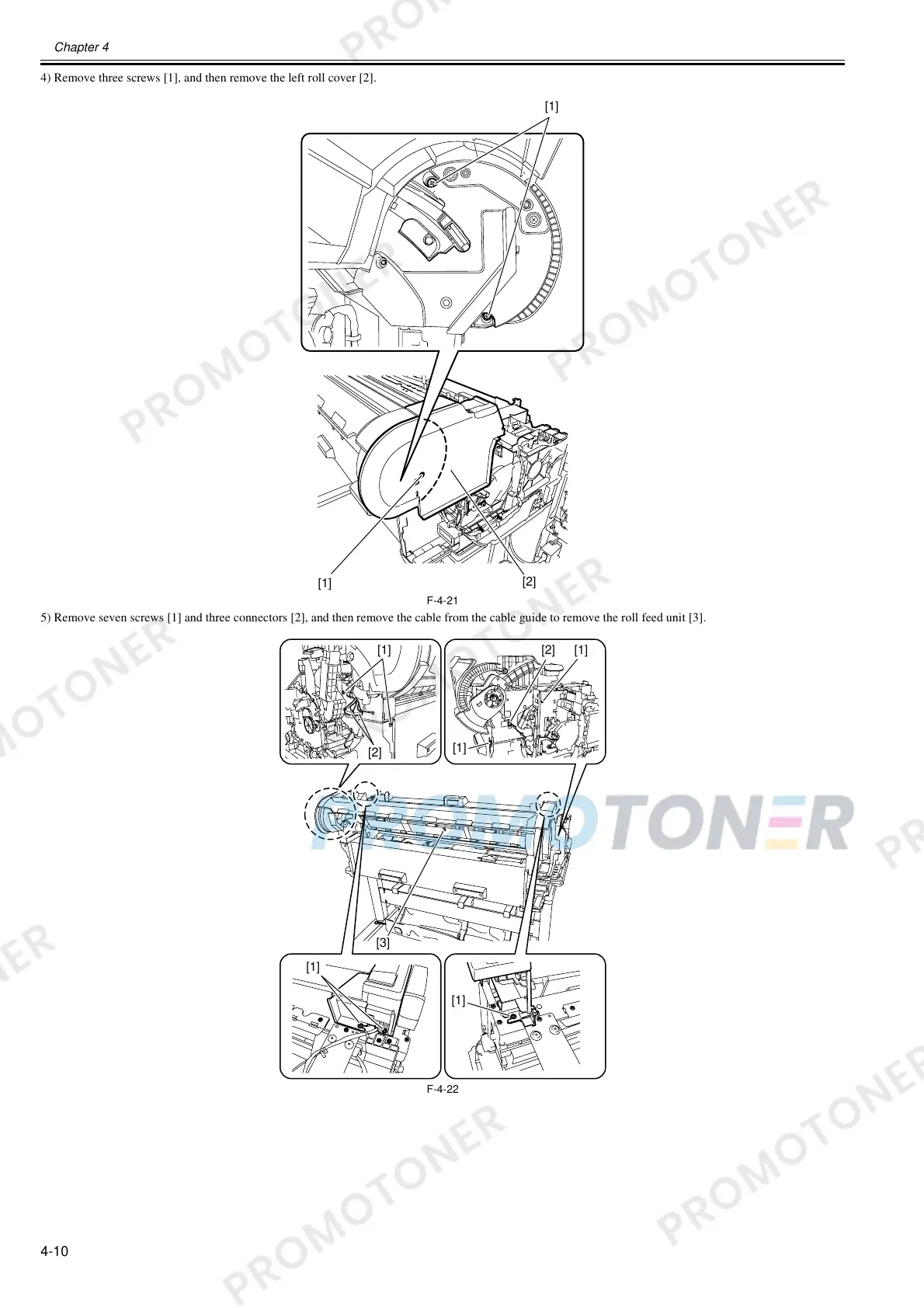

4) Remove three screws [1], and then remove the left roll cover [2].
F-4-21
5) Remove seven screws [1] and three connectors [2], and then remove the cable from the cable guide to remove the roll feed unit [3].
F-4-22
[1]
[1]
[2]
[1]
[1]
[2]
[3]
[1][2]
[1]
[1]
