CHAPTER 5 PICK-UP/FEEDING SYSTEM
COPYRIGHT
©
1999 CANON INC. CANON PC800s/900s REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
5-22

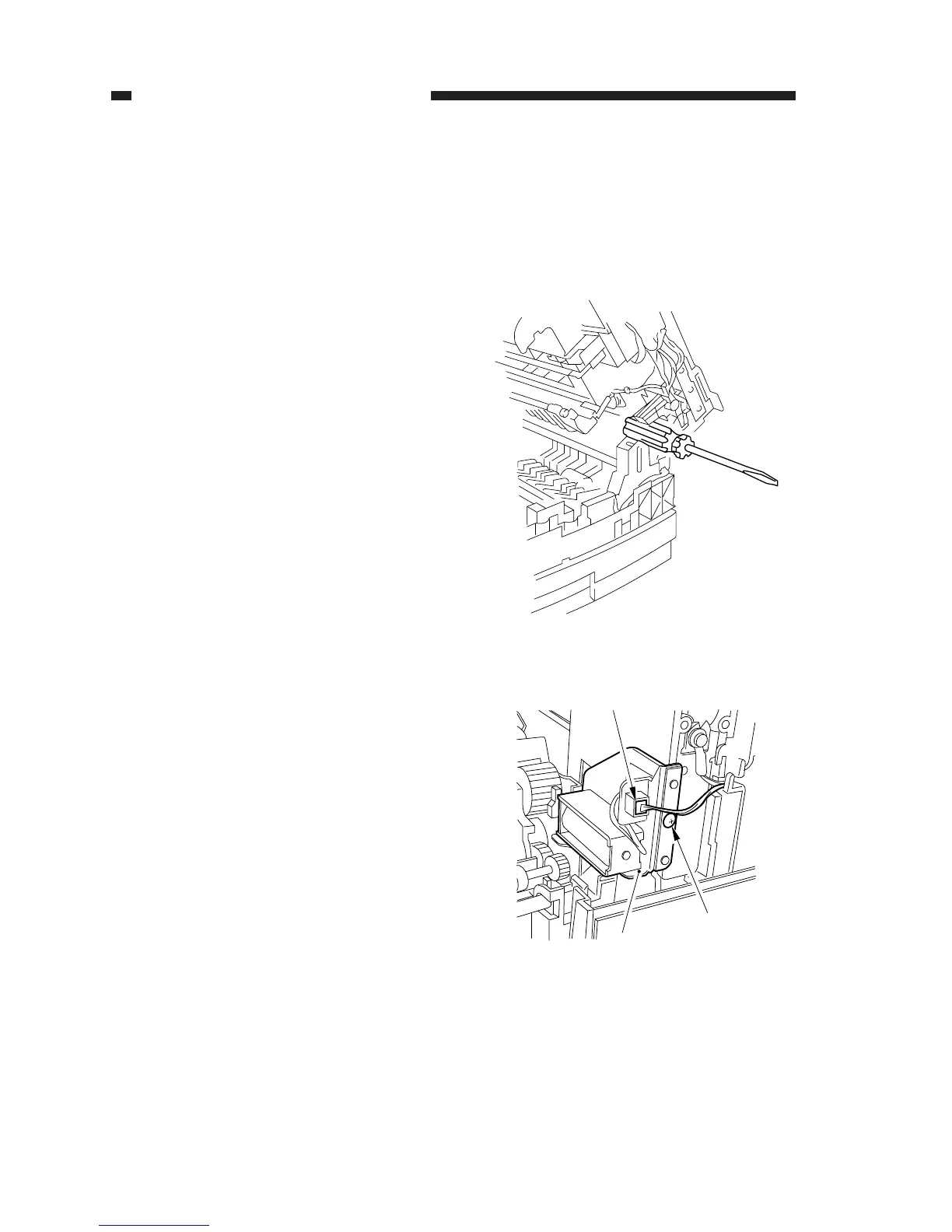

Figure 5-207
Figure 5-208
[1]
[2]
[3]
2. Removing the Pickup Clutch
2.1 Removing the Pickup Clutch (single-
feeder type)
1) Remove the front lower cover.
(See Chapter 7.III.A.2.“Removing the
Front Lower Cover.”)
2) Remove the registration roller unit.
(See E.1.“Removing the Registration
Roller Unit.”)
3) Open the machine’s top unit, and hold it in
place using the handle of a screwdriver
(about 30 mm in diameter).
4) Disconnect the connector [1], and remove
the screw [2]; then, detach the solenoid
unit [3].
To Next Page
