CHAPTER 5 PICK-UP/FEEDING SYSTEM
COPYRIGHT
©
1999 CANON INC. CANON PC800s/900s REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
5-23

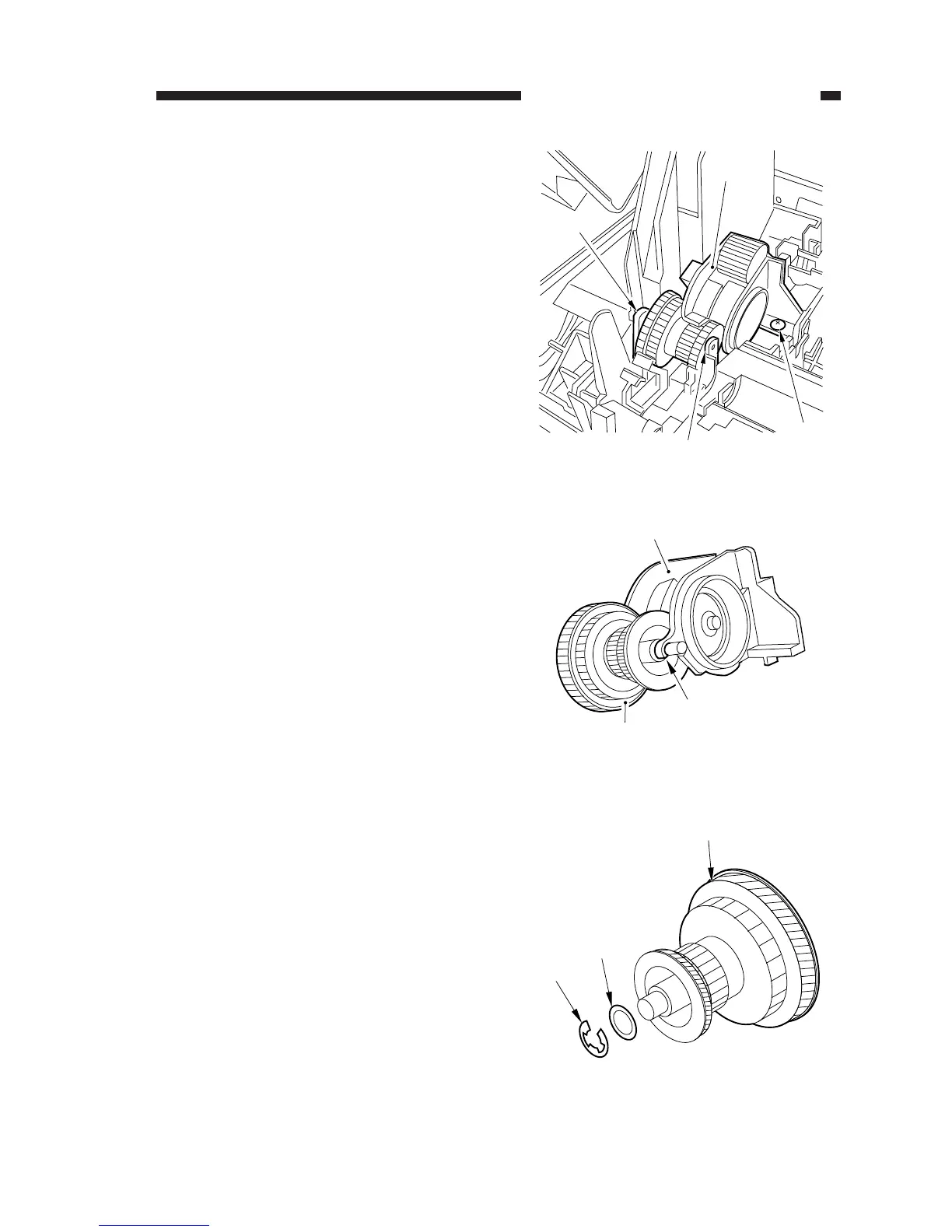

Figure 5-209
Figure 5-210
Figure 5-211
[5]
[6]
[5]
[4]
[8]
[7]
[6]
[9]
[10]
[11]
5) Remove the screw [4] and the two claws
[5], and detach the gear unit [6].
6) Free the claw [7] of the gear unit [6], and
detach the clutch unit [8].
7) Remove the E-ring [9] and the washer
[10], and detach the pickup clutch [11].
To Next Page
