CHAPTER 5 PICK-UP/FEEDING SYSTEM
COPYRIGHT
©
1999 CANON INC. CANON PC800s/900s REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
5-25
Figure 5-214
Figure 5-215
[4] [4][5]
[6]
[7]

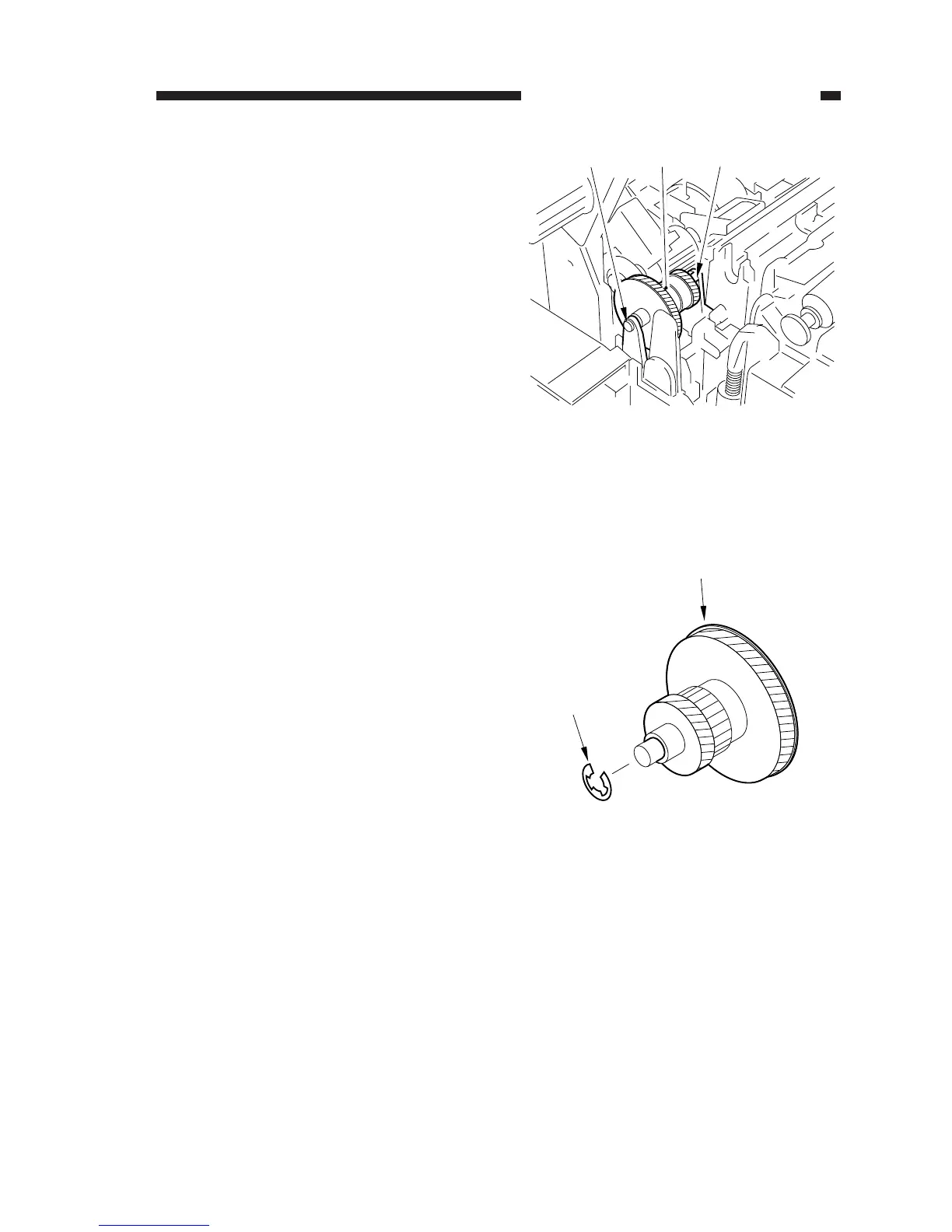

5) While freeing the two claws [4], remove
the pickup clutch unit [5].
6) Remove the E-ring [6], and detach the
pickup clutch [7].
