CHAPTER 3 EXPOSURE SYSTEM
COPYRIGHT
©
1999 CANON INC. CANON PC800s/900s REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
3-23
Figure 3-319
Figure 3-320
[8]
[17]
[9]
[16]
[14]
[18]
[19]
[14]

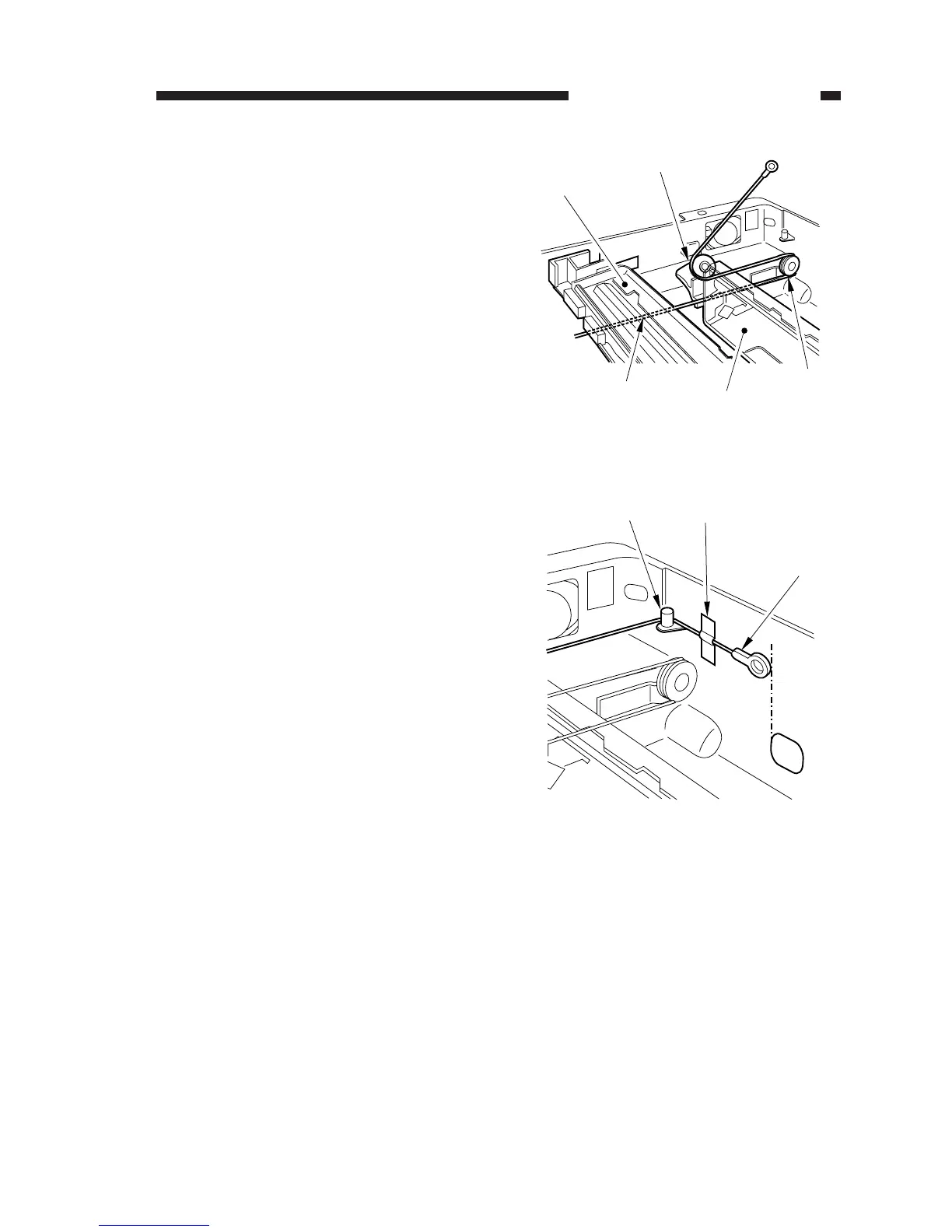

7) Lead the longer end [14] under the No. 1
mirror mount [8] and the No. 2/3 mirror
mount [9]; then, hook it on the pulley [16]
on the left front side and the pulley [17] of
the No. 2/3 mirror mount.
8) Hook the longer end [14] on the cable
hook [18]; then, secure its end to the left
side with adhesive tape [19].
Be sure that the secured end of the cable is
found where the hole in the left side plate
and the tip of the cable matches.
