10 Visually inspect the 3D model for any holes. If holes are present near the restoration area, re-scan
the area until the holes are filled.
11 When you are satisfied with the 3D model, continue with the buccal bite registration acquisition.
Scanning the Buccal Bite Registration
To acquire a buccal bite registration using auto acquisition, follow these steps:
1 Click .
2 Have the patient bite down.
3 Position the CS 3500 at a 90-degree angle to the buccal surface of the preparation area, and
align the point where the upper and lower teeth meet in the middle of the video preview screen.
Rest the tip on the tooth surface to help steady the CS 3500.
When the CS 3500 is stable and the image is clear, the acquisition begins.

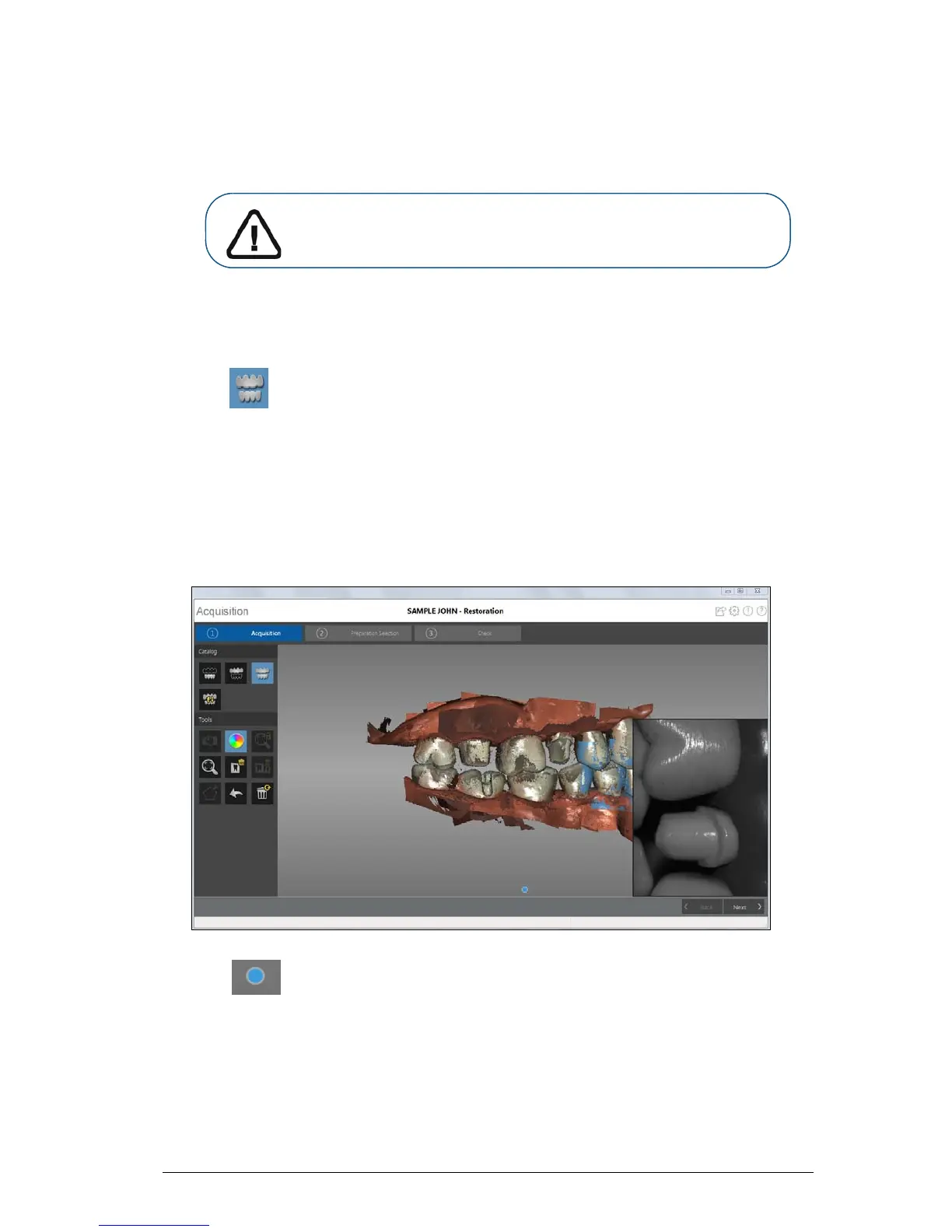

The example below shows a buccal bite registration.
A dot is displayed at the bottom of the window to indicate the capture was successful. A
successful bite image includes both the upper and lower arch.
Important: If you acquire images of teeth from both the upper and
lower jaw, you must also acquire the buccal bite registration.
