62-11640 8–6
8.5 ENGINE AND ENGINE RELATED SYSTEMS
SERVICE
Procedures for servicing the engine, fuel system,
engine cooling system and air cleaner are provided in
the following sub-paragraphs.
8.5.1 Fuel System
The fuel system consists of the fuel tank, mechanical
fuel pump, fuel filter, fuel injection pump, the injectors
and interconnecting tubing. The fuel system may also
be equipped with an optional electric pump and/or
optional electric fuel heater.
Two fuel system configurations are available, the stan-
dard extended life spin–on filter system and the extra
heavy–duty suction side filter system (see Figure 8.5).

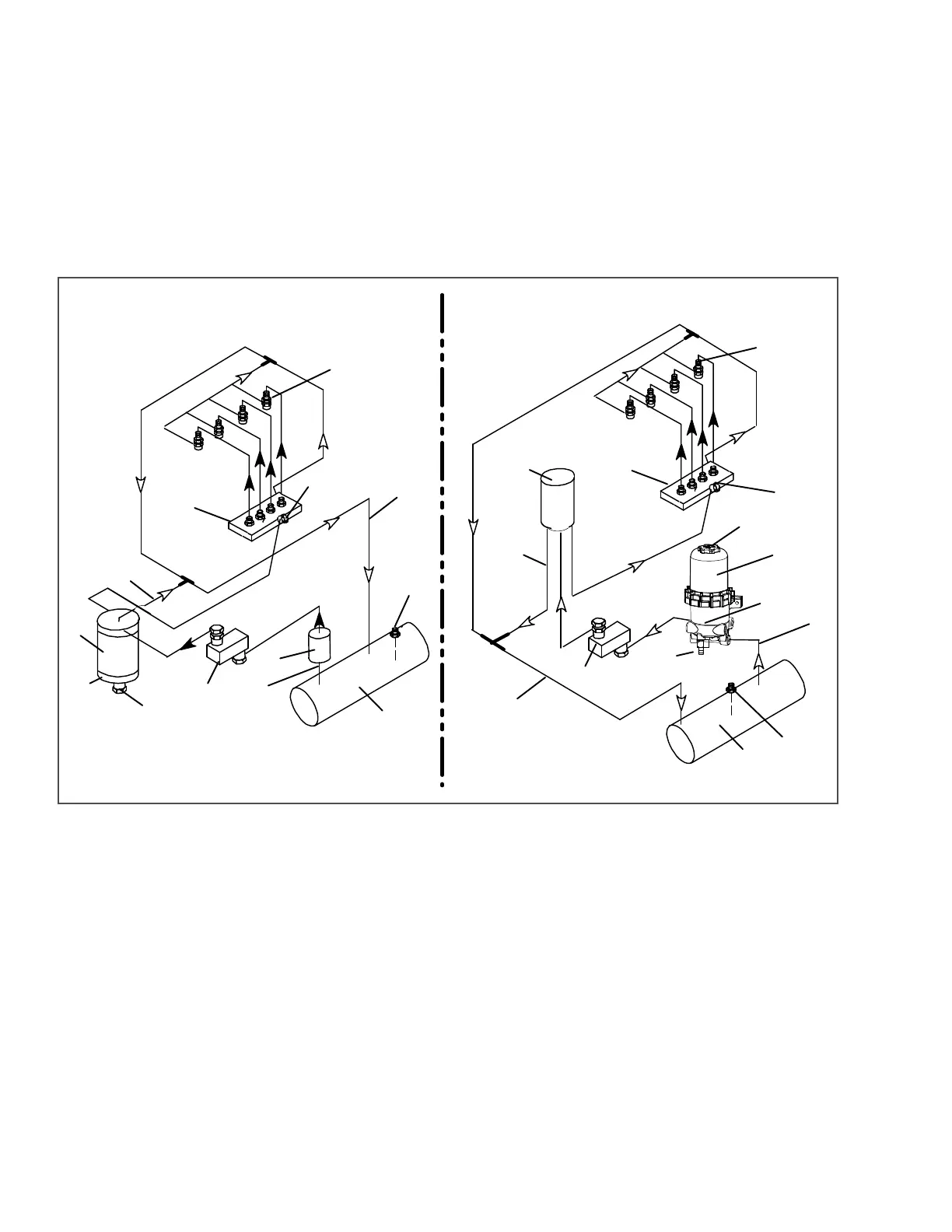

Figure 8.5 Fuel System Diagram
1. Fuel Tank
2. Supply Line
3. Electric Pump
4. Mechanical Pump
5. Water Drain Valve
6. Heater
7. Filter
8. Filter or Fuel Head Leak-Off Line
9. Injection Pump
10. Injector Nozzles
11. Bleed Screw
12. Return Line
13. Level Sensor
14. Vent Cap
15. Fuel Head Assembly
- - - - -
SPIN–ON FILTER SYSTEM SUCTION SIDE FILTER SYSTEM
10
11
12
13
1
2
3
4
5
6
7
8
9
15
8
12
1
13
2
6
7
14
11
10
9
5
4
