62-11640 8–8

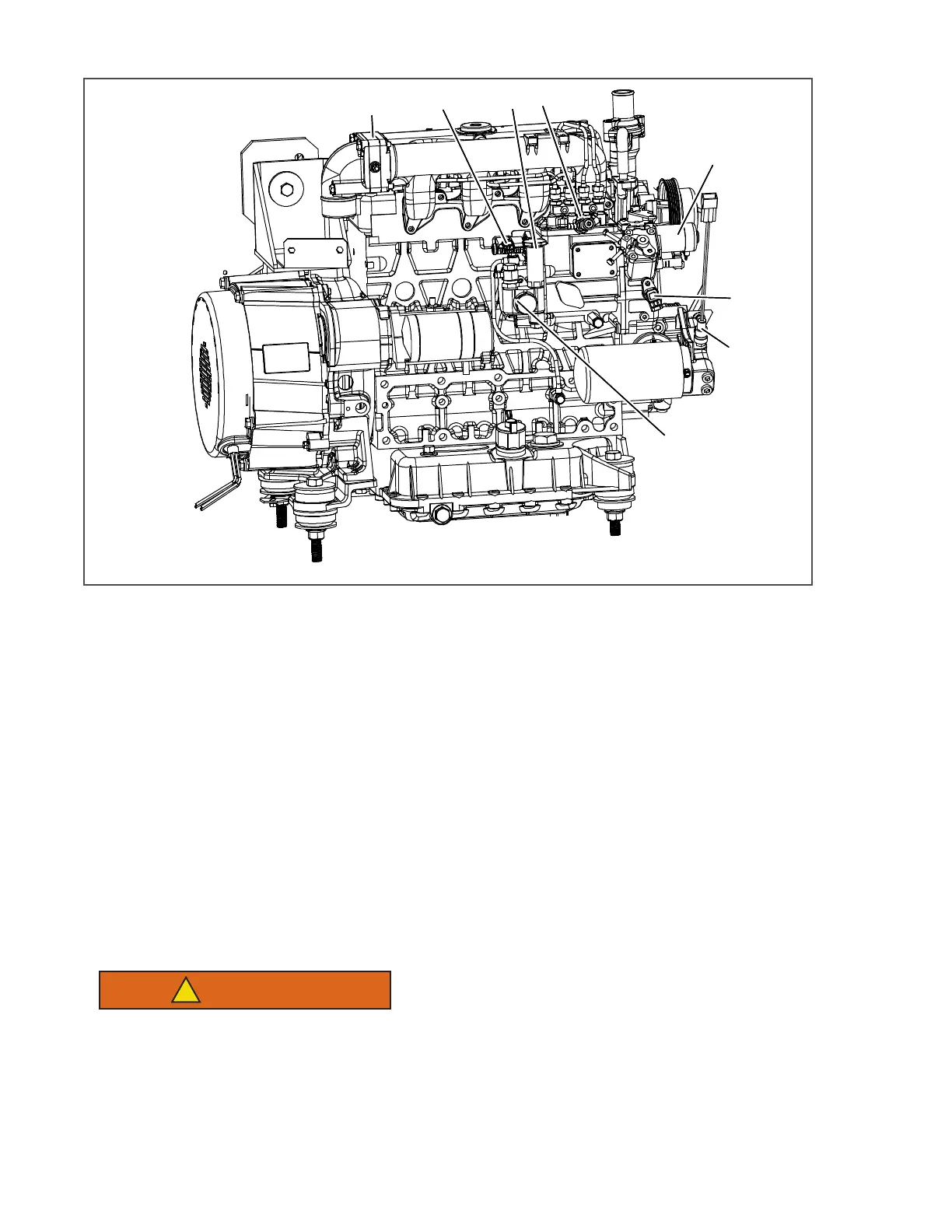

Figure 8.8 Engine Components
1. Engine Preheater (EPH)
2. Engine Coolant Temperature Sensor
(ENCT) (Behind Engine Preheater)
3. Rack Position Sensor (RPS)
4. Manual Plunger
5. Injection Pump
6. Fuel/Speed Actuator (FSA)
7. Engine Speed Sensor (ENSSN)
8. Engine Oil Pressure Switch (ENOPS)
9. Mechanical Fuel Pump * Engine Control Unit
(ENCU), not on engine, for location, see
Figure 2.2
- - - - -
8.5.4 Electric Fuel Pump Screen
To check or replace screen:
1. Ensure the unit will not start automatically by
disabling any two way communication and plac-
ing the STOP/RUN-OFF Switch in the OFF posi-
tion. Disconnect the high voltage source and
lockout/tagout the receptacle.
2. Remove bowl (See Figure 8.7).
3. Remove gasket and screen.
WARNING
!
Use the required protective eye wear and
clothing when working with solvents.
4. Wash screen in cleaning solvent and blow out
with air pressure. Clean bowl.
5. To install reverse above steps.
6. Start unit and check for leaks.
8.5.5 Spin–On Fuel Filter Replacement
To replace filter:
1. Ensure the unit will not start automatically by
disabling any two way communication and plac-
ing the STOP/RUN-OFF switch in the OFF posi-
tion. Disconnect the high voltage source and
lockout/tagout the receptacle.
2. Place a shallow pan under filter (Figure 8.5) and
open the drain valve to drain contents.
3. Remove water separator and O-ring or heater
bowl and then remove element.
4. Install water separator on new element using
new O-ring or heater bowl on new element using
new gasket.
5. Fill new element with clean diesel fuel, lubricate
the seal and install. Tighten firmly by hand.
6. Start unit and check for leaks.
1, 2
3
4
5
6
7
8
9
