4.3 Installation

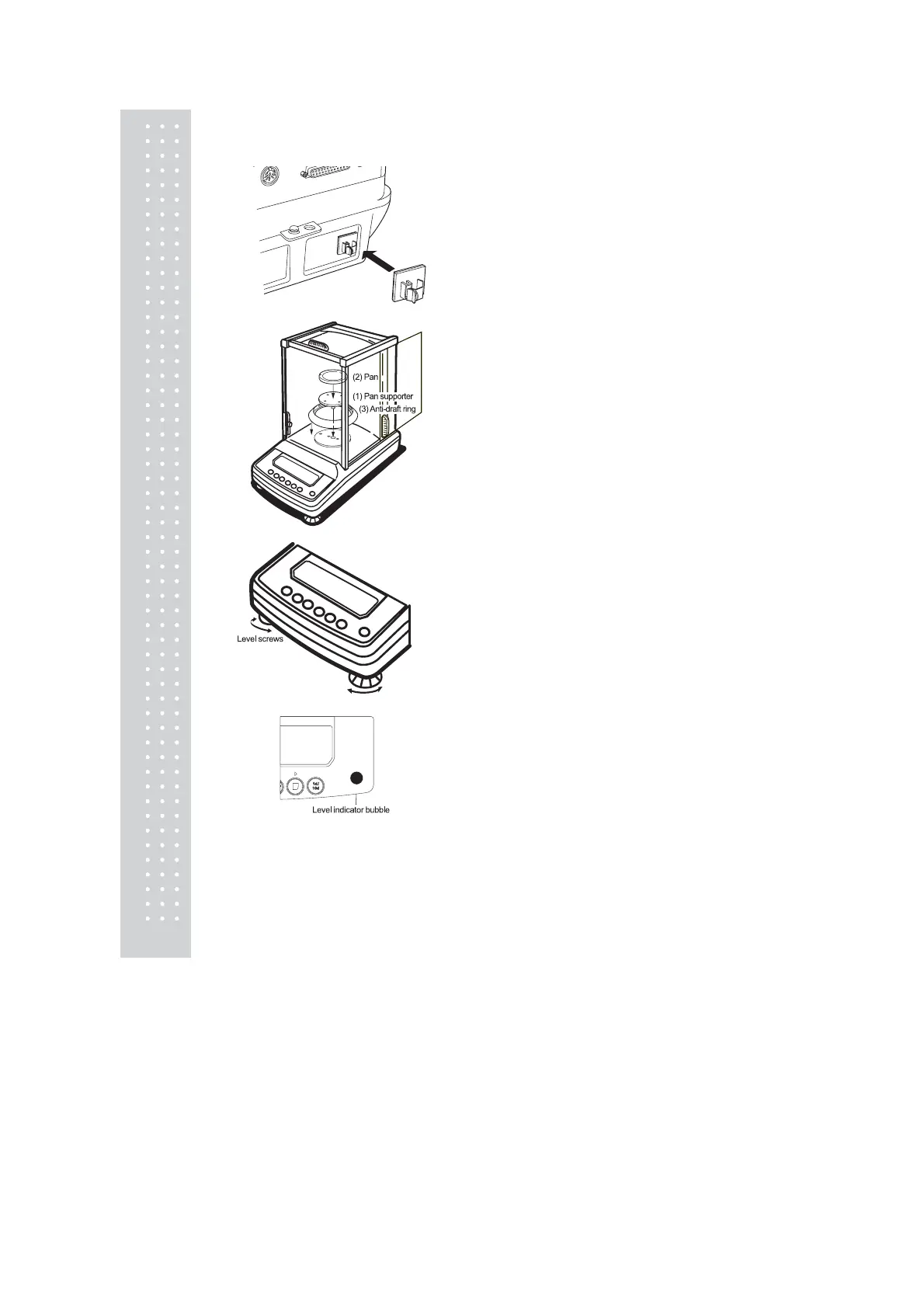

1 Attach the adapter cable holder.
Peel the protective sheet of adhesive
off the adapter cable holder, and stick
it on the back of the balance as shown
in the figure.
2 Place the balance main body on the
installation site.
3 Attach the pan supporter, the pan,
and the antidraft ring.
(1) Gently attach the pan supporter on the
center axis of the weighing chamber.
(2) Gently place the pan on the pan
supporter.
(3) Place the anti-draft ring.
4 Adjust the horizontal level.
(level adjustment)
There are two level screws on the
front of this balance.
The screws grow longer when turned
in clockwise direction from above
and they grow shorter when turned
counter-clockwise. Adjust the
level screws until the bubble in the
level indicator is in the middle of the
red circle.
