9. Display Settings
9.1 Bar Graph Display
This function displays a bar graph representation of the load on the pan. This may be used to
prevent sudden appearance of “oL” (overload) during measurement. This bar graph display
can be turned on or off.
Setting ON/OFF
1 Press the [CAL] key repeatedly from the mass
display and when “Func.SEL” appears,
press the [O/T] key. “CAL” is displayed.
2 Press the [CAL] key repeatedly unit
“AdiSP:**” appears. The ** position
displays the current setting “on” or “oF”.
3 Press the [O/T] key. “Ad-on” is displayed.
At this point, pressing the [CAL] key
switches the display between “Ad-on” and
“Ad-oF”.
When the current setting is displayed,
the stability mark (¨) appears. To change the
setting, press the [O/T] key when the desired
setting appears, and the display will return to
“AdiSP:**”, indicating the new setting.
4 If no change is required, press the [POWER]
key. The display returns to “AdiSP:**”.
5 Press the [POWER] key repeatedly to return
to the mass display.

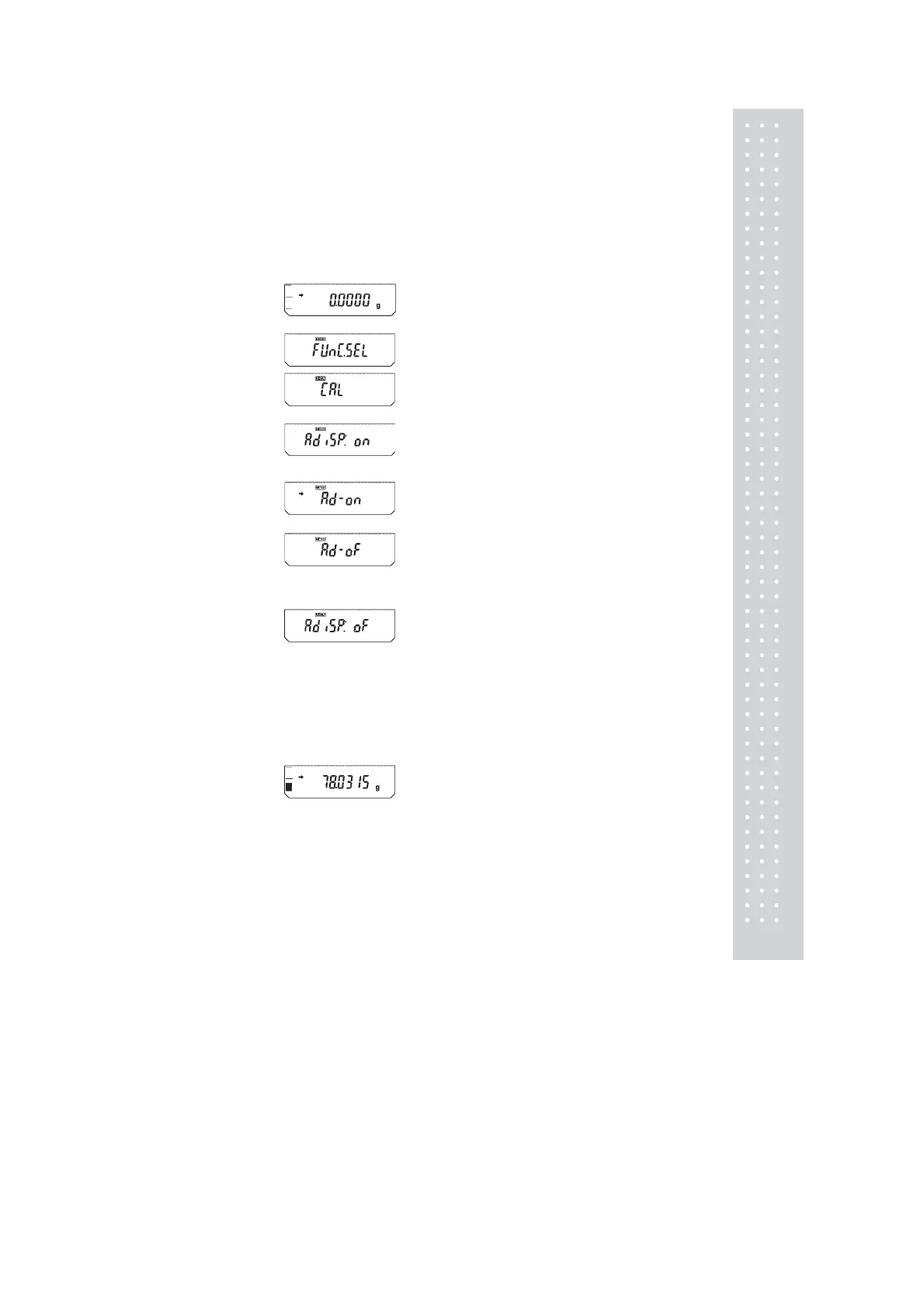

Bar graph in weighing
...
...
(Example)
(Example)
(Example)
(When OFF)
(Example)
(When ON)
During
setting
(When ON)
(When ON)
During
setting
Setting
check
Setting
check
(Example)
(When about one third
of the capacity is used)
