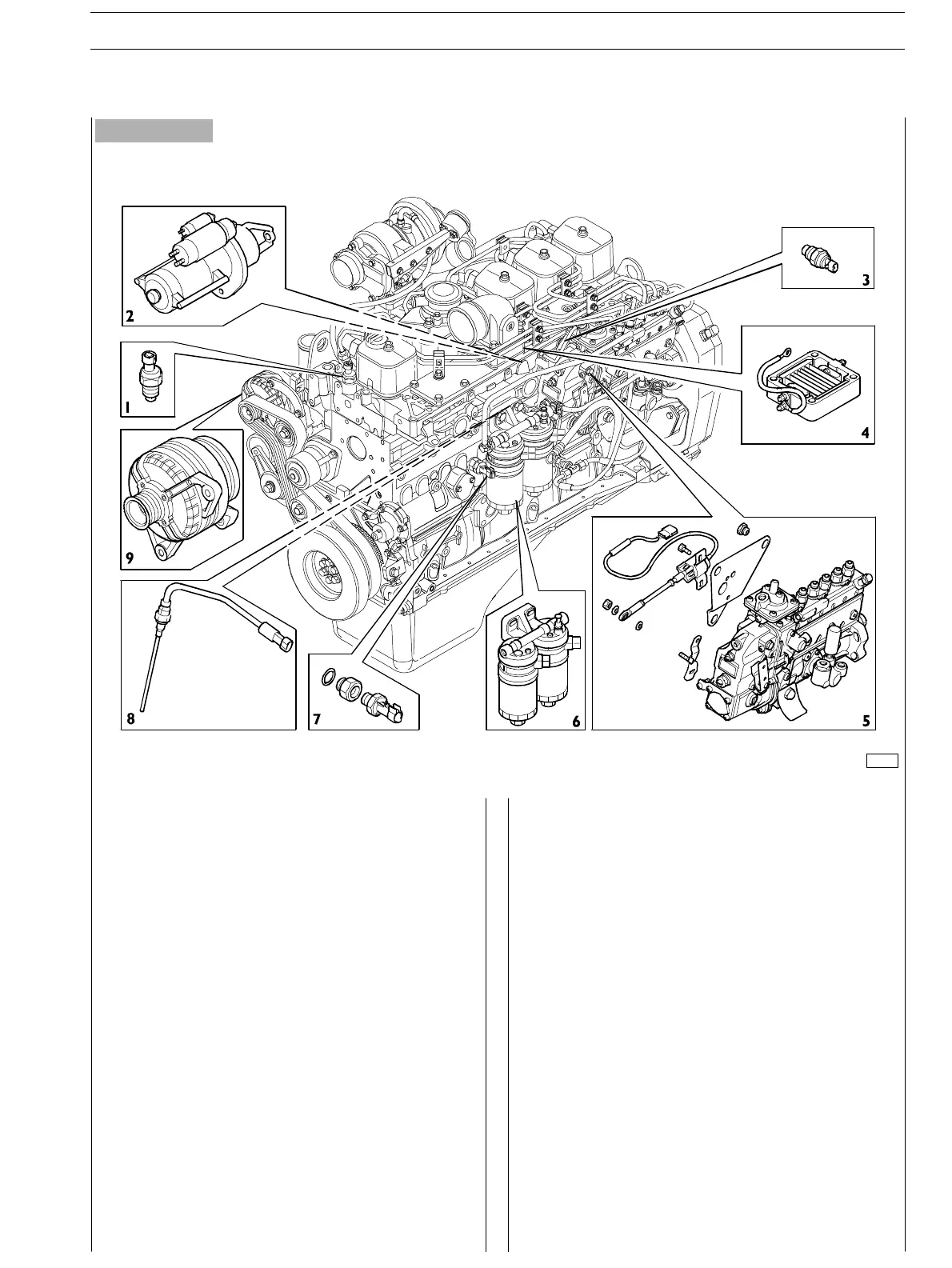

Figure 224
Th e elec t r i c a l c o mpo n en t s provided w it h F4BE 0684
Engine are listed here following:
1. Cooling liquid temperature sensor;
2. S tarter;
3. KSB Water temperature sensor;
4. Resistor for c old start (whether specifically designed);
5. Engine stop assembled to feed pump;
6. Fuel heater;
7. O il pressure switch;
8. Engine oil lever transmitted;
9. Alt ernat or;
76521
SECTION 3 − DUTY − INDUSTRIAL APPLICATION E NG I NE S
79
ED. FEBUARY 2003
ELECTRICAL COMPONET LAYOUT (6 CYL. ENGINES WITH PUMP UNIT)
