SECTION 4 − OVERHAUL AND TECHNICAL SPECIFICATIONS
ENGINES 3
ED. FEBUARY 2003

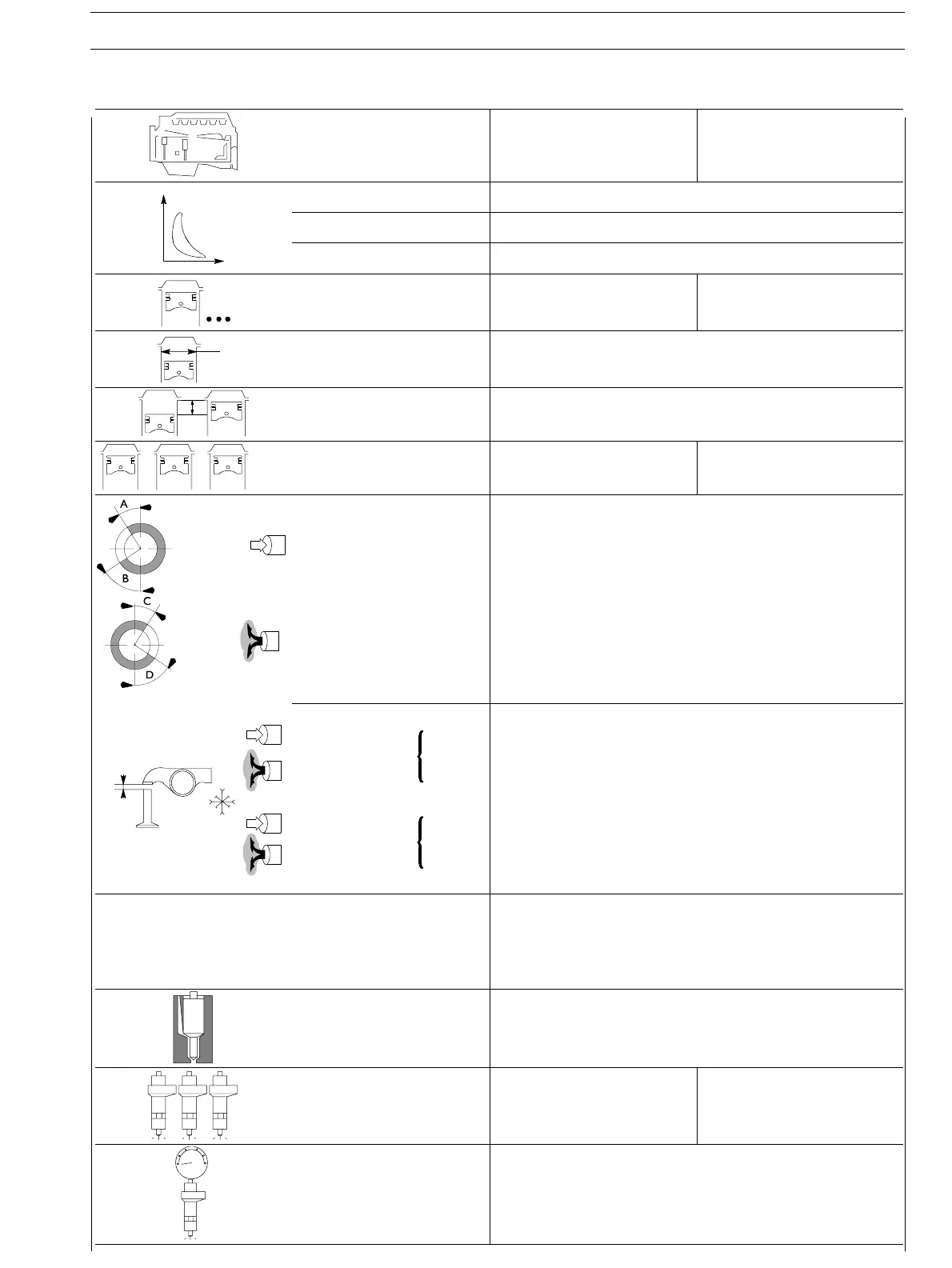

GENERAL SPECIFICATIONS
Ty p e 4CYLINDERS 6CYLINDERS
Cycle Four−stroke diesel engine
Power Supercharged with intercooler
Injection Direct
Number of cylinders 4in−line 6in−line
∅
Bore mm 1 04
Stroke mm 132
+++..=
Total displacement cm
3
4485 6728
TIMING
start before T.D.C. A
end after B .D.C. B
−
−
start before B.D.C. D
end after T.D.C. C
−
−
X
Checking timing
mm
X
mm
Checking operation
mm
X
mm
−
−
0.152 to 0.381
0.318 to 0.762
FUEL FEED
Injection
Ty p e : Bo sc h
VE 4/12F 1150LV
Nozzle type
In j e c tor s
DSLA1 45 P
Injection sequence 1−3 − 4 − 2 1−5 − 3 − 6 − 2 − 4
bar
Injection pressure bar
245 for F4GE0404A*D6
260 for others
