003240t

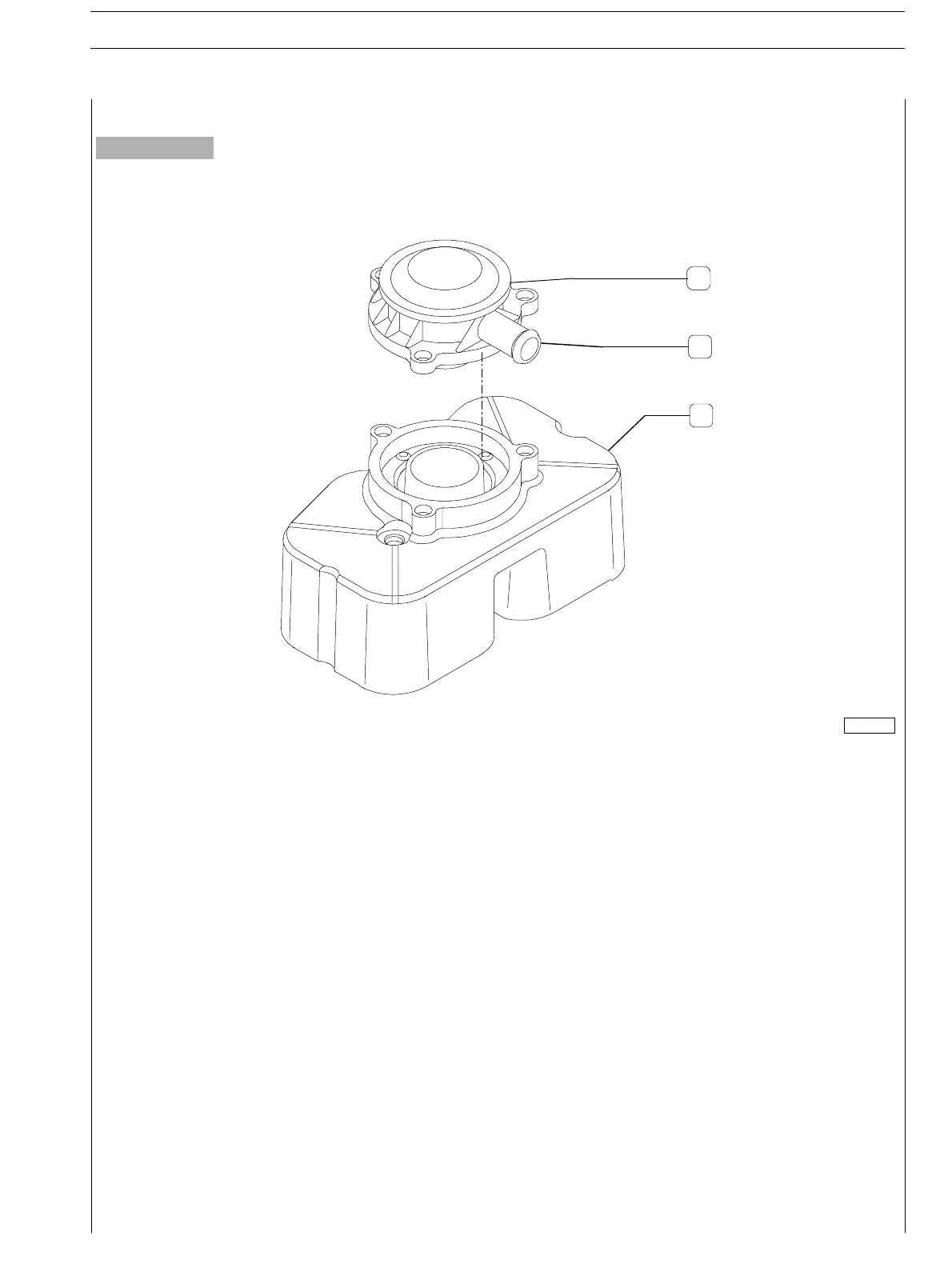

Figure 3
OIL VAPOUR RECIRCULATING SYSTEM
1.Valve− 2. Breather pipe − 3. Tappet Cap
On the tappet cap (3) there is a valve (1) whose duty is to condense oil vapour inducing these to fall down because of gravity,
to the Tappet cap underneath.
The remaining non−con densed vapours shall be properly c onveyed through the breather pipe (2), by suction as an example
(connection towards these vapours shall be designed by the Engineer).
1
2
3
E NG I NE S SECTION 1−GENERAL SPECIFICATIONS 7
ED. FEBUARY 2003
