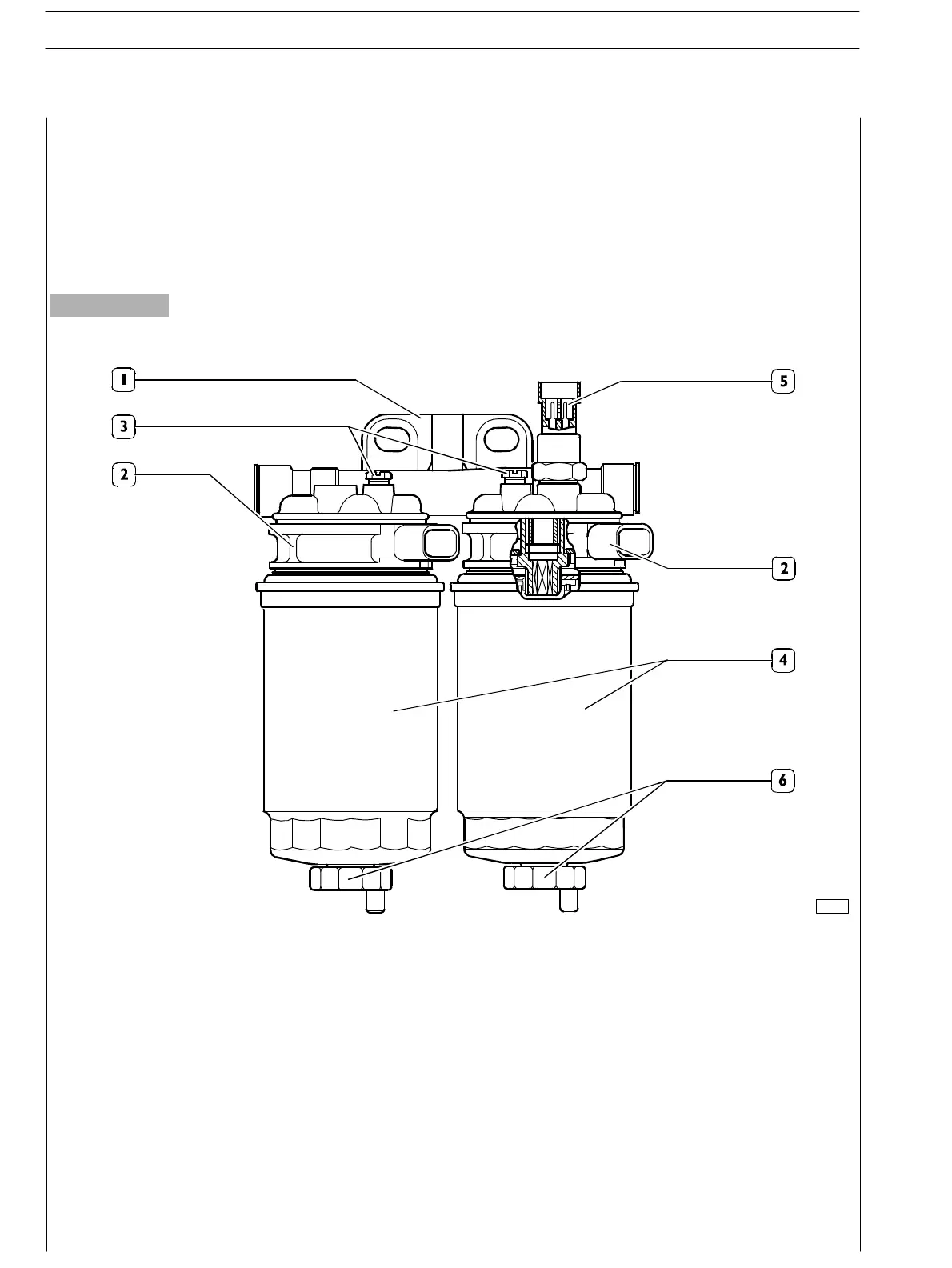

1. Fuel filter bearing − 2. Heater − 3. Bleender vent screw − 4. Filter cartridge −
5. Temperature sensor − 6. Water dump screw
FUEL FILTER
The filter is assembled close to the feed and priming pump and has the specific duty to provide bar rier to the impurities and separa-
tion of water from fuel.
On the filter cartridge base (4) there is a water dump sc rew, throughout which it is possible to provide regular drainage; on th e
bearing (1) for th o se equipment applications requir ing it (cold climate areas), there can be a heater assembled to (2) and a tempera-
ture sensor (5).
Figura 9
76142
E NG I NE S
12
SE CT I O N 2− FEED ED. FEBUARY 2003
