3248T

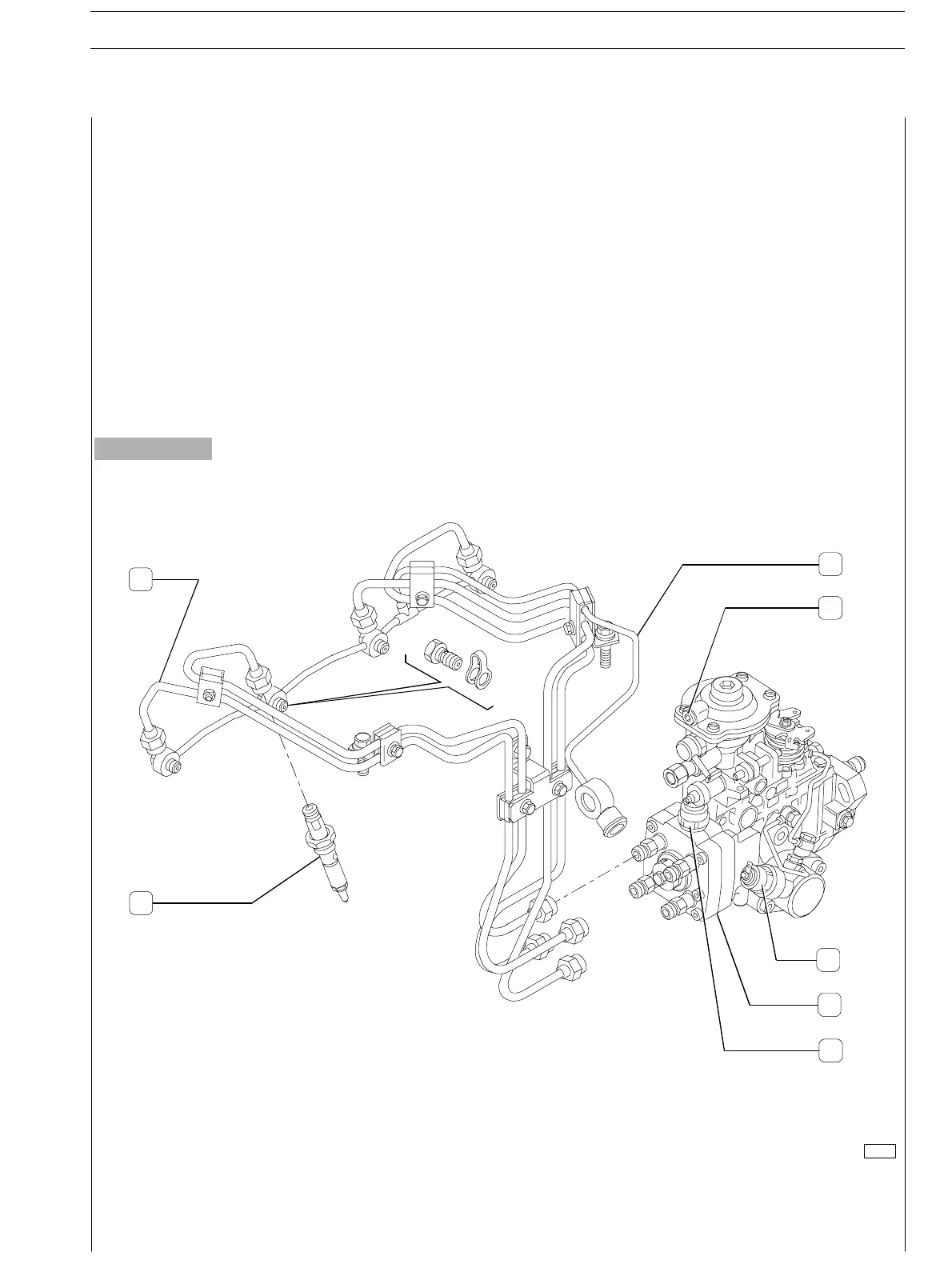

1. Injector feed pipes − 2. Fuel exhaust pipes from injectors − 3. Fuel feed rotary pump − 4. Connector for LDA pressure
gauge pipe within suct ion c ollect or − 5. KKSB thermal bulb − 6. Electro−valve − 7. Injector
INJECTION FEED SYSTEM BY MECHANICAL ROTARY PUMP
General information
Fuel feed system is composed by:
- Fuel tank (placed on the machine)
- Fuel delivery and back−flow to tank
- Fuel pre−filter (if available, it is usually placed close to the engine on th e machine fr ame)
- Priming pump, assembled to the engine and dr iven by the camshaft
- Fuel filter (assembled to the engine in different positions according to equipment application and duty)
- Injector feed pipeline (from fu el feed pump to inject ors)
- Injectors
1
2
7
4
5
3
6
Figura 1
E NG I NE S SECTION 2 − FEED 3
ED. FEBUARY 2003
