Case 445/M2 - Bush Replacement; Tappets; Fitting Tappets - Camshaft

70174
70175
70176
70164
70238
Figure 18

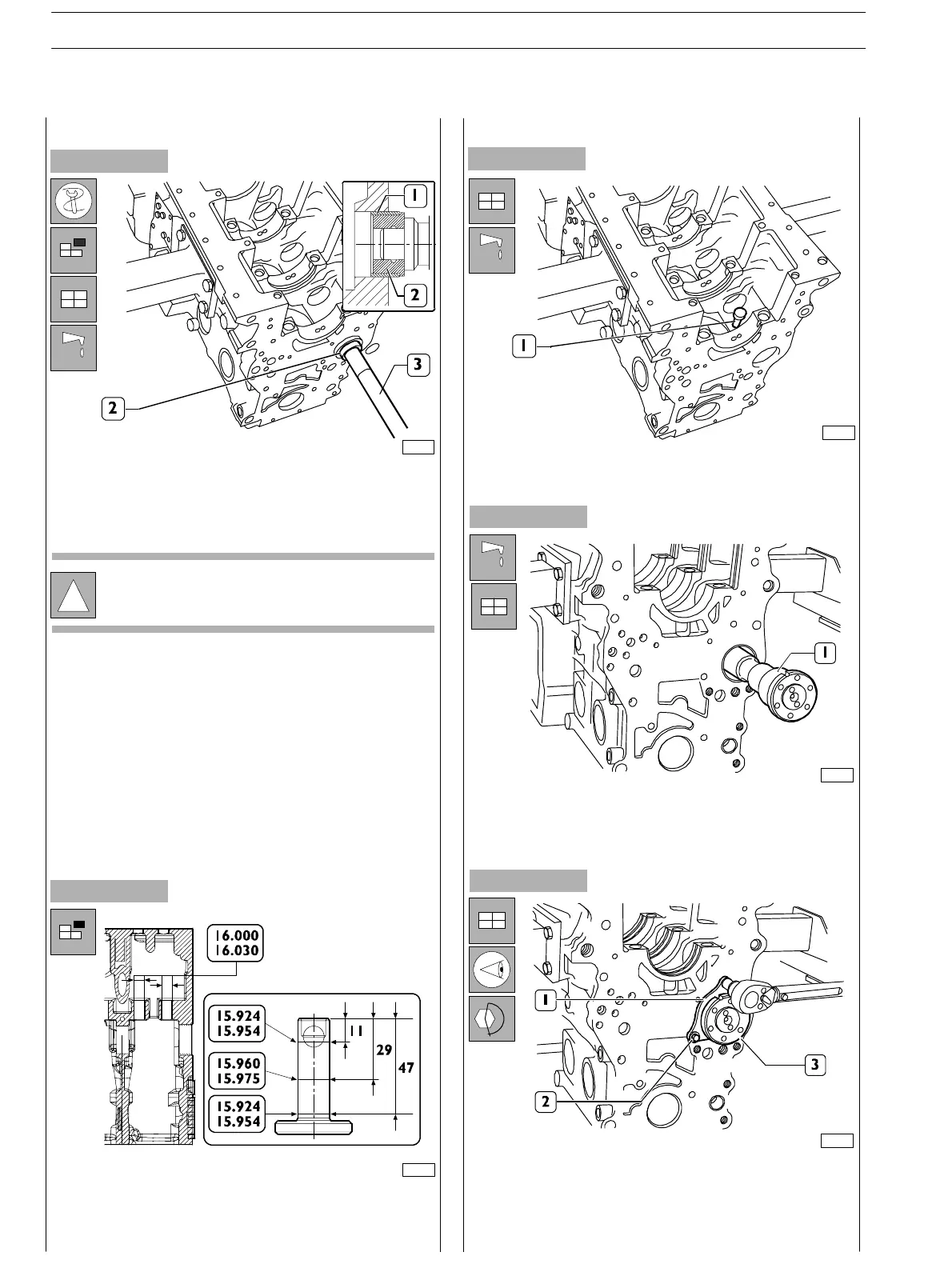

To replace front and rear bushes (1), remove and refit them
using acceptable tools (2) and (3).
MAIN DATA CONCERNING THE TAPPETS AND THE
RELEVANT HOUSINGS ON THE ENGINE BLOCK
Lubricate the tappets (1) and fit them into the relevant
housings on the engine block.
Lubricate the camshaft bushes and fit the camshaft (1) taking
care not to damage the bushes or the housings.
Set camshaft (3) retain in g plate (1) w ith the slot facing the
top of the engine block and the mar king facing the operator,
then tighten the screws (2) to the specified torque.
Bush replacement Fitting tappets — camshaft
!
When refitting the bushes (1), direct them to make
the lubricating holes (2) coincide with the holes on
the block housings.
Tappets
Figure 19
Figure 20
Figure 21
Figure 22
