Check cleanness of cylinder head and engine block coupling
surface.
Take care not to foul the cylinder head gasket.
Set the cylinder head gasket (1) with the marking “N. of
component” (1) facing the head.
The arrow shows the point where the gasket thickness is given.
70335

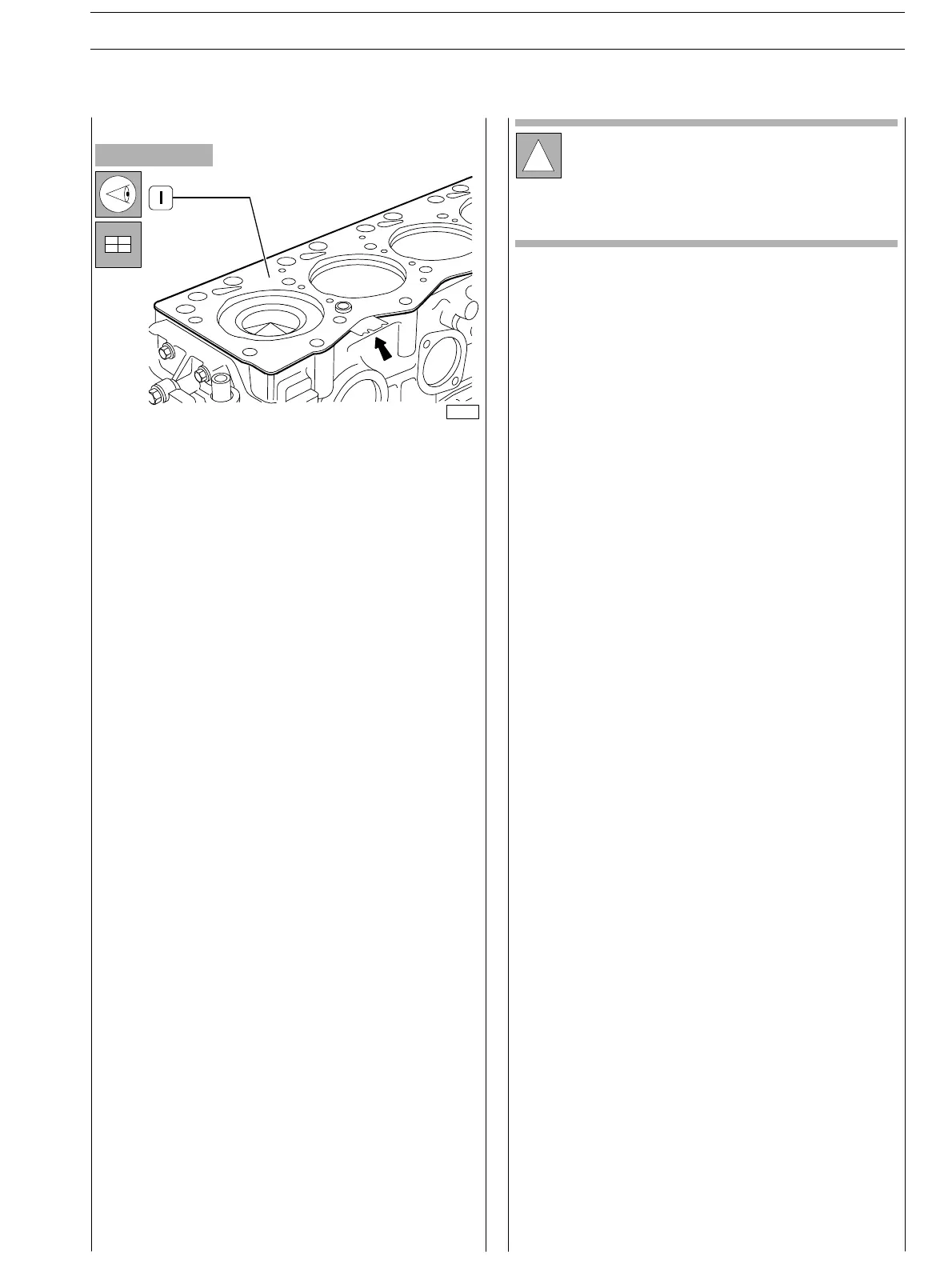

Figure 85
Refitting the cylinder head
!
Before re−utilising the fixing screws for the cylinder
head, verify there is no evidence of wear or
deformation and in that case replace them.
