Case 445/M2 - Page 149

70173

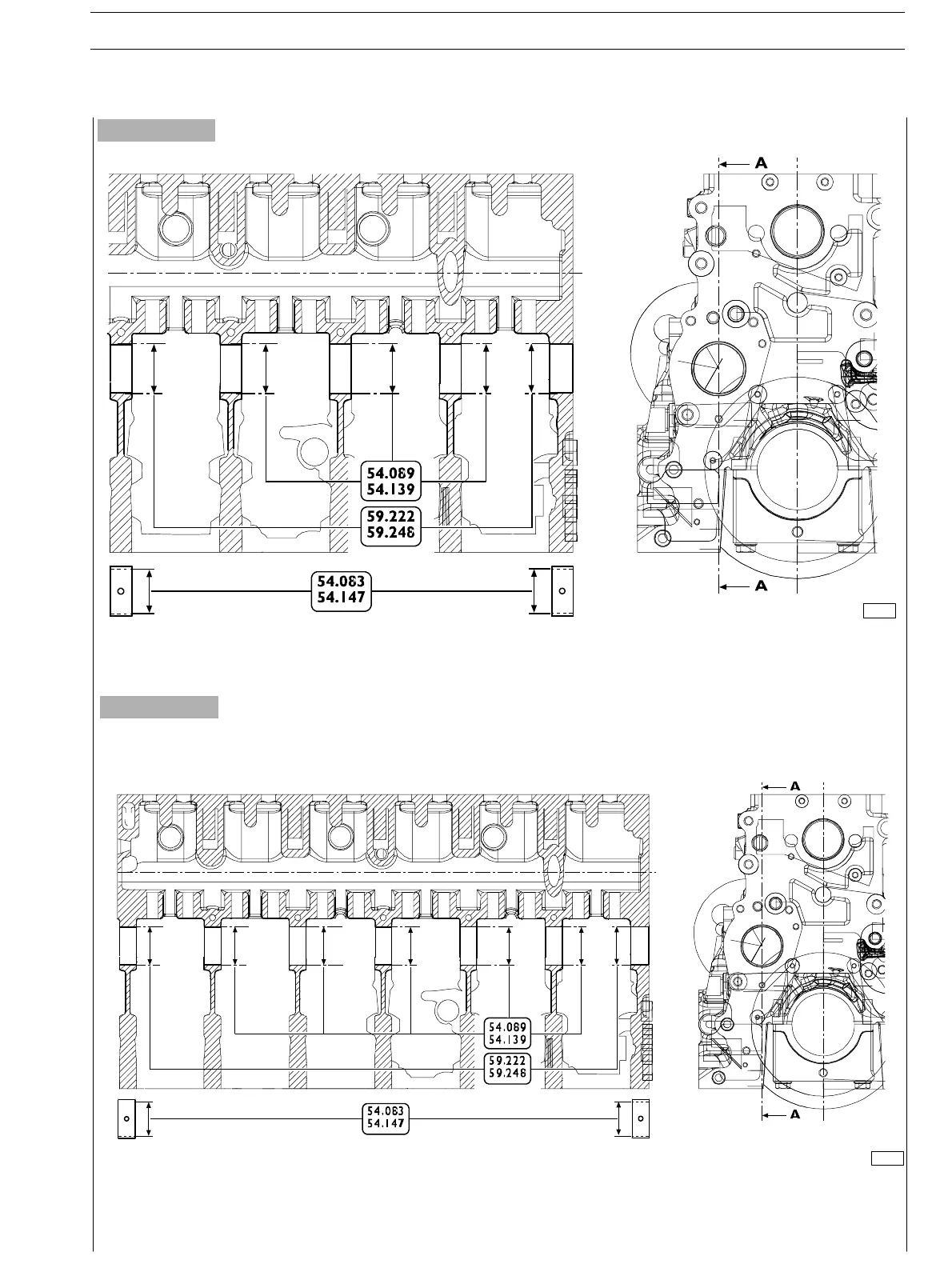

Figure 16
C AMSHAFT BUSH AND HOUSING MAIN DATA
* Value to be obtained after driving the bushes.
Sec. A−A
*
Figure 17
70513
MAIN DATA ABOUT CAMSHAFT BUSHES AND RELATED HOUSINGS
*Height to be obtained after driving the bushes.
sec. A−A
*
SECTION 4 − OVERHAUL AND TECHNICAL SPECIFICATIONS E NG I NE S
15
ED. FEBUARY 2003
