Case 445/M2 - Page 153

70514

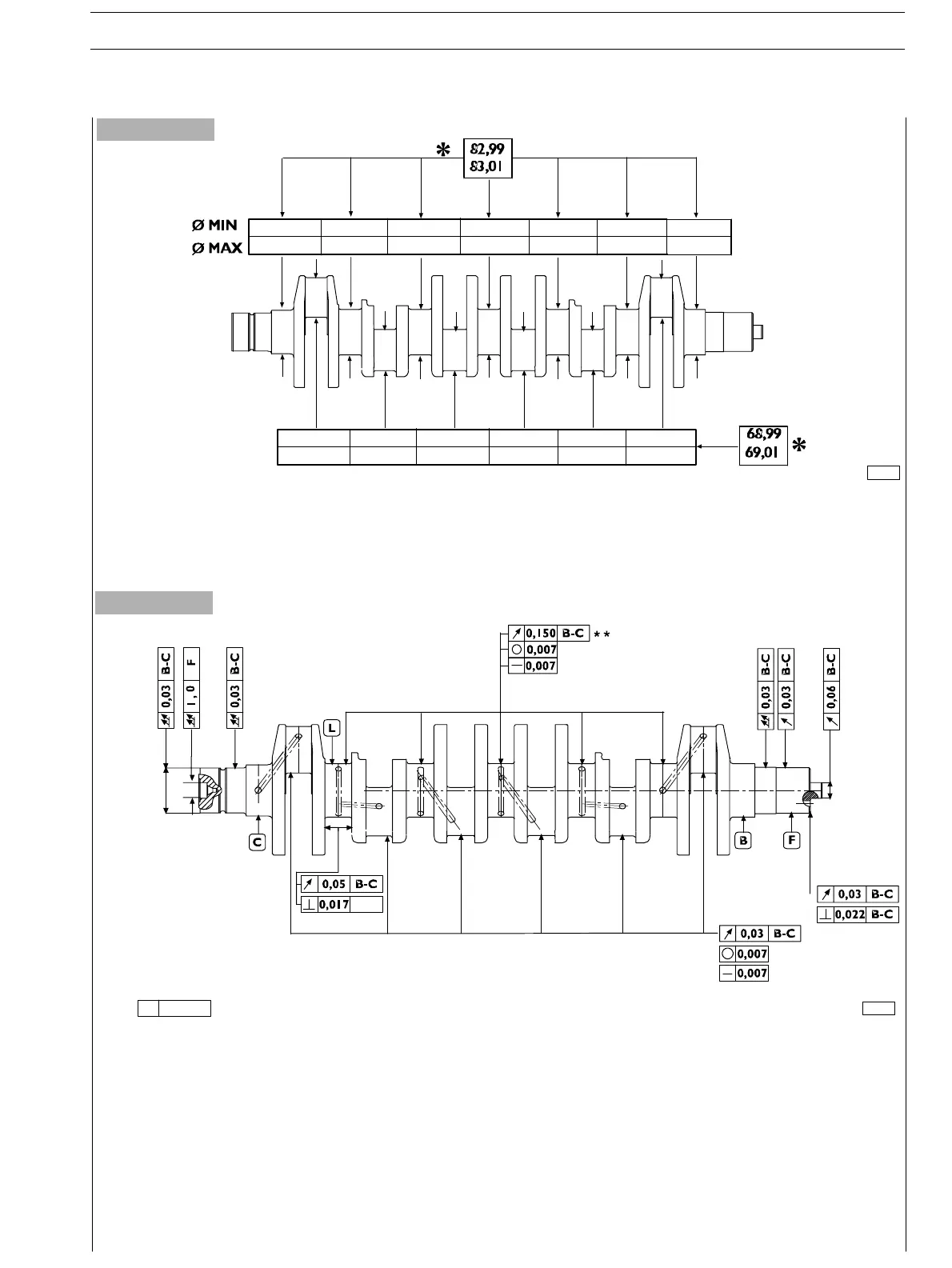

Figure 28
FILL THIS TABLE WITH OUTPUT SHAFT JOURNAL AND CRANKPIN MEASURED VALUES
*Rated value
Figure 29
MAIN OUTPUT SHAFT TOLERANCES
* Measured o n a radius greater than 45.5 mm
** ↗ 0.500 between adjacent main journals
70577
K
SECTION 4 − OVERHAUL AND TECHNICAL SPECIFICATIONS E NG I NE S
19
ED. FEBUARY 2003
