Figure 5

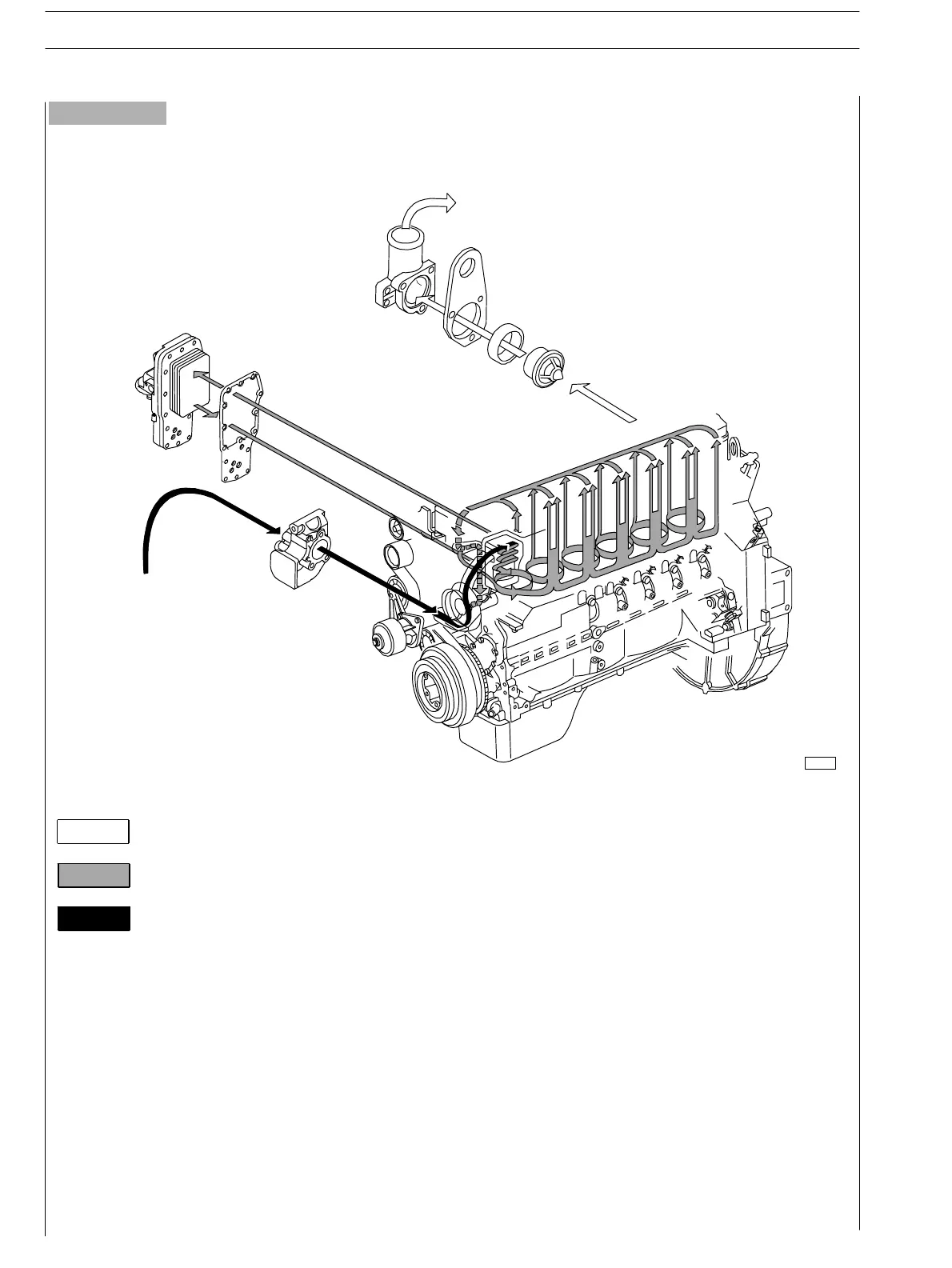

COOLING SYSTEM LAYOUT (6 cyl. engines)
Water coming out from thermostat
Water recircu latin g in engine
Water coming into pump
TO RADIATOR
FROM RADIATOR
