Figure 35
Figure 36

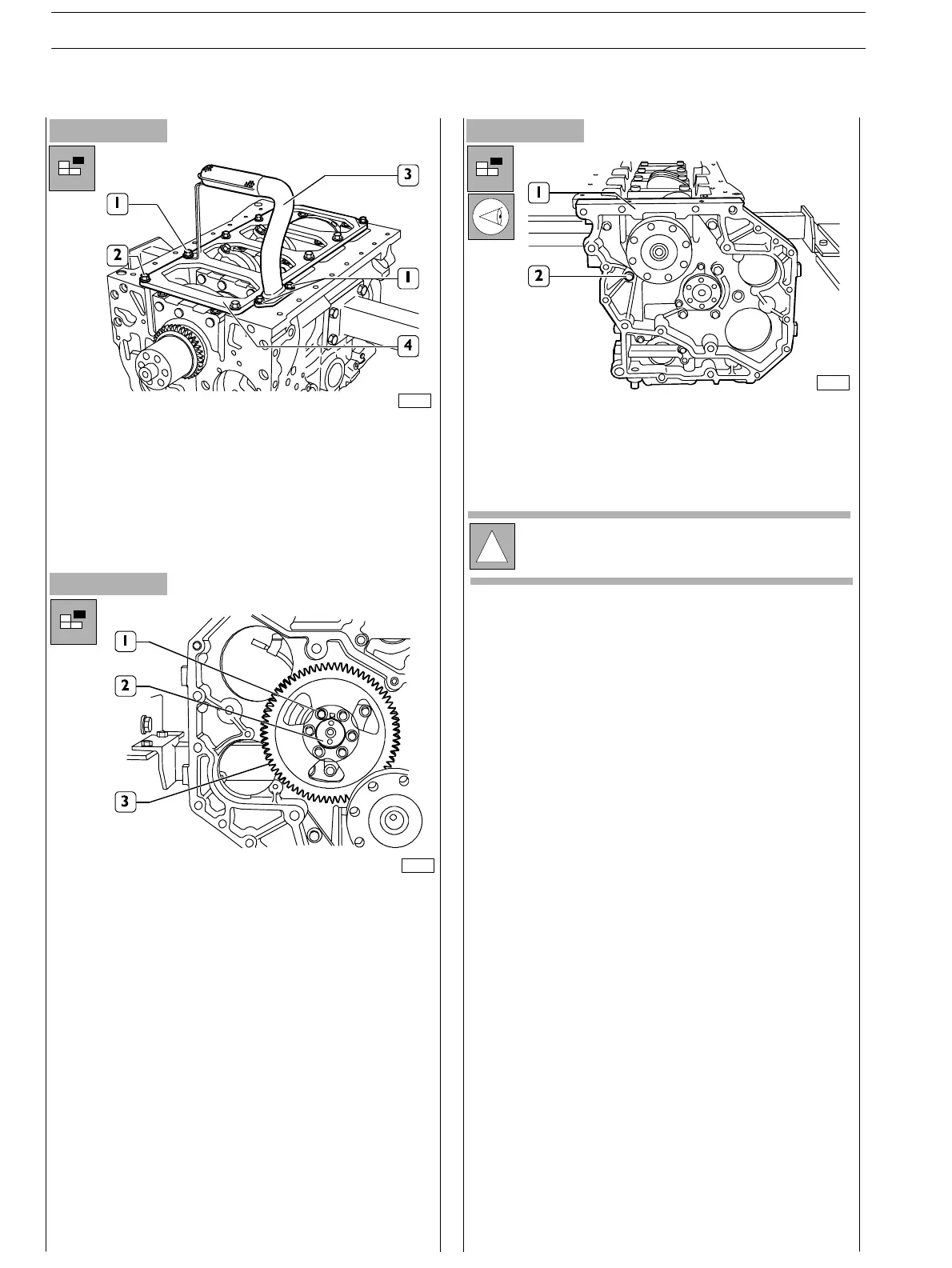

- Loosen the screws (1) and disassemble the oil suc t ion
rose pipe (3).
- Loosen the screws (2) and remove the stiffening plate
(4).
- Loosen the screws (1) and disassemble the gear from the
camshaft (2).
Figure 37
- Loosen the screws (2) and disassemble the timing
gearbox (1).
70155
70156
70157
!
Take note of the screw (2) assembly position, since
the screws have different length.
SECTION 3 − DUTY − INDUSTRIAL APPLICATION
18
E NG I NE S
ED. FEBUARY 2003
