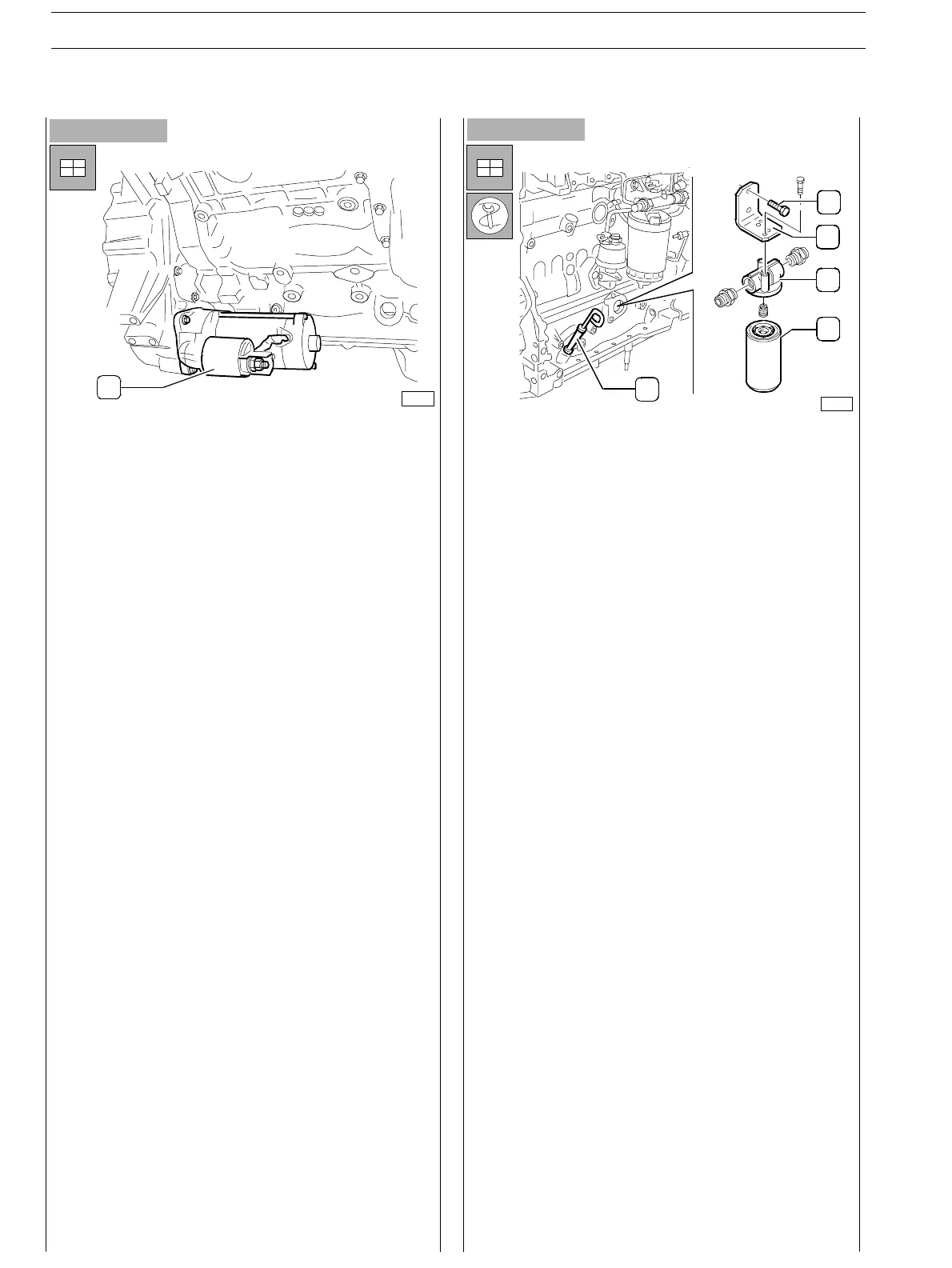

Figure 92
- Reassemble the starter; properly h old the starter (1) and
tighten the fixing screws (2) to the prescribed couple.
On the left hand side:
- Assemble oil filter (1) togeth er with bracket (for the
versions with engine oil filter not directly assembled to
the exchanger); tighten the screws (3) assembling the
bracket (4) including filter bearing (5).
Use acceptable tools to install the oil filter;
- Assemble oil level rod together with guide pipe (2).Fill up
engine oil.
- Install the engine on the machine (for installation
operations please apply to specific issue).
Figure 93
2
1
5
4
3
1
75717
75673
