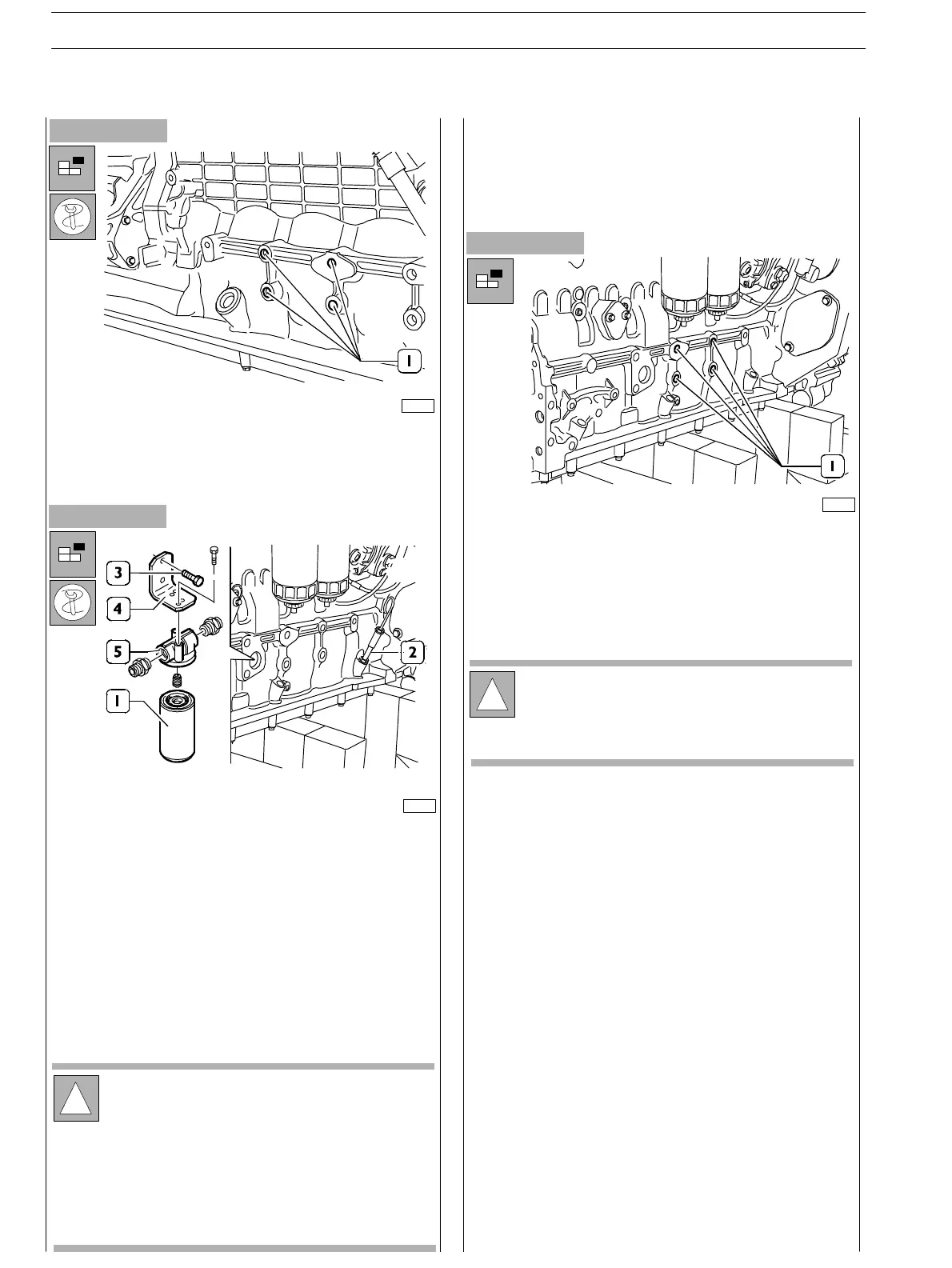

Figure 108
Figure 109
On the left hand side:
- Disassemble oil filter (1) an d brac ket as well (for version s
with engine oil filter not directly assembled on to t h e
exchanger);
Use acceptable tools to remove the oil filter;
Loosen the screws (3) removing the bracket (4)
together with the filter bearing (5).
- Remove the oil level rod together with guide pipe (2);
(loosen the guide pipe disassembling from the block);
properly pipe the screw−th readed port to avoid inlet of
foreign matters.
-
Assemble t h e s ec o n d br a c k et t h ro u g h o u t t h e
sc rew−t h readed po r t s (1).
-
Lift the engine using acceptable tools and put it on the
turning stand.
- Dr ain the oil through the cap underneath the plug.
!
Warning: the oil filter contains inside aprx. 1 kg. of
engine oil.
Provide tank with sufficient capacity t o con tain the
liquid.
Warn ing: avoid contact of engine oil with the skin: in
case of skin contamination r inse in running water.
Engine oil is highly pollutant: provide for disposal in
compliance with the law and regulations in forc e.
!
Warn ing: avoid contact of engine oil with the skin: in
case of skin contamination, rinse in running water.
Engine oil is highly pollutant: provide for disposal in
compliance with the law and regulations in forc e.
76147
76144
- Assemble the bracket using the four screw threaded ports (I).
Figure 110
