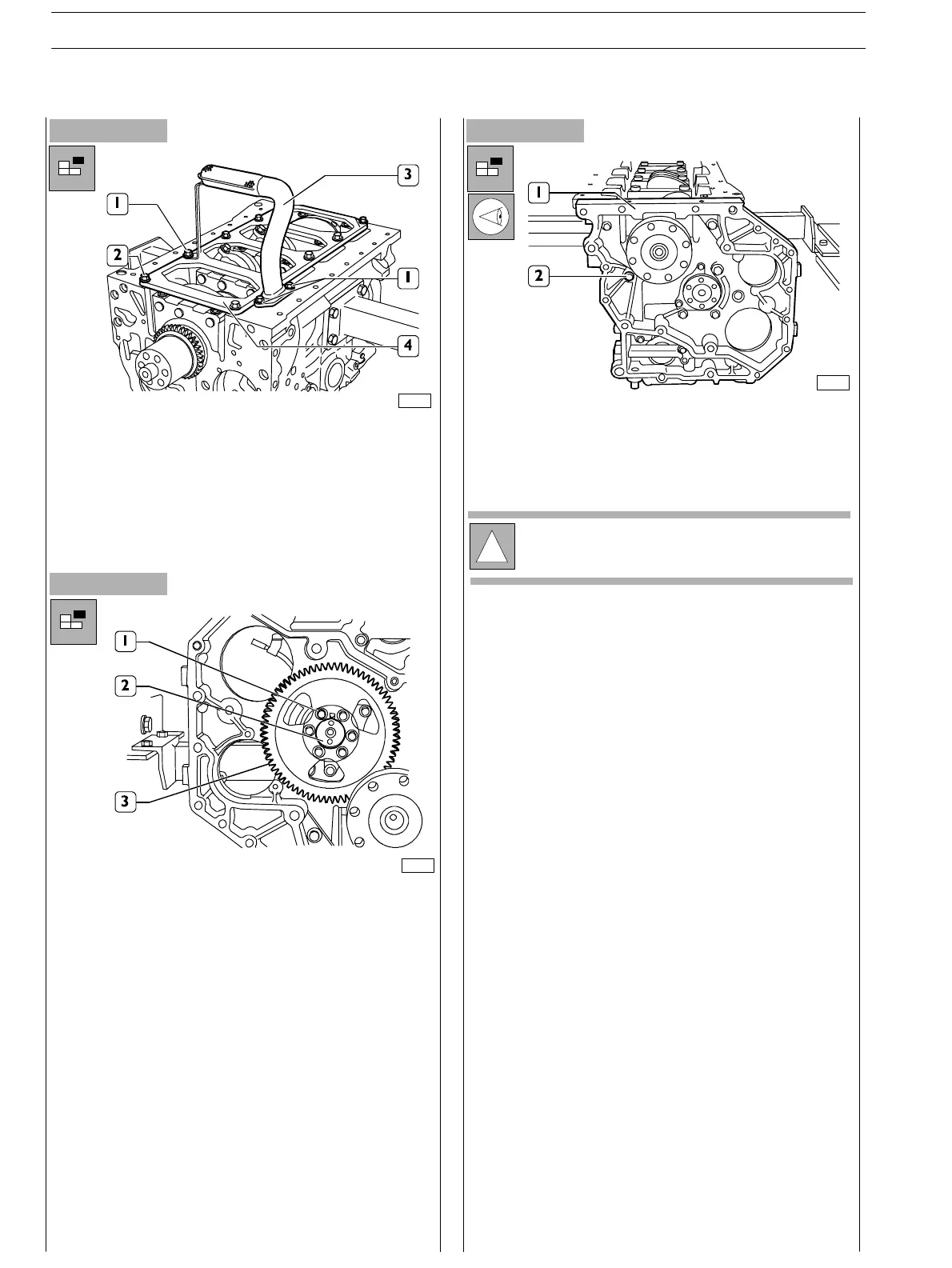

Figure 140
Figure 141
- Loosen the screws (1) and disassemble the oil suc t ion
rose pipe (3).
- Loosen the screws (2) and remove the stiffening plate
(4).
- Loosen the screws (1) and disassemble the gear from the
camshaft (2).
Figure 142
- Loosen the screws (2) and disassemble the timing
gearbox (1).
70155
70156
70157
!
Take note of the screw (2) assembly position, since
the screws have different length.
