INSTALLATION
RX DC X-RAY UNIT

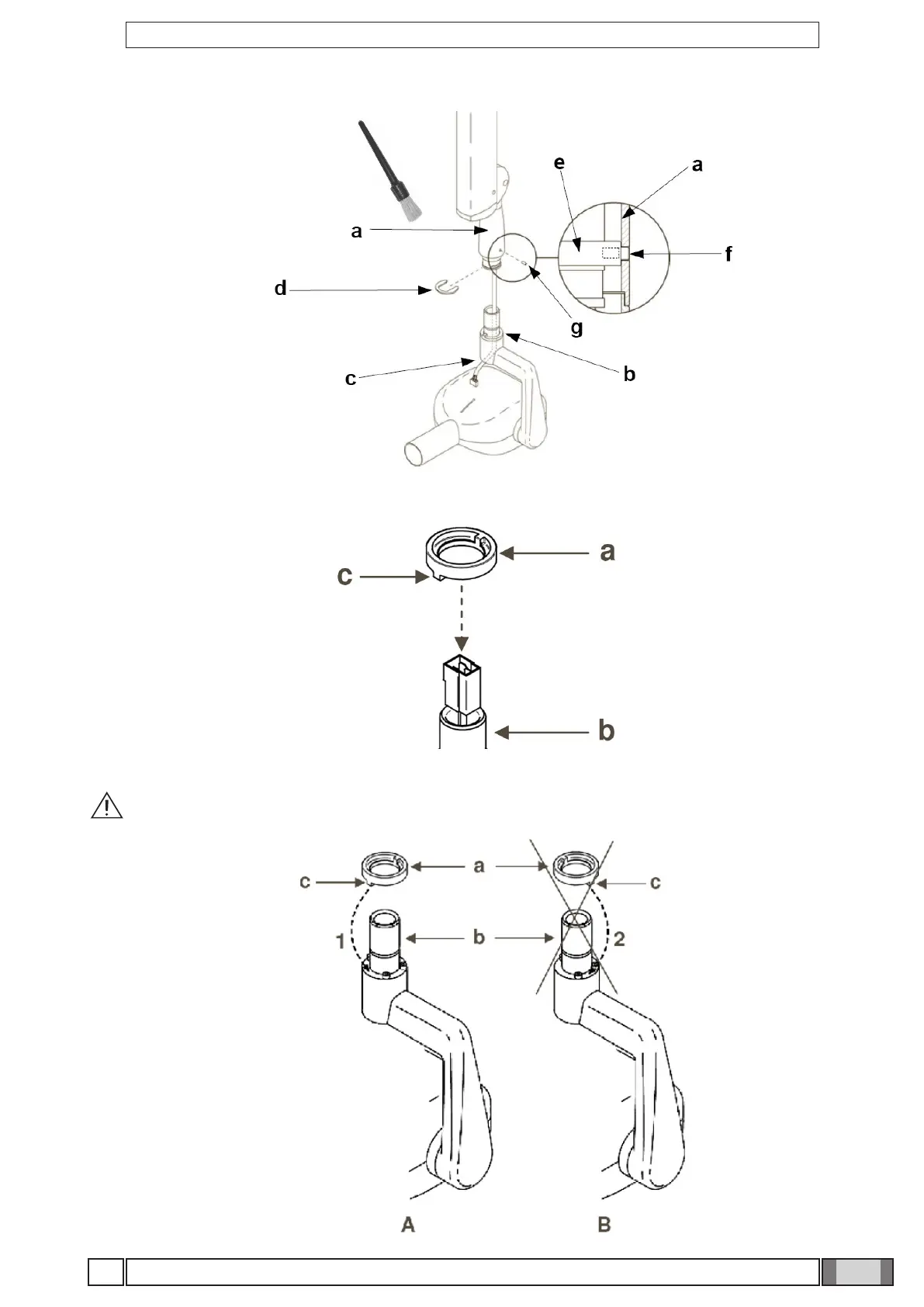

Figure J
Figure K
Figure L
• Take the washer (a) from the kit supplied and t it in the pin (b) with the protruding tooth (c) pointed towards the right-
hand head. (see g.K)
Position the protruding tooth (c) of the washer (a) in zone 1 of the pin (b). (see gure L)
WARNING! DO NOT position the protruding tooth (c) of the washer (a) in zone 2 of the pin (b).
