CenterLine VeriFast MicroView 1.0 User Manual

14
VeriFast
TM
MicroView 1.0 – User Manual – Version 1.9
5-port Single Device Controller and Connection Cables

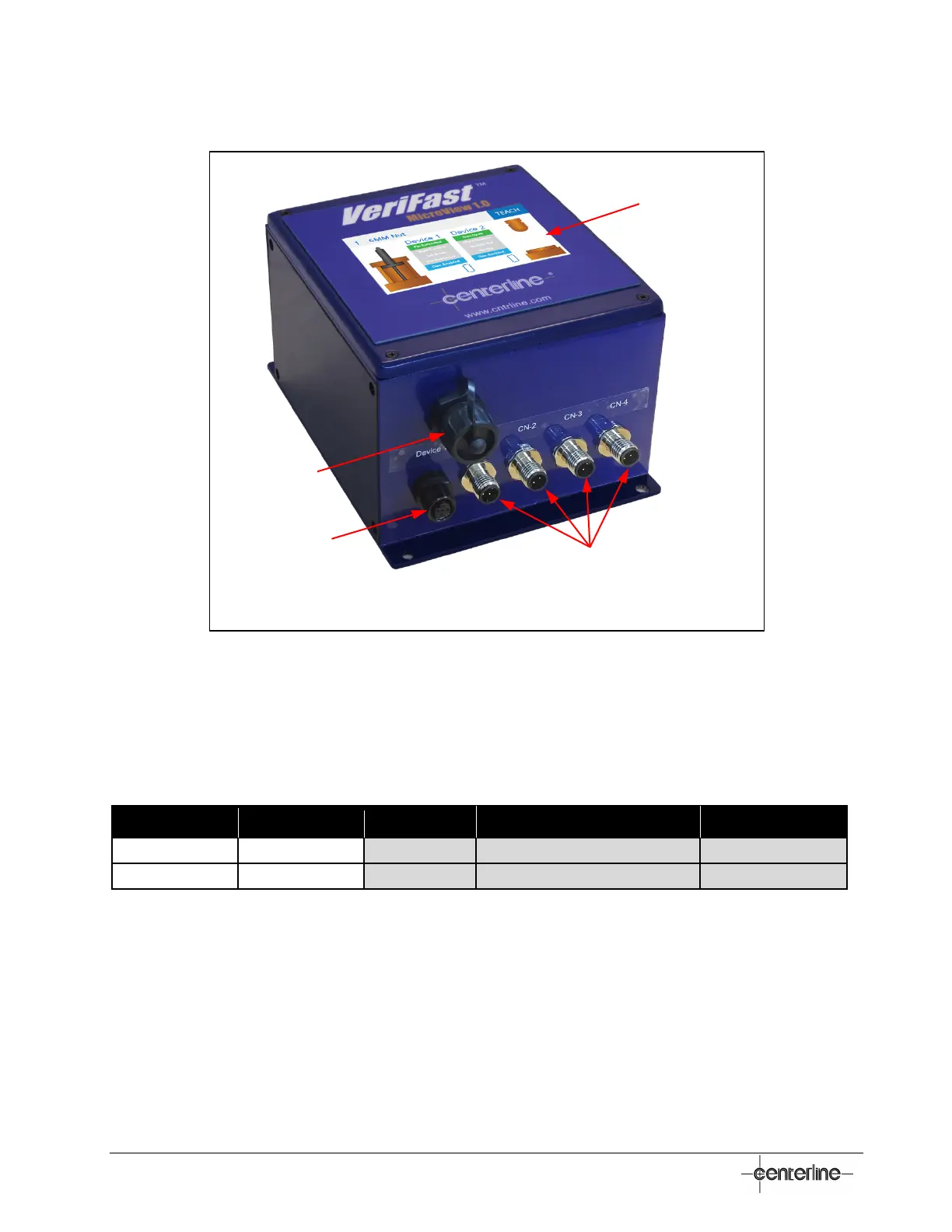

Figure 3 – Configuration of VeriFast™ MicroView 5-port Single Device Controller
For the cables required to connect the VeriFast™ MicroView 5-port Single Device Controller, see
Table 4 below.
Table 4 – Required connection cables for VeriFast™ MicroView 5-port Single Device
Type of Cable
Number of Pins
Male/Female
Connection to Port
Number of Cables
M12
5-Pin
Male
Device 1
1
M12
4-Pin
Male
CN-1, CN-2, CN-3, CN-4
4
HMI Display
Output Ports* (Digital)
Device Port* (Input)
USB Port
* For cable requirements, see Table 4 below.

CenterLine VeriFast MicroView 1.0 Specifications

General

Brand	CenterLine
Model	VeriFast MicroView 1.0
Category	Controller
Language	English
