22
VeriFast
TM
MicroView 1.0 User Manual Version 1.9

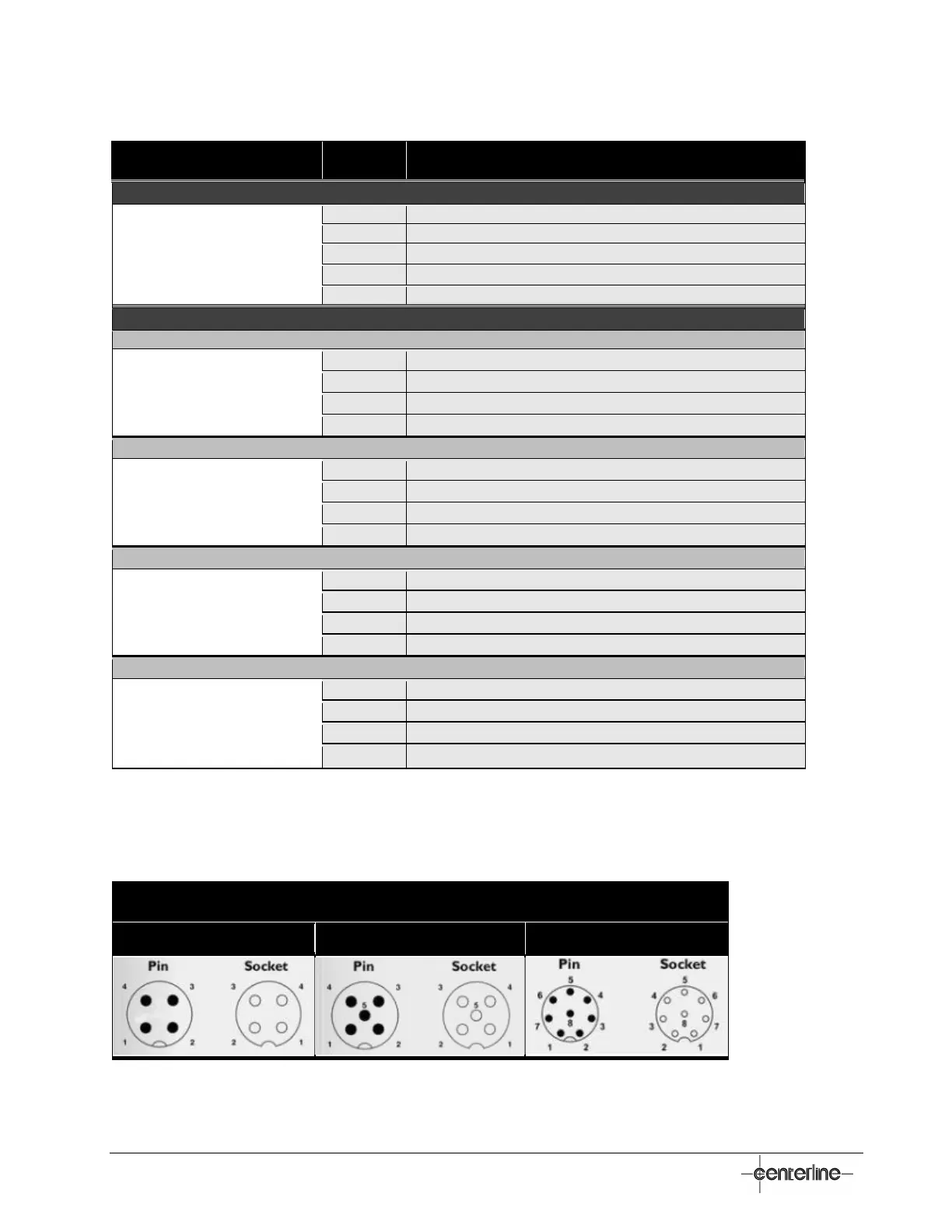

5-port Single Device Port Configuration
Port on MicroView /
Connected Device
Pin Function
Device 1 Port (Inputs)
VeriFast™ LVDT
1
Primary Coil 1
2
Primary Coil 2
3
Secondary Coil 1
4
Secondary Coil 2
5
Shield
Output Device Ports and Power / Schedule Port
CN-1
VeriFast™ LVDT
1
+24 VDC
2
P2
3
0 VDC
4
P1
CN-2
VeriFast™ LVDT
1
+24 VDC
2
P3
3
0 VDC
4
P4
CN-3
VeriFast™ LVDT
1
Not Connected
2
Schedule 2
3
Not Connected
4
Schedule 1
CN-4
VeriFast™ LVDT
1
Not Connected
2
Schedule 8
3
Not Connected
4
Schedule 4
Pinout Diagram for 4, 5, and 8 Pin Connectors
Table 6 – Pinout Diagram
Pin Configuration
4-Pin
5-Pin
8-Pin
