N) PPP : Not used.
O) KK : Not used.
P) LL : Not used.
Q) Ｑ : Not used.
R) MMM : High-pressure cylinder clomping fore setup.
S) NNN : Spare pressure setup.
T) OOO : Mold-closing pressure setup.
U) PPP : Spare pressure setup.
2.6.1.2. Using Second-Mold Pressure Function:
A) Setup spare high pressure
“
OOO
”
in Menu (04). This is the first clamping force
setup for closing mold.
B) Setup clamping force
“
TTT
”
in Menu (03) (or direct hydraulic clamping force setup
“
MMM
”
in Menu (04).). This is the second clamping force setup for closing mold.
C) In Menu (03)
“
spare function: k
”
, select
‘
open
’
. There are two mold pressure
functions in auto mode.
2.6.1.3. Motion Descriptions:
A) In auto mode, close mold to high pressure closing mold distance. When pressure
sensor shows oil pressure setting
“
OOObar
”
, the first closing mold is finished.
B) Inject until injection distance is finished, and then change the plasticizing
delay timing.
C) When the plasticizing delay timing is finished, change to the second high pressure
closing mold distance. When pressure sensor shows oil pressure setting
“
TTT
”
of clamping force setup in Menu (04), the second mold pressure function is
finished.
D) Barrel plasticizing distance, go back to standard motion.
Mold-
closing
1
st
clamping
force
Carriage
forward
Injection
Fill Hold
Plasticizing
delay
2
nd
clamping
force
Plasticizi
ng
carriage
backward
Mold-
closin
g
Ejector-
forward
Ejector
backwar
d

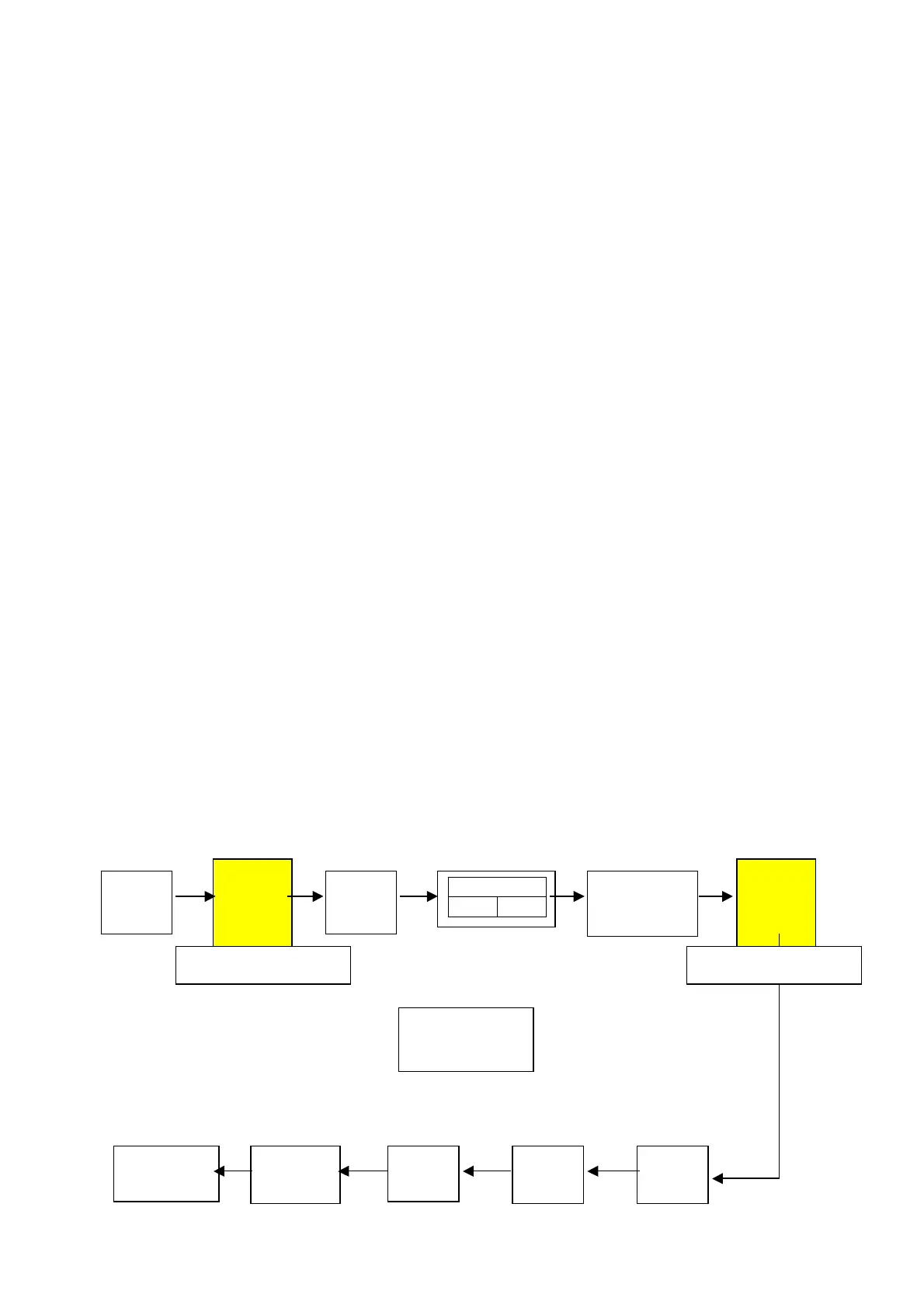

Second-mold
Pressure procedure
Chart (04) “OOO” setup Chart (03) “TTT” setup.
