2.23 Temperature Timing Setup

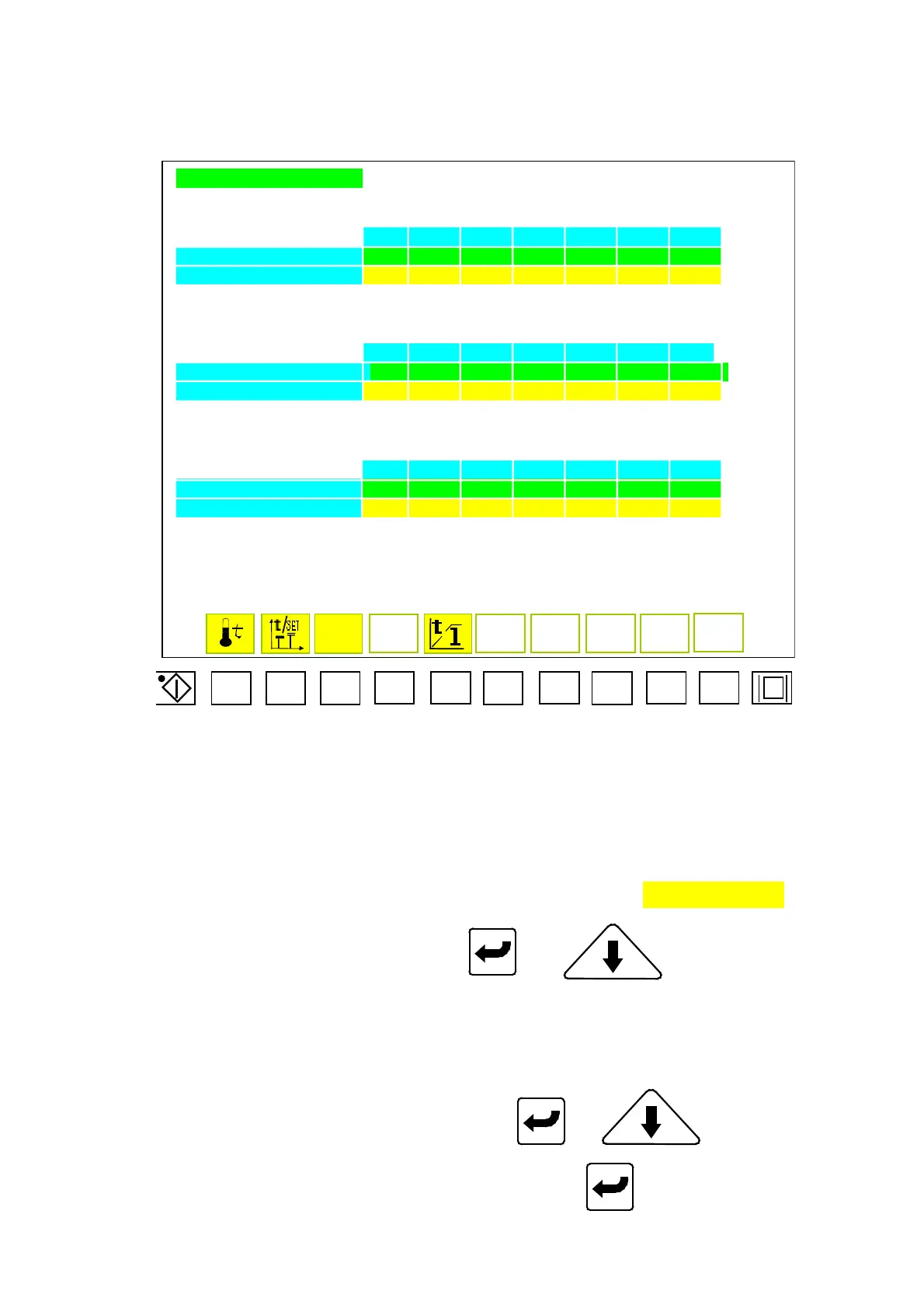

WEEKLY TIMER SETTING 1999/04/07 11:25 三
MON TUE WEN THU FRI SAT SUN
BARREL 07:20 08:00 07:30 07:40 07:50 08:00 08:10
MODE Ａ Ｂ Ｃ Ｄ Ｅ Ｆ Ｇ
MON TUE WEN THU FRI SAT SUN
MOLD TEMP. CONTROLLER 07:20 08:00 07:30 07:40 07:50 08:00 08:10
MODE Ｈ Ｉ Ｊ Ｋ Ｌ Ｍ Ｎ
MON TUE WEN THU FRI SAT SUN
DRYER 07:20 08:00 07:30 07:40 07:50 08:00 08:10
MODE Ｏ Ｐ Ｑ Ｒ Ｓ Ｔ Ｕ
F1 F2 F3 F4 F5 F6 F7 F8 F9 F10
Menu 23
The diagram is temperature timing setup, applied method are shown below:
2.23.1 Adding temperature of barrel are shown as follows: (optional)
In menu 20 function selection
“
ZZZZZZZZZZZ:
”
, to select Close or Timing then goes
to menu 22 to set parameter and push
and
, next to select
“
close
”
and then select
“
open
”
to complete a correction. That will heat the barrel.
2.23.2 Adding temperature of mold are shown as follows:
In menu 22, move cursor to set parameter, next push and
to set selection switch,
the selection switch is from “close” to “open”, then push to complete a correction. That
