Chen Hsong CDC-2000 - Mold Thickness and Clamping Force Setup

1 Operational Manual
2.11 Mold Thickness and Clamping Force Setup
2.11.1 Mold Thickness and Clamping Force Setup for Toggle Clamping

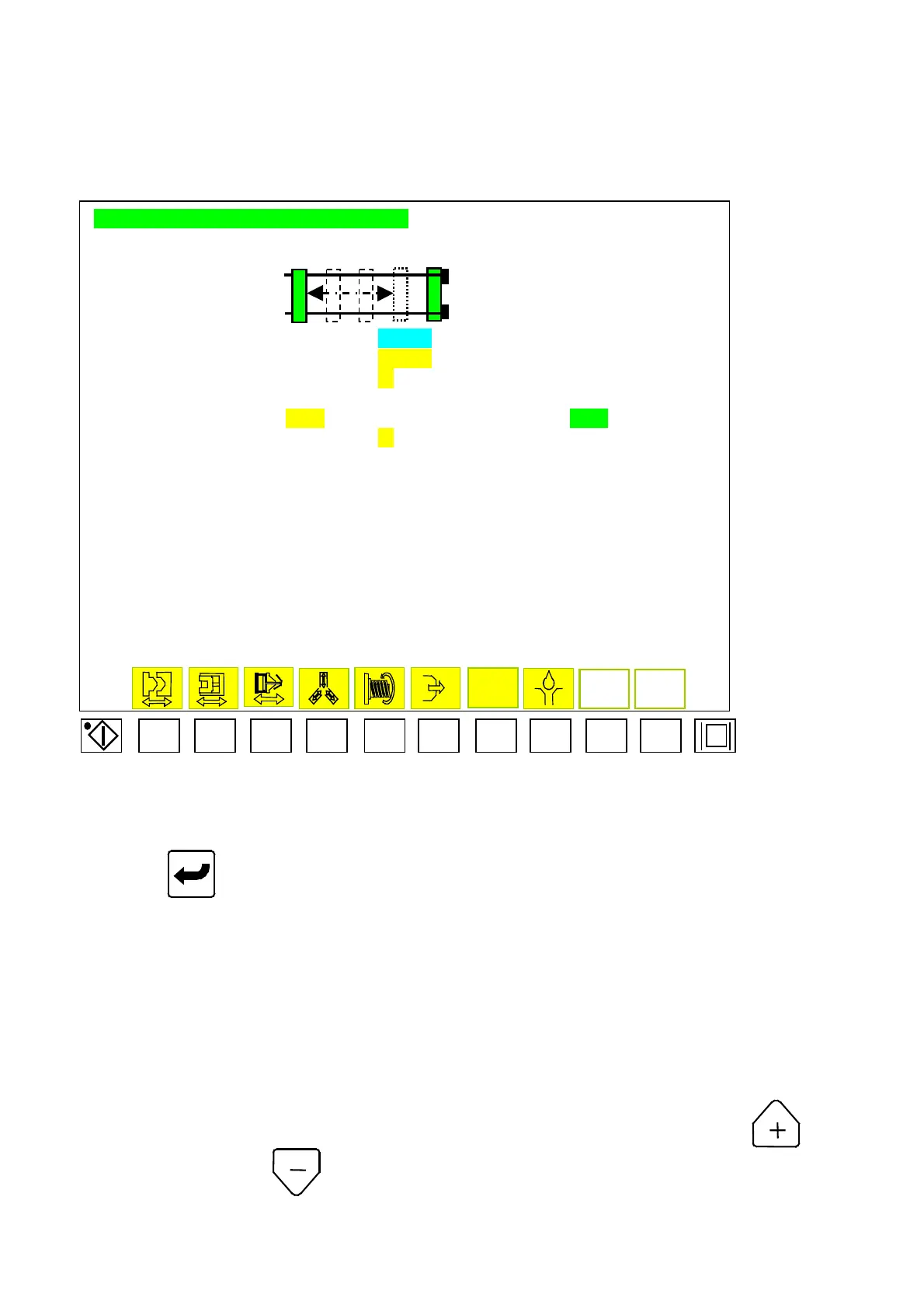

MOLD THICKNESS ADJUSTMENT SETTING
AAAAAAAAAAAAAAAA
BBBBBBBB CCCCCCCC
EXIST MOLD HEIGHT :
PPPP.Pmm
INPUT MOLD THICKNESS : DDDD.Dmm
AUTO. MOLD THICKNESS ADJUSTMENT :
Ｌ
CLAMPING FORCE SETTING
EEEEE TONS LOW-PR. CLAMPING POS. AT KKKKKp
AUTO. CLAMPING FORCE SETTING :
Ｍ
Menu 09
F1 F2 F3 F4 F5 F6 F7 F8 F9 F10
2.11.1.1 Move cursor to set parameter for mold adjustment. Key in desired digits and press
to complete a correction. Code descriptions for Menu (09) are shown below:
A) AAAAAAAAAAAAAAA: Display of current mold height.
“
Ｌ
”
select
“
open
“
to
”
automatic thickness adjustment
“
and
“
Ｍ
”
select
“
open
“
to
“
automatic
clamping force adjustment.
B) BBBBBBBB: Display
“
mold-adjustment backward
“
.
C) CCCCCCCC: Display
“
mold-adjustment forward
“
.
D) PPPP.P: Display of current mold height.
E) DDDD.D: Set up for mold dimension.
F) Ｌ:Function selection for mold thickness auto adjustment. Press
to open
and press
to close。
G) EEEEE :Setup of clamping force 。
04/08/13
50
