2.2. Manual Operation Setting

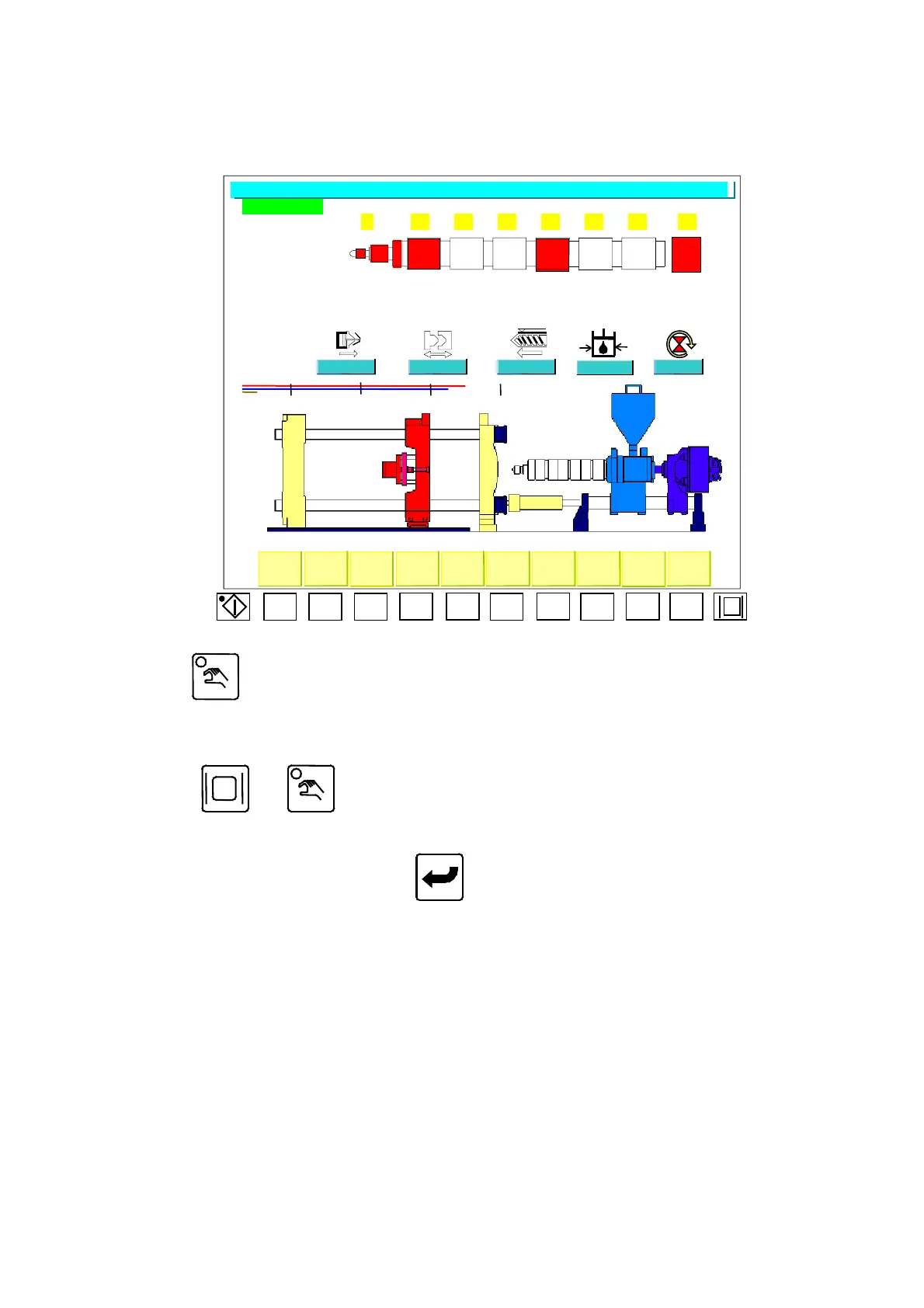

Manual monitor chart 01/31 11:25
Mold no. nozzle T1 T2 T3 T4 T5 T6 Tc
YYYYYYYY
AA% BBB CCC DDD EEE FFF GGG HHH
aaaaaaa
Sbb Pcc Bdd bbb ccc ddd eee fff ggg hhh
EEEE.Emm
Total products : WWWWW
Good products : XXXXX
OOOO.Omm PPPP.Pmm QQQQ.Qmm SSSkg/cm
2
RRRrpm
Mold c ejector inject. plast. Temp. produ. funct. Time prompt cycle
Mold o screw settin
g
count. Selec. Settin
g
settin
g
monitor
Chart 01A
F1 F2 F3
F4 F5
F6
F7
F8
F9 F10
Press
button to show manual operational setting Menu(01)，the LED indicator
on the upper left is on. When the power is on, the system is in manual mode and
doesn
’
t need to use this button. In manual mode, if the Menu is not like this one,
press
or to go to Menu (01).
Move the cursor to the parameter that you want to change, adjust the parameter
by numerical keys, then push key to finish the correction. The setting
descriptions of
“
mould open & close
”
Menu (01) are shown below:
A)
“
YYYYYYYY
”
: Display the contents of mold no.
B)
“
AA
”
: Proportional nozzle heating setting.
C)
“
BBB
”
: Temperature setting of barrel sector 1.
D)
“
bbb
”
:The practical temperature of barrel sector 1.
E)
“
CCC
”
: Temperature setting of barrel sector 2.
F)
“
ccc
”
:The practical temperature of barrel sector 2.
G)
“
DDD
”
: Temperature setting of barrel sector 3.
H)
“
ddd
”
:The practical temperature of barrel sector 3.
I)
“
EEE
”
: Temperature setting of barrel sector 4.
