Chen Hsong CDC-2000 - Setup for Mold Closing and Opening

CDC-2000
操作手冊
Operational Manual
J)
“
eee
”
:The practical temperature of barrel sector 4.
K)
“
FFF
”
: Temperature setting of barrel sector 5.
L)
“
fff
”
:The practical temperature of barrel sector 5.
M)
“
GGG
”
: Temperature setting of barrel sector 6.
N)
“
ggg
”
:The practical temperature of barrel sector 6.
O)
“
HHH
”
: The backup temperature setting.
P)
“
hhh
”
: The practical backup temperature display.
Q)
“
WWWWW
”
: Display the volume of product.
R)
“
XXXXX
”
: Display the volume of good product.
S)
“
OOOO.O
”
: Display the present location of ejector.
T)
“
PPPP.P
”
: Display the present location of clamping.
U)
“
QQQQ.Q
”
: Display the present location of ejection.
V)
“
RRR
”
: Display the speed of screw rotation in plasticizing.
W)
“
SSS
”
: Display the present hydraulic pressure.
2.3. Auto Operation Setting

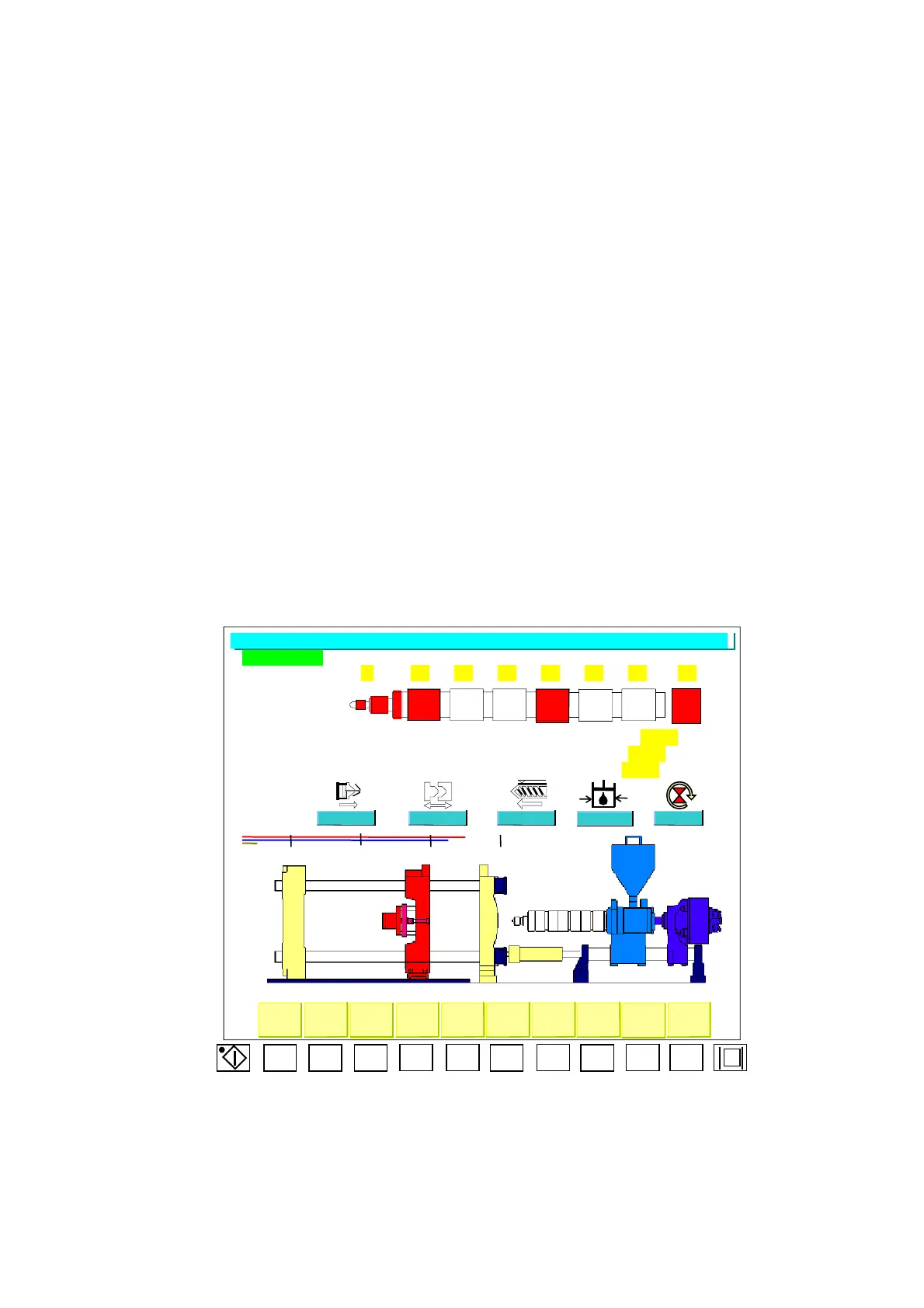

Auto display chart 01/31 11:25
Mold no. nozzle T1 T2 T3 T4 T5 T6 Tc
YYYYYYYY
AA% BBB CCC DDD EEE FFF GGG HHH
aaaaaaa
Sbb Pcc Bdd bbb ccc ddd eee fff ggg hhh
EEEE.Emm
Total products : WWWWW injection time :
KKKK.K
Good products : XXXXX cooling time : LLLL.L
Cycle time : MMMM.M middle time :
NNNN.N
OOOO.Omm PPPP.Pmm QQQQ.Qmm SSSkg/cm
2
RRRrpm
Mold c ejector inject. plast. Temp. product funct. Time prompt cycle
Mold o screw settin
g
count. Selec. Settin
g
settin
g
monitor
Chart 02A
F1 F2 F3
F4 F5
F6
F7
F8
F9 F10
