Chen Hsong CDC-2000 - Plasticizing and Feeding Setup

1 Operational Manual
2.14 Plasticizing And Feeding Setup

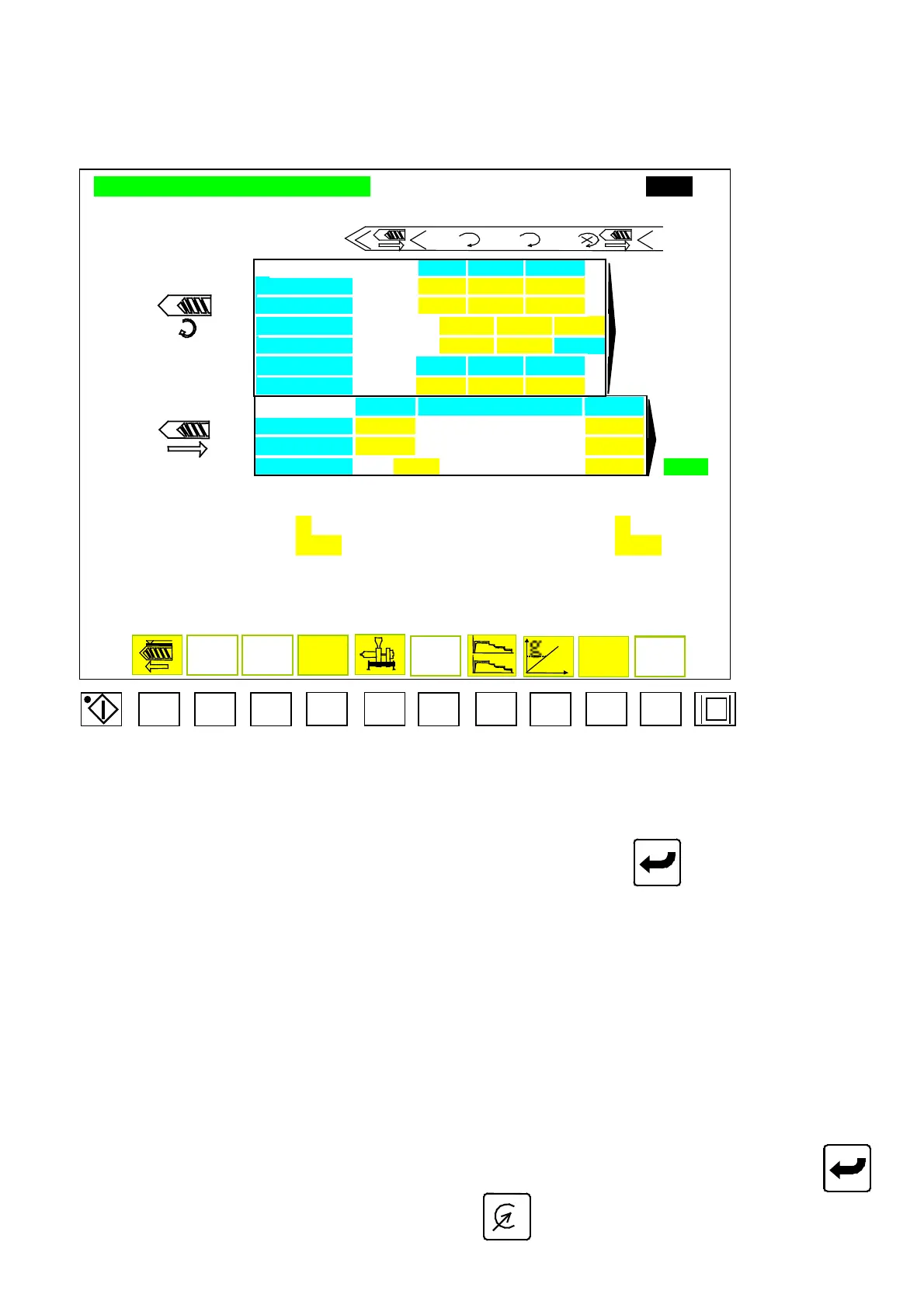

FEEDING & DECOMPRESSION SETTING ????.?mm
CUSHION : uuuu.umm DOSING RPM : vvvv RPM DOSING TIME : wwww.wSEC
SPEED % DD II NN
PRESSURE % EE JJ OO
POSITOION mm GGG.G LLL.L QQQ.Q
PERCENT % HH MM 100%
WEIGHT g kkkk.k llll.l mmmm.m
BACK-PR.% FF KK PP
BEFORE AFTER
SPEED % AA RR
PRESSURE % BB SS
POSITION mm CCC.C +TT.T = UUU.U
BOOST FEEDING :
ｄ FEEDING AT OPENING : ｅ
FEEDING DELAY TIME :
VVVV.VSEC COOLING TIME WWWW.WSEC
SET
Menu 14
F1 F2 F3
F4 F5
F6
F7
F8
F9 F10
1 2 3
Move cursor to set parameter for feeding. Key in desired digits and press to complete a correction.
Code descriptions for Menu (14) feeding are as below:
A) uuuu.u: Display position of injection finished.
B) vvvv : Display speed when plasticizing.
C) wwww.w : Display time of feeding.
D) AA: Speed setup for decompression before feeding.
E) BB: Pressure setup for decompression before feeding.
F) CCC.C: End-position setup for decompression before feeding.
G) DD: Speed setup for feeding 1.
H) EE: Pressure setup for feeding 1.
I) GGG.G: End-position setup for feeding 1. Key in desired digits and press
to complete a correction. If press
after digit is keyed in, the set value
