2.9. Mold Screw Setup

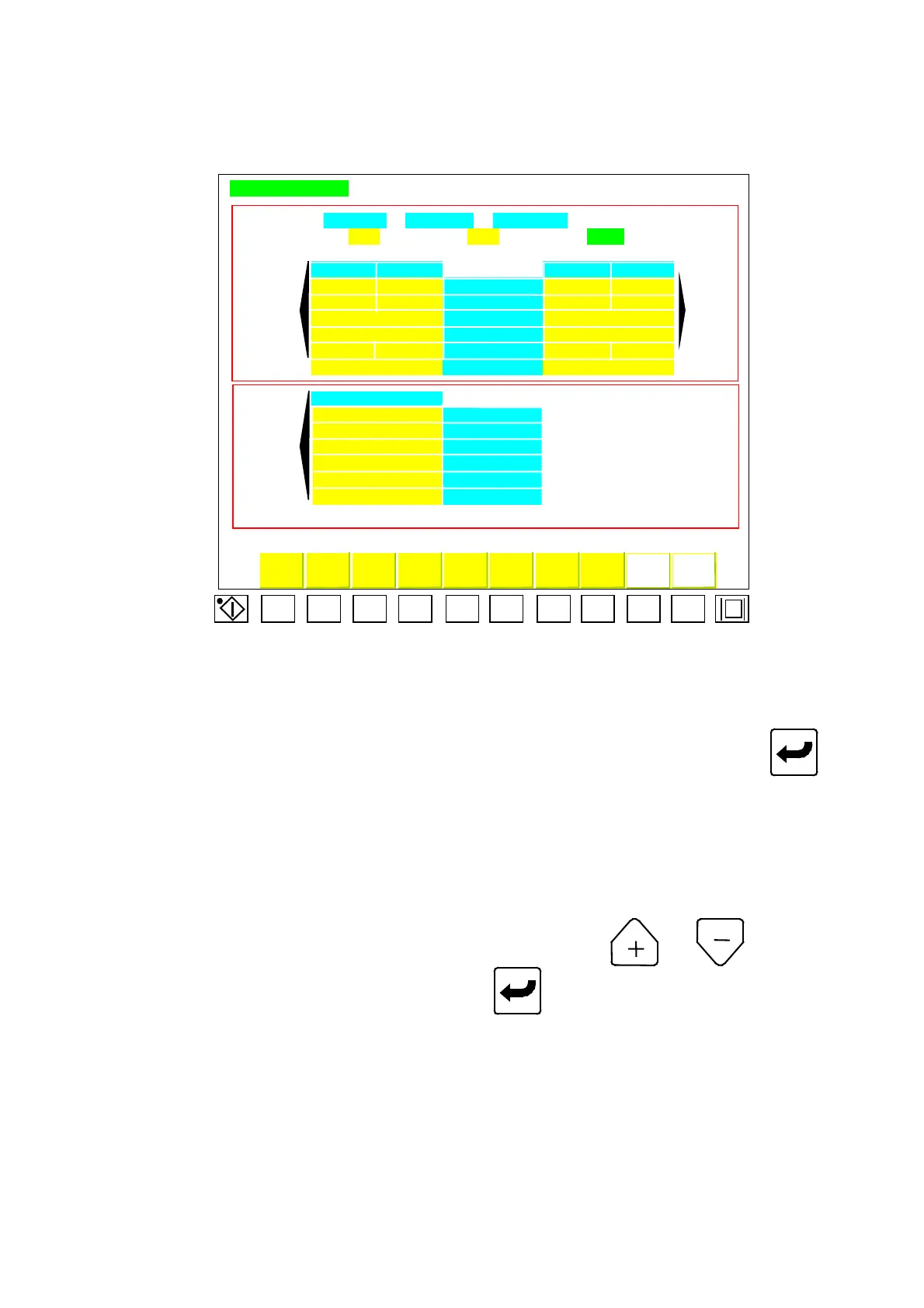

Unscrew setup
Fast-turns + slow turns = Total Turns
EEEE FFFF GGGGG
Out-slow out-fast In-slow In-fast
RR OO speed % HH KK
SS PP pressure % II LL
CCCCCCCCCCCCCC mode AAAAAAAAAAAAAA
DDDD.D position BBBB.B
TTT.T QQQ.Q time sec JJJ.J MMM.M
UUUUUU Feedback NNNNNN
Core 3 out
XX speed %
YY pressure %
VVVVVVVVVVVV mode
ZZZ.Z time sec
aaaa count
bbbbbb feedback
mo-clos hi-pre.eject. co-pull air-bl modul. Lubri.
Mo-o
p
ens
p
l.nuts
Chart 07
F1 F2 F3 F4 F5 F6 F7 F8 F9 F10
2.9.1. Mold Screw Forward Setup
Move cursor to set parameter of Mold Screw in. Key in desired digits and press to
complete the correction. Code description (07) are listed below:
A) HH: Speed setup for Mold Screw in/fast.
B) II : Pressure setup for Mold Screw in/fast.
C) KK : Speed setup for Mold Screw in/slow.
D) LL : Pressure setup for Mold Screw in/slow
E) AAAAAAAAAA :Mode options for Mold Screw in. Press
or to select one
of four modes shown below and press to complete a correction. Code
descriptions for function selection are as follows:
F) 1.Mold Screw In Off.
G) 2.Before Mold-Closing: Mold Screw in before molds close.
H) 3.During Mold-Closing: Mold Screw in during mold closing at
“
BBBB.B
”
wet position.
I) 4.After Mold-Closing: Mold Screw in after modes close.
J) BBBB.B :Unscrew-in when molds close at this position.
K) JJJ.J : Time setup for Mold Screw in/fast. Program timer code
“
Tim 16
”
。
