H) LL: Rotation nuts open-pressure setup.
I) Ｑ :Function selection setup for the spring mold. Press for
“
opening
”
and
for
“
closing
”
.

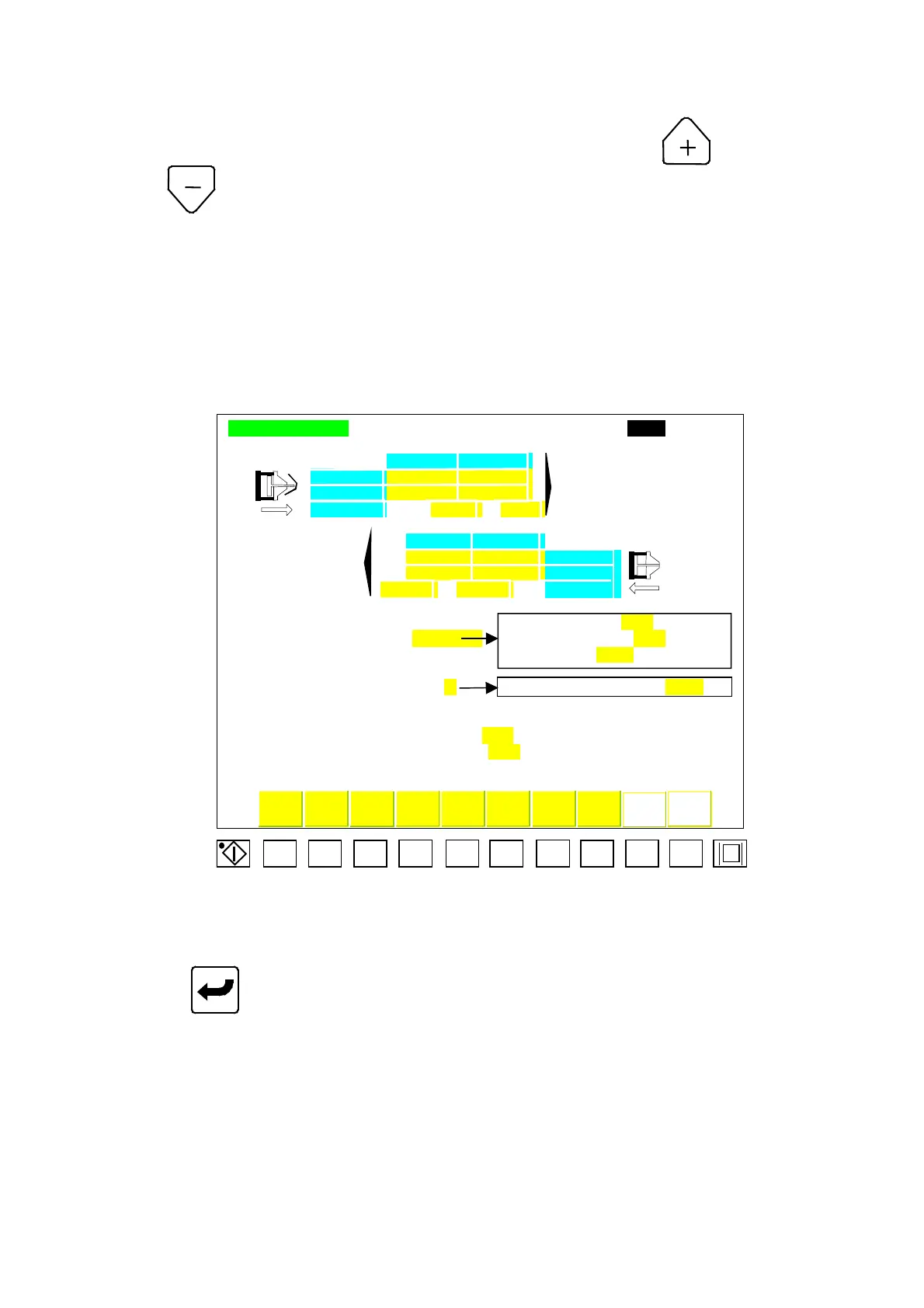

2.7. Ejector Setup
Ejector setup ????.?mm
Forward1 forward2
velocity % AA DD
pressure % BB EE
position mm CCC.C FFF.F
backward2 backward1
JJ GG velocity %
KK HH pressure %
LLL.L III.I position mm
Ejector number : NNNNN times
Ejector function selection: MMMMMMMMMMM vibrated ejector : PPPPP times
delay time : OOOO.Osec.
Eject-out function selection : Ｔ mold-opening position : QQQQ.Qmm
Ejector-forward spare position setup : RRR.Rmm
Ejector-backward spare position setup : SSS.Smm
Mo-clos hi-pre. Co-pull unscr. Air-bl modul. Lubri.
Mo-o
p
ens
p
l.nuts
F1 F2 F3
F4 F5
F6
F7
F8
F9 F10
Chart 05
2.7.1. Move cursor to desired parameter for mold-closing. Key in your desired digits and
press to complete a correction.
Code descriptions for Menu (05) are as follows:
A) AA: Speed setup for ejector forward 1.
B) BB: Pressure setup for ejector forward 1.
C) CCC.C: End-position setup for ejector forward 1.
D) DD: Speed setup for ejector forward 2.
E) EE: Pressure setup for ejector forward 2.
F) FFF.F: End-position setup for ejector forward 2.
