2.6.3.2. Move the cursor to the desired parameter for high-pressure cylinder. Key in your
desired digits and press to complete the correction.
Code descriptions for Menu (04) are as follows:
A) AA: High-pressure cylinder low-speed mold-closing velocity setup.
B) BB: High-pressure cylinder low-speed clamping pressure setup.
C) CC: High-pressure cylinder mold-closing velocity setup.
D) DD: High-pressure cylinder mold-closing pressure setup.
E) MMM: Spare clamping fore setup.
F) NNN: Spare hydraulic pressure setup.
G) II: Rotation nuts close-velocity setup.
H) JJ: Rotation nuts close-pressure setup.

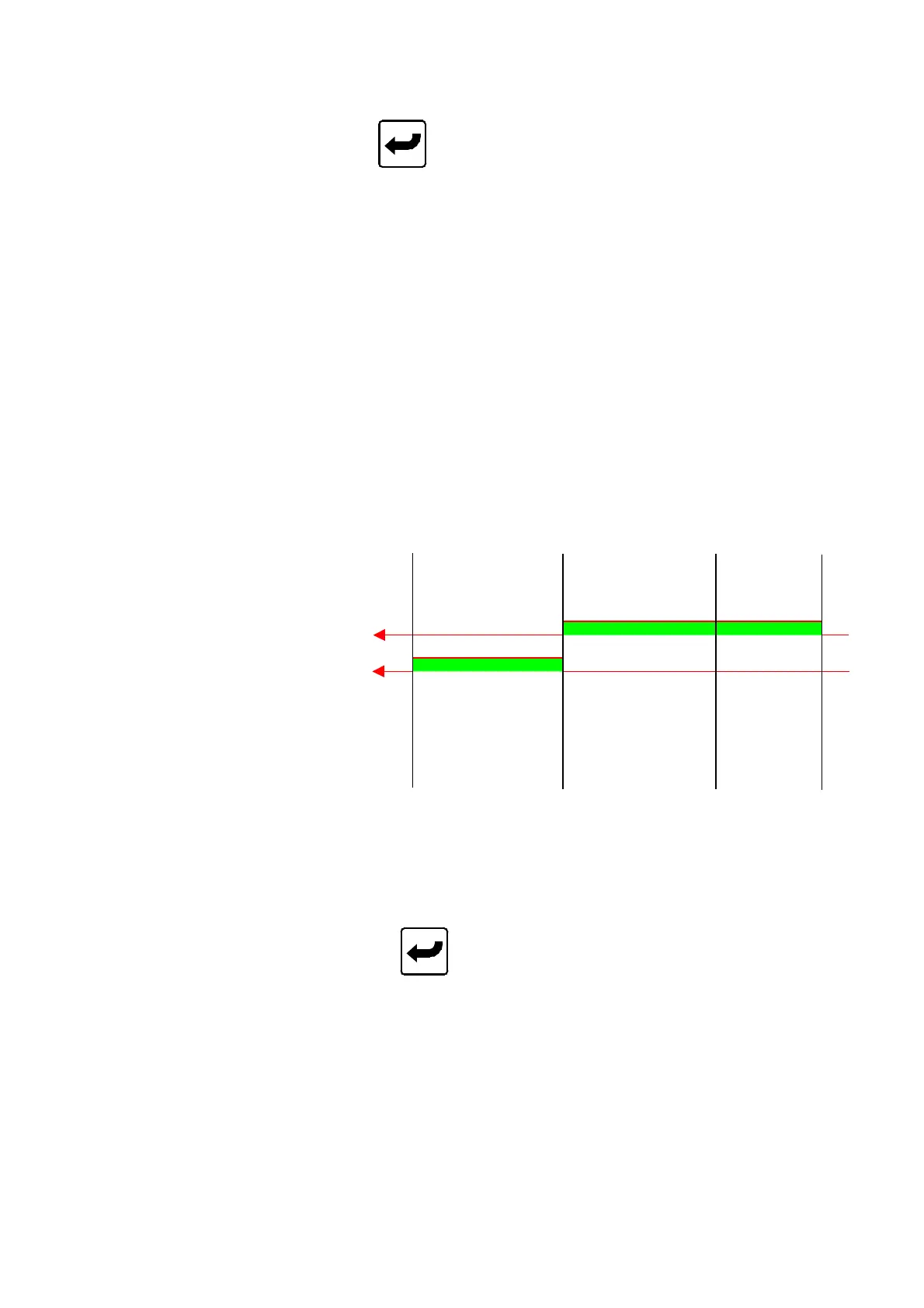

2.6.3.3. Sequence Diagram of High-Pressure Cylinder Mold-Opening and Rotation Nuts
Opening.
Mold-opening distance rotation nuts open mold-opening decelerated
-pressure
high-pressure cylinder
rotation nuts
velocity setup
KK GG EE
ressure setup L
HH FF
end-position setup
2.6.3.4. Move the cursor to the desired parameter for high-pressure cylinder. Key in your
desired digits and press to complete the correction.
Code descriptions for Menu (04) are as follows:
A) EE: High-pressure cylinder decelerated-pressure velocity setup.
B) FF: High-pressure cylinder decelerated-pressure pressure setup.
C) GG: High-pressure cylinder mold-opening velocity setup.
D) HH: High-pressure cylinder mold-opening pressure setup.
E) OOO: Spare hydraulic pressure setup.
F) PPP: Spare hydraulic pressure setup.
G) KK: Rotation nuts open-velocity setup.
