:function selection setup for the spring mold. Press to “open” and to
“close”.

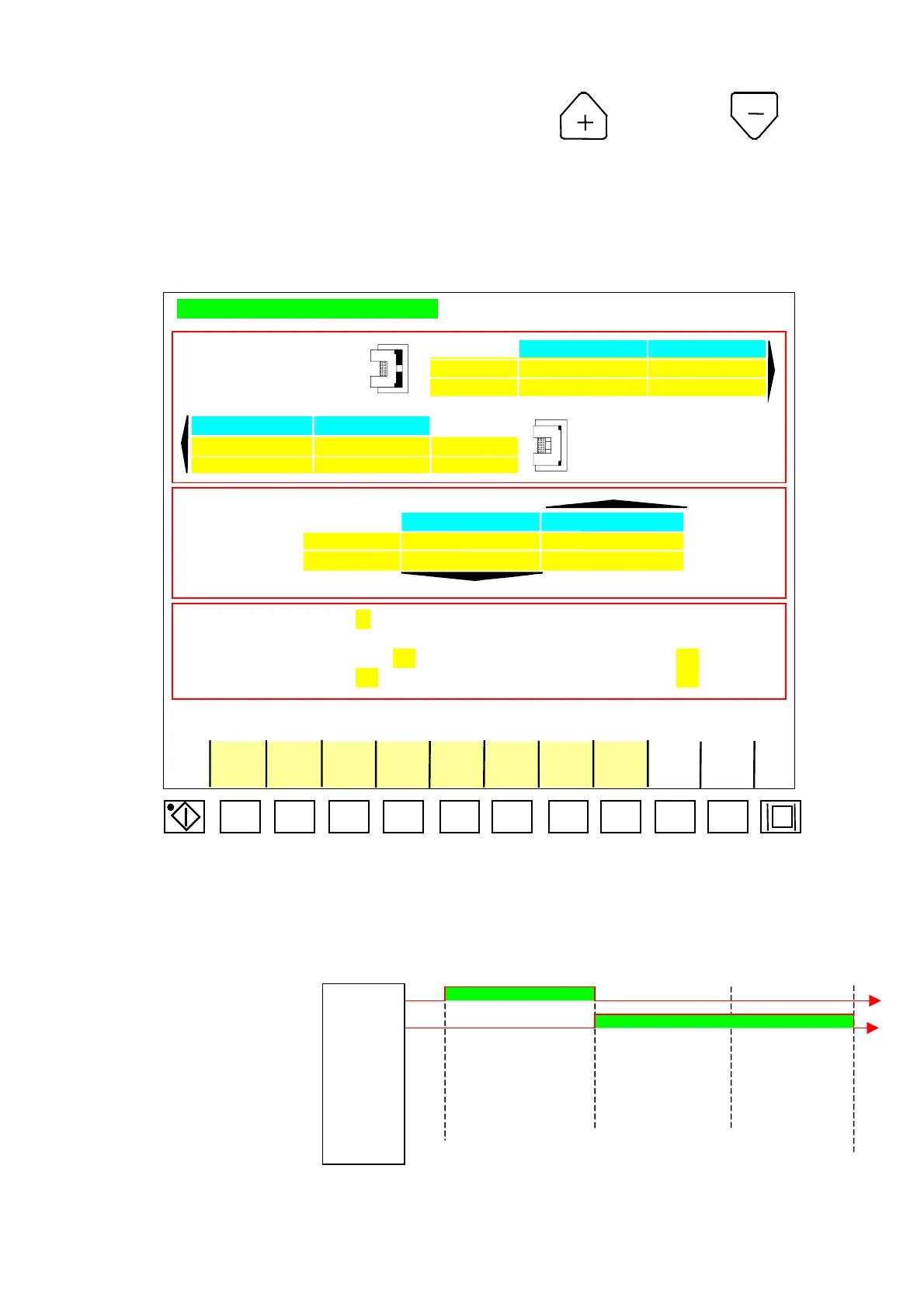

2.6.3. High Pressure Cylinder and Rotation Nuts Setup for Hybrid Type Machine.
High-pressure tank split nuts setup
Slow-speed split nuts open
velocity % AA CC
pressure % BB DD
mold-opening decel.-pressure
GG EE velocity %
HH FF pressure %
split nuts closing split nuts opening
velocity % II KK
pressure % JJ LL
spring mold function :
Ｑ
spare mold pressure setup :
MMMTon spare pressure setup : NNNbar
spare pressure setup :
OOObar spare pressure setup : PPPbar
Mo-clos eject. Co-pull unscr. Air-bl modul. Lubri.
Mo-o
p
en
Chart 04
F1 F2 F3
F4 F5
F6
F7
F8
F9 F10
2.6.3.1. Sequence Diagram of High-Pressure Cylinder Mold-Closing and Rotation Nuts.
Mold- closing distance rotation nuts close low-speed high-pressure
Mold-closing mold-closing
Rotation nuts
High-pressure cylinder
Velocity setup
II AA CC
Pressure setup
JJ BB DD
End-position setup
Fast
mold-
closing
p
lease
refer to
chart(03)
