Chen Hsong CDC-2000 - Temperature Curve of T2

1 Operational Manual
: White line is to indicate the practical temperature.
2.25 Temperature Curve of T2
T2 TEMP. CURVE SET : HIGH : LOW :
500
400
300
200
100
F1 F2 F3
F4 F5
F6
F7
F8
F9 F10
Menu 25

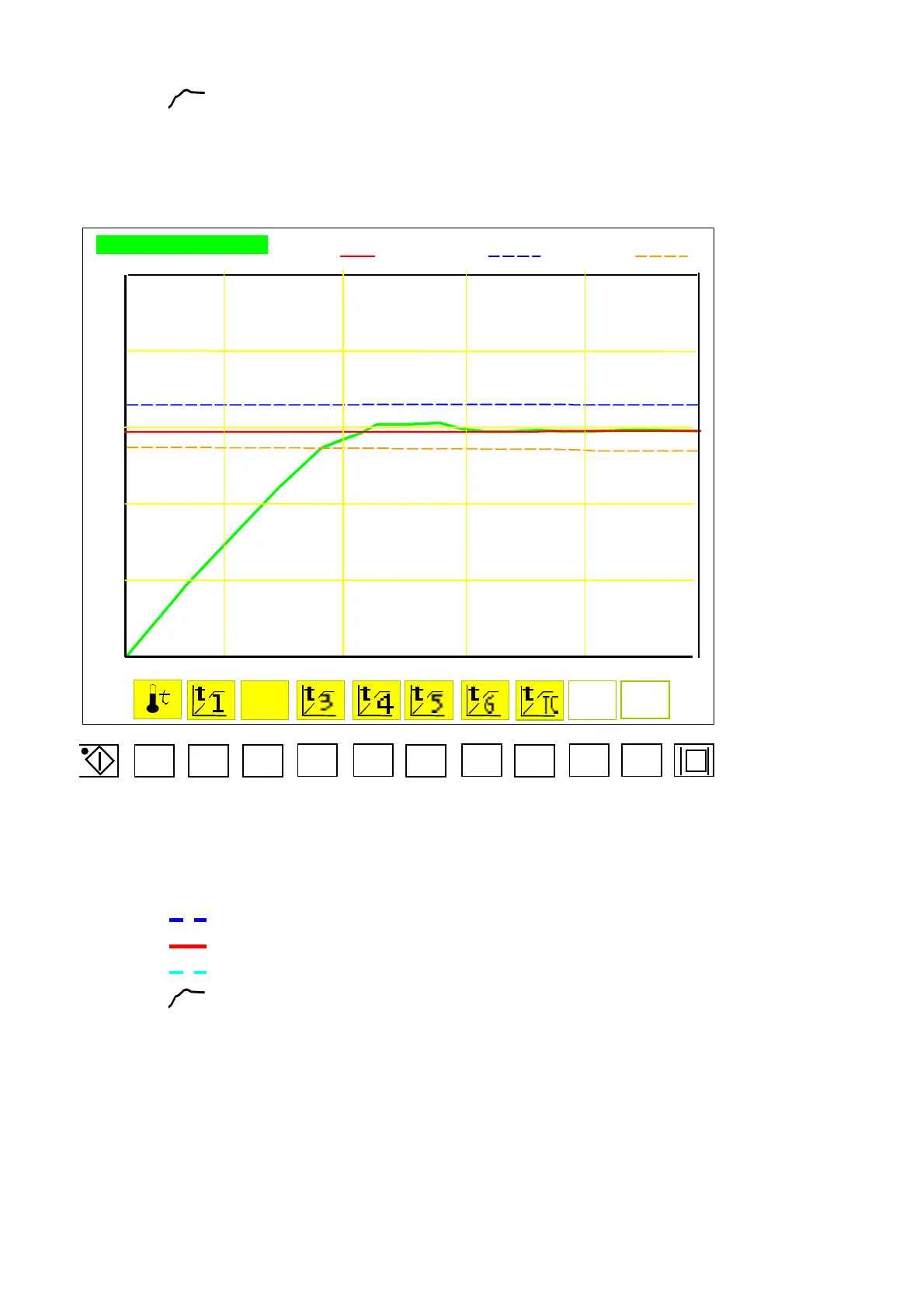

This curve shows the T2 temperature trend:
: Blue line is to indicate the deviation setting for high-temperature.
: Red line is to indicate the setting value of temperature.
: Ligh-blue line is to indicate the deviation setting for low-temperature.
: White line is to indicate the practical temperature.
