CDC-2000
操作手冊
Operational Manual

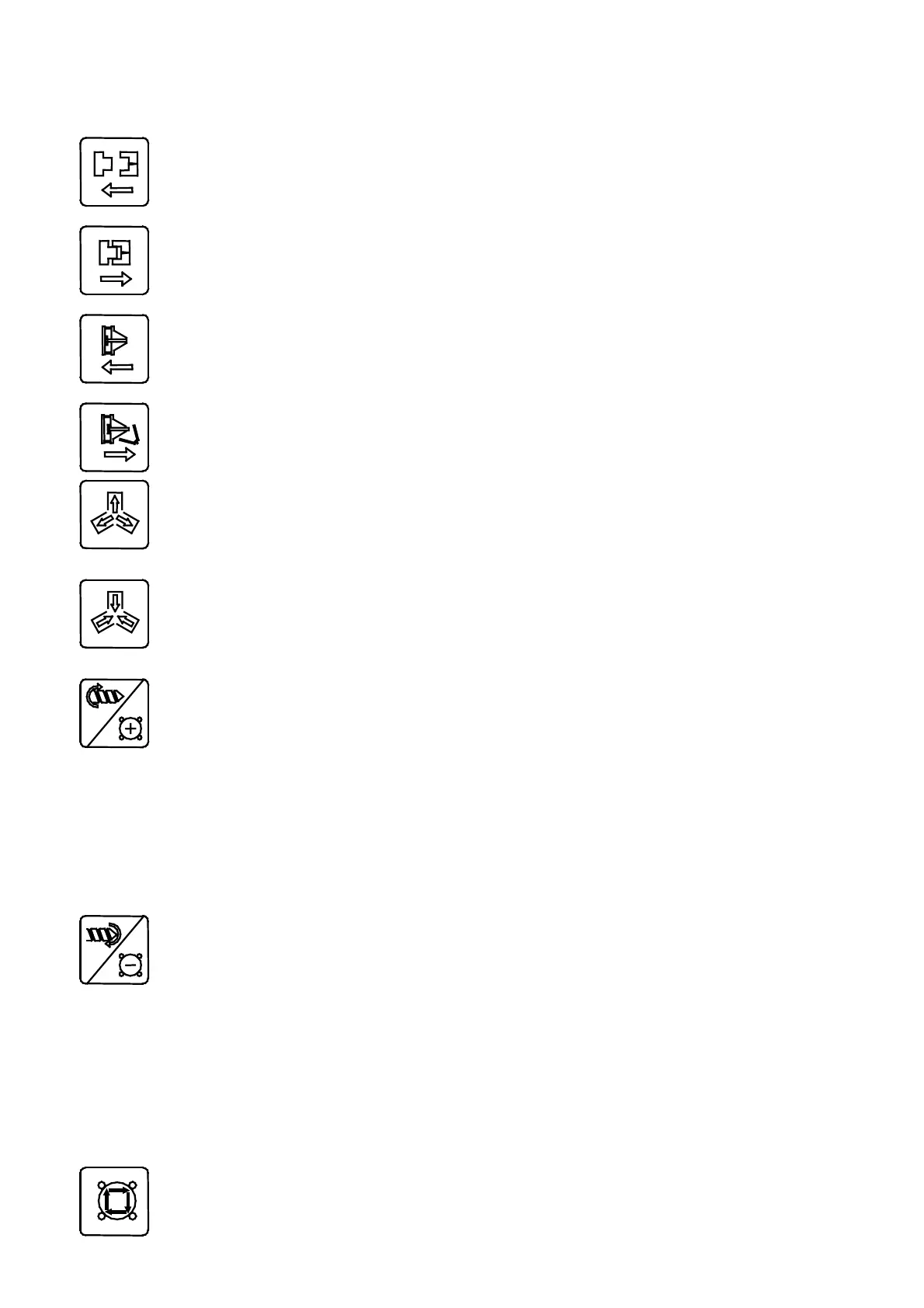

The functions of the manually operational keys are shown below:
:Mode open.
: Mode close.
: Ejector backward.
: Ejector forward.
: In manual mode, when pulling core is set on Menu (06),this button
can move the core 1 backward manually.
: In manual mode, when pulling core is set on Menu (06), this button
can move the core 1 forward manually.
: 1. In manual mode, when mould screw is set on Menu (07), this button
can move the screw forward manually.
2. In manual mode, when mould thickness is set on Menu (09), this
button can adjust the platen backward manually.
3. In manual mode, when pulling core is set on Menu (06), this button
can move the core 2 forward manually.
: 1. In manual mode, when mould screw is set on Menu (07), this button
can move the screw backward manually.
2. In manual mode, when mould thickness is set on Menu (09), this
button can adjust the platen forward manually.
3. In manual mode, when pulling core is set on Menu (06), this button
can move the core 2 backward manually.
: Auto adjustment of mold thickness (Not used now).
04/08/13
3
