1 Operational Manual
CC) ｅ : Function selection of mold-opening feeding(optional). Press or
to select
“
open
”
or
“
close
”
, then push to complete a correction.
DD) YYYY.Y : In automatic mode, time setup of delay time switch to feeding after
injection.
EE) ZZZ.Z :Time setup for cooling.(Code
“
Tim01
”
)

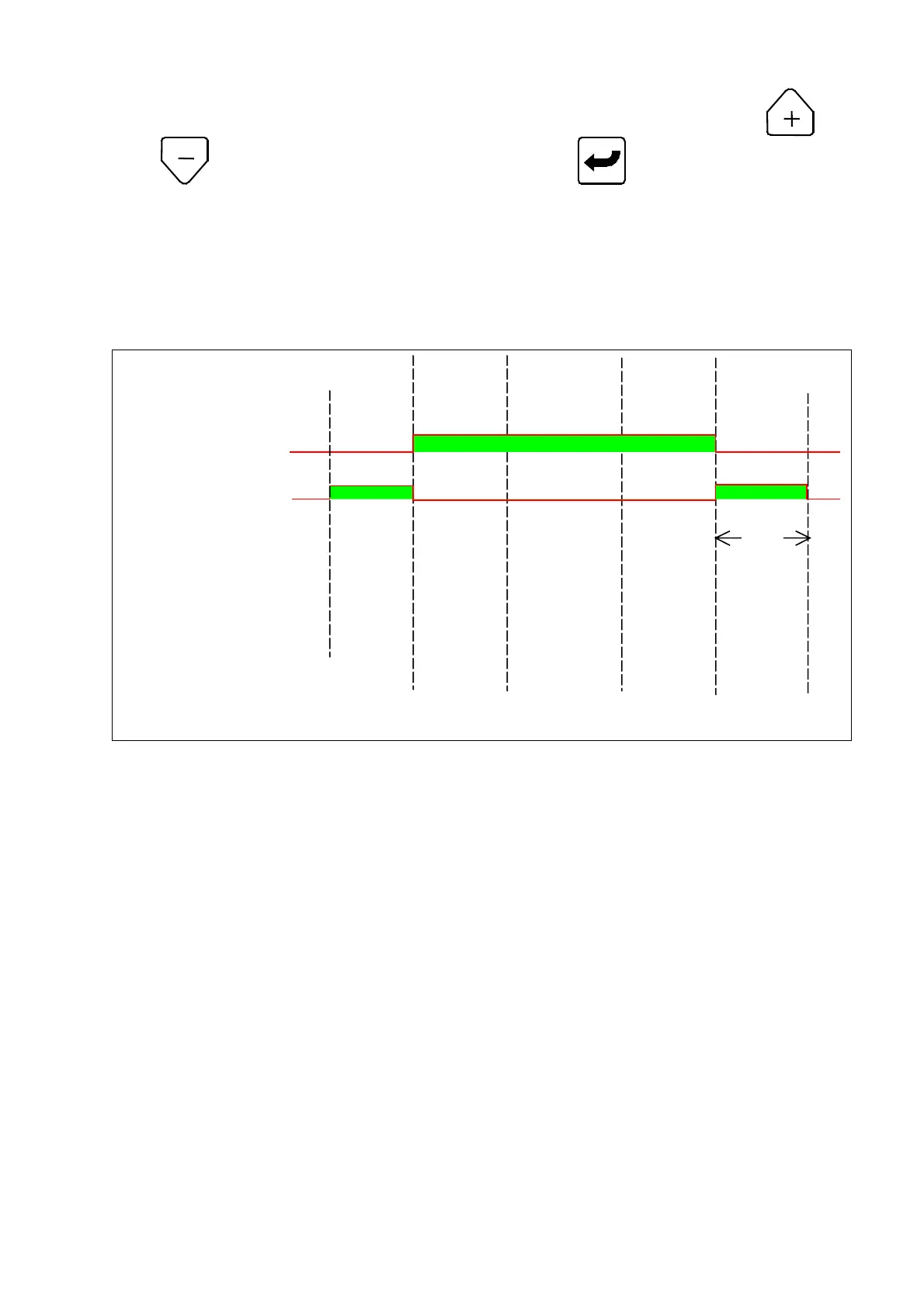

2.14.2 Sequence Diagram of Feeding
Feeding stroke 1 2 3
Decompression Stroke
Decompression
Decompression
Forward
Backward
Decompression Distance
Speed Setup AA DD II NN RR
Pressure Setup BB EE JJ OO SS
Counter-Balance Pressure
FF KK PP
Setup
End-Position setup
CCC.C GGG.G LLL.L QQQ.Q UUUU.U
TT.T
04/08/13
66
