1 Operational Manual
2.20 Prompt Setting Menu

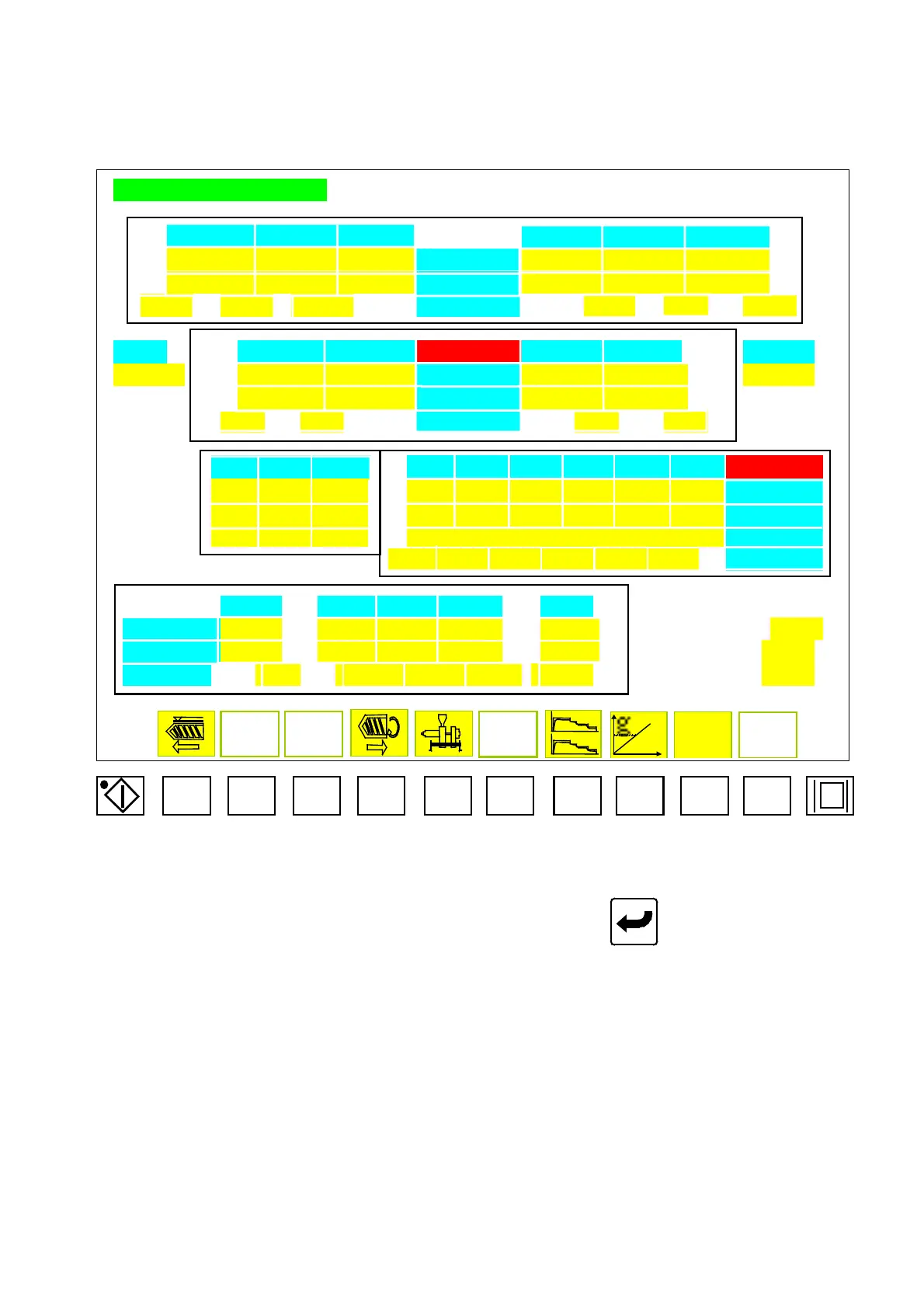

QUICK SET-UP PAGE
TO SLOW FAST SLOW ≦―MOLD―≧ FAST LOW PR. HI-PR.
F1 E1 D1 SPEED % A1 B1 C1
F2 E2 D2 SSURE % A2 B3 C2
FFFF.F EEEE.E DDDDDp POSITION mm AAAA.A BBBBB CCCCCp
TIMES BACK 2 BACK 1 EJECTOR FORE 1 FORE 2 EJT.HOLD
bbbbb J1 I1 SPEED % G1 H1 aaaa.a
J2 I2 PRESSURE % G2 H2
JJJ.J III.I POSITION mm GGG.G HHH.H
3 2 1 6 5 4 3 2 1 INJECT
S1 R1 Q1 P1 Q1 N1 M1 L1 K1 SPEED %
S2 R2 Q2 P2 Q2 N2 M2 L2 K2 PRESSURE %
SSS.S RRR.R QQQ.Q cccc.c TIME SEC
PPP.P OOO.O NNN.N MMM.M LLL.L KKK.K POSITION mm
BEFORE 1 2 3 LATER
SPEED % T1 U1 V1 W1 X1 COLLINGTIME :dddd.d
PRESSURE % T2 U2 V2 W2 X2 PAUSE/SEC : eeee.e
POSITIONmm TTT.T UUU.U VVV.V WWW.W + XX.X CYCLETIME : ffff.f
Menu 19
F1 F2 F3 F4 F5 F6 F7 F8 F9 F10
PRE
Move the cursor to set parameter. Key in desired digits and press
to complete a correction.
Code descriptions for menu 19 are listed below:
2.20.2 Mold-Closing Stroke Setup:
A) A1: Speed setup for fast mold closing.
B) A2: Pressure setup for fast mold closing.
C) AAAA.A: End-position setup for fast mold closing.
D) B1: Speed setup for low pressure mold-closing.
E) B1: Pressure setup for low pressure mold-closing.
F) BBBBB: End-position setup for low pressure mold-closing.
G) C1: Speed setup for high-pressure mold closing.
H) C2: Pressure setup for low pressure mold-closing.
