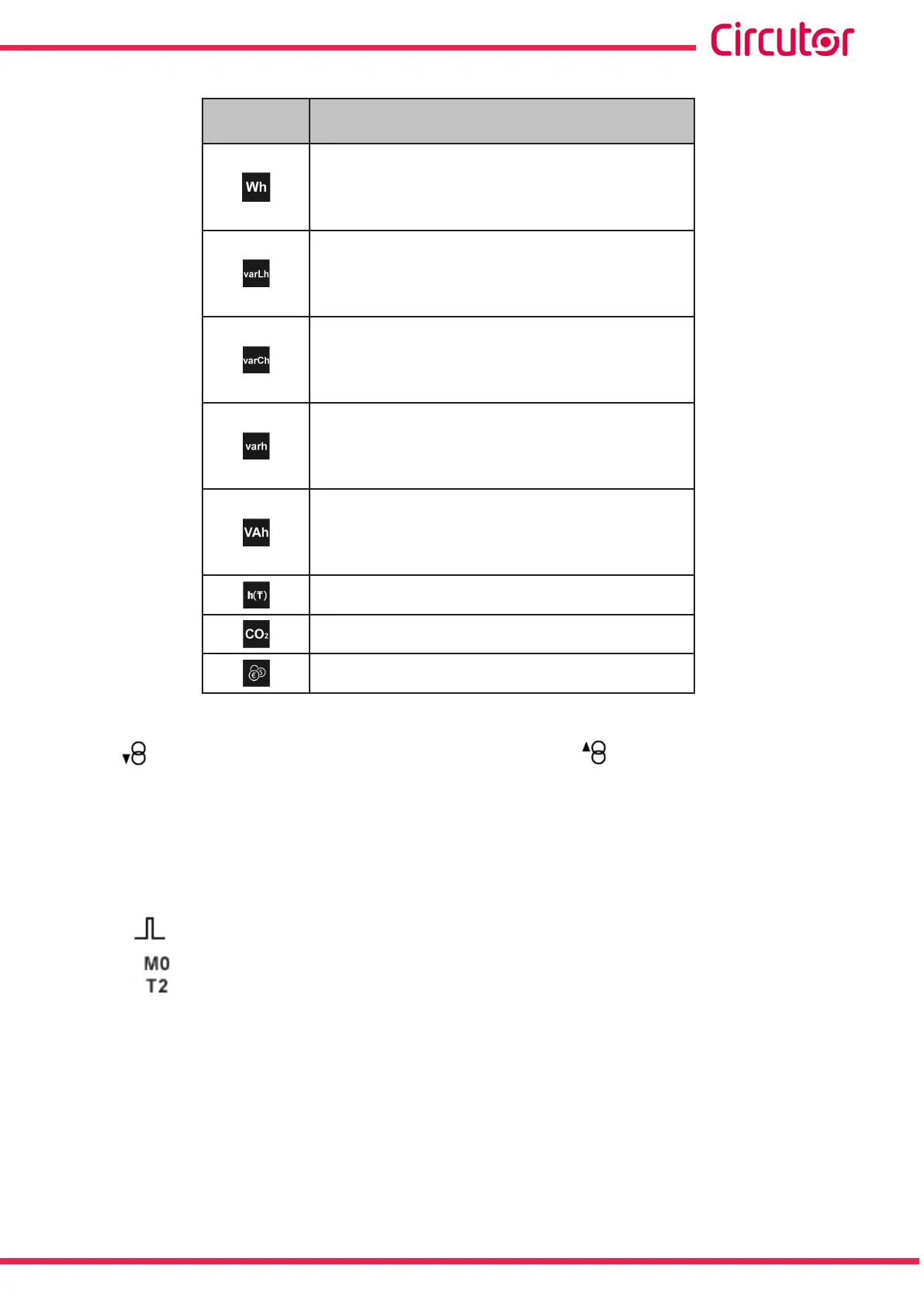

Table 28: Incremental parameters (display 4 parameters)�
Icon
Display 4 parameters
Incremental parameters
Active energy L1
(17) (18)
Active energy L2
(17) (18)
Active energy L3
(17) (18)
Active energy III
(17) (18)
Inductive reactive energy L1
(17) (18)
Inductive reactive energy L2
(17) (18)
Inductive reactive energy L3
(17) (18)
Inductive reactive energy III
(17) (18)
Capacitive reactive energy L1
(17) (18)
Capacitive reactive energy L2
(17) (18)
Capacitive reactive energy L3
(17) (18)
Capacitive reactive energy III
(17) (18)
Total reactive energy L1
(17) (18)
Total reactive energy L2
(17) (18)
Total reactive energy L3
(17) (18)
Total reactive energy III
(17) (18)
Apparent energy L1
(17) (18)
Apparent energy L2
(17) (18)
Apparent energy L3
(17) (18)
Apparent energy III
(17) (18)
Active tariff hours
Active tariff CO
2
emissions
Cost of active tariff
(17)
The following icons appear for all these parameters on the screen:
Indicating that the parameter refers to consumed or generated energy.
If the 2 icons light up at the same time, it means the installation is not properly connect-
ed.
(18)
The value of the energy parameters is saved in the non-volatile memory every minute.
If there is a transistor digital output or input, programmed in impulse mode, associated with the
variable being displayed, the following will appear:
 The icon that indicates that an impulse input or output has been programmed
 The module with which the alarm is associated.
 The associated output in the module.
111
Instruction Manual
CVM-A1000 - CVM-A1500
