3�5�11�- SINGLE-PHASE NETWORK MEASUREMENT, PHASE TO PHASE, WITH A 2-WIRE
CONNECTION (CVM-A1x00-FLEX)�
Measurement system:
L1
L2
N V
L3 L2
V
L1
V
VL1
NV
REF REF
POWER SUPPLY
VL2
L1
C
SHLD
CARGA / LOAD
Alimentación auxiliar
Power Supply
SHLD SHLDL1 L2 L3C1 C2 C3

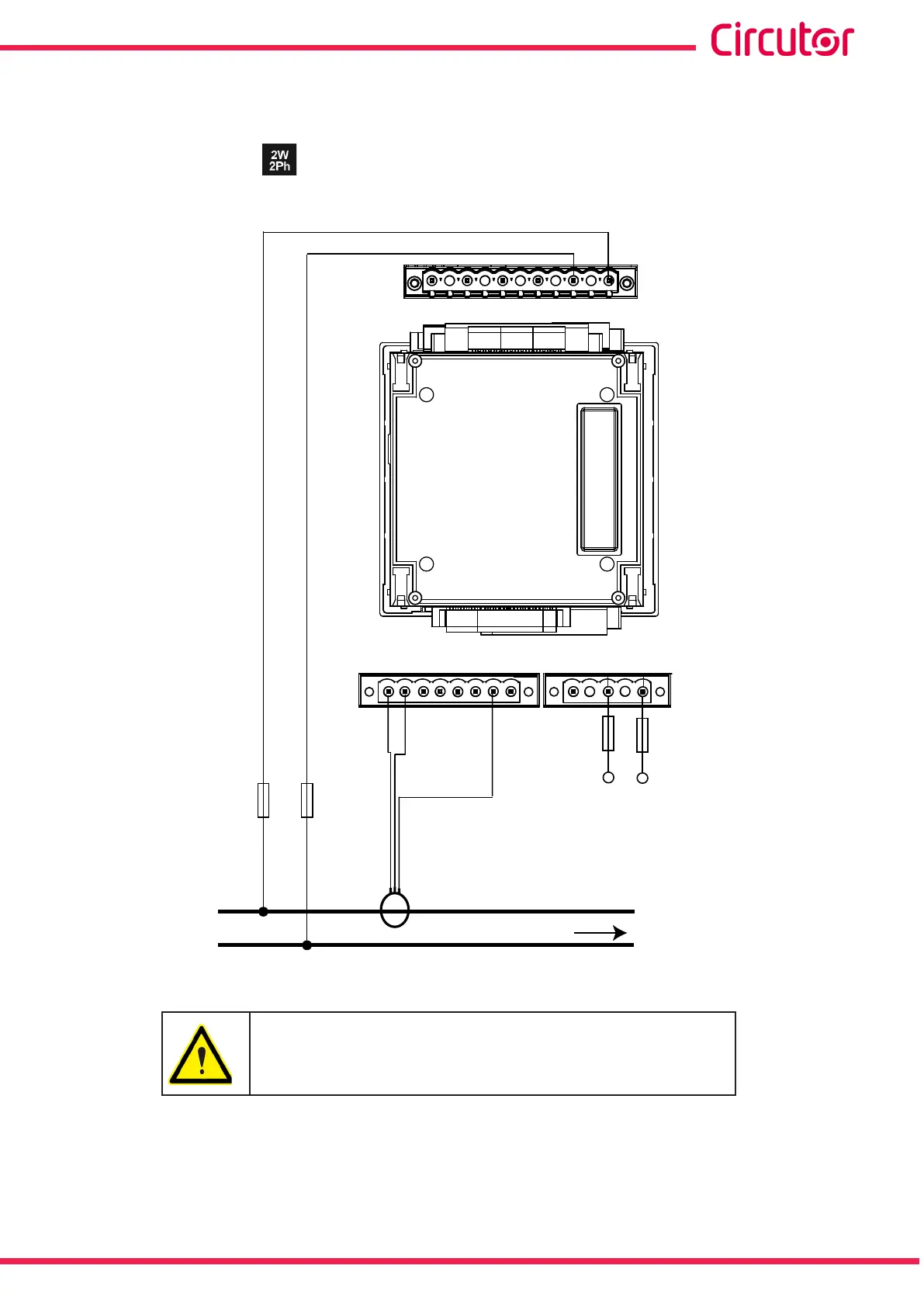

Figure 15: Phase to phase single-phase measuring with a 2-wire connection (transformer secondary: /100 mV~)�
It is mandatory connect the SHLD terminal of the probe.
27
Instruction Manual
CVM-A1000 - CVM-A1500
