Circutor CVM-A1500 - 5�7�7�- Ratio of Current Transformers

Primary voltage:
Maximum value: 500000.
Minimum value: 1.
Secondary voltage:
Maximum value: 999,9
Minimum value: 10.
Rated Phase-Neutral Voltage:
Maximum value: (Rated Phase-Neutral Voltage / Voltage Ratio) ≤ 1000
Minimum value: (Rated Phase-Neutral Voltage / Voltage Ratio) ≥ 50
Maximum possible voltage ratio: 9999.
Note: The voltage ratio is the ratio between the primary and secondary voltage.
5�7�7�- RATIO OF CURRENT TRANSFORMERS�
The current transformer ratio is selected on this screen, Figure 267.
The following is programmed:
 The value of the primary current
 The value of the secondary current.
 The value of the primary neutral current.
 The value of the secondary neutral current.
Note: Conguration of the secondary current and primary and secondary neutral current values
is not supported in the CVM-A1x00-FLEX version.

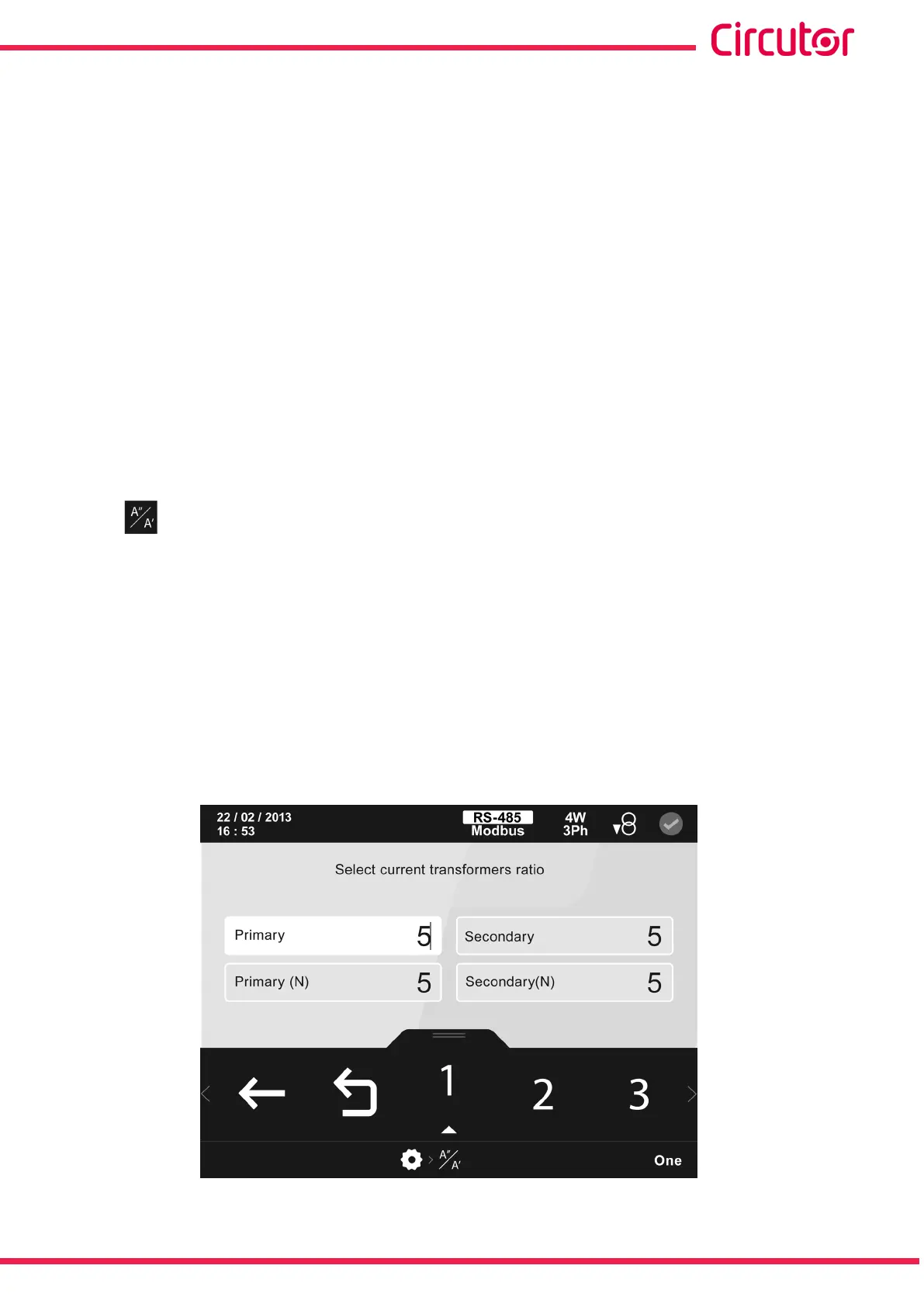

Figure 267: Current transformer ratio conguration screen.
185
Instruction Manual
CVM-A1000 - CVM-A1500
