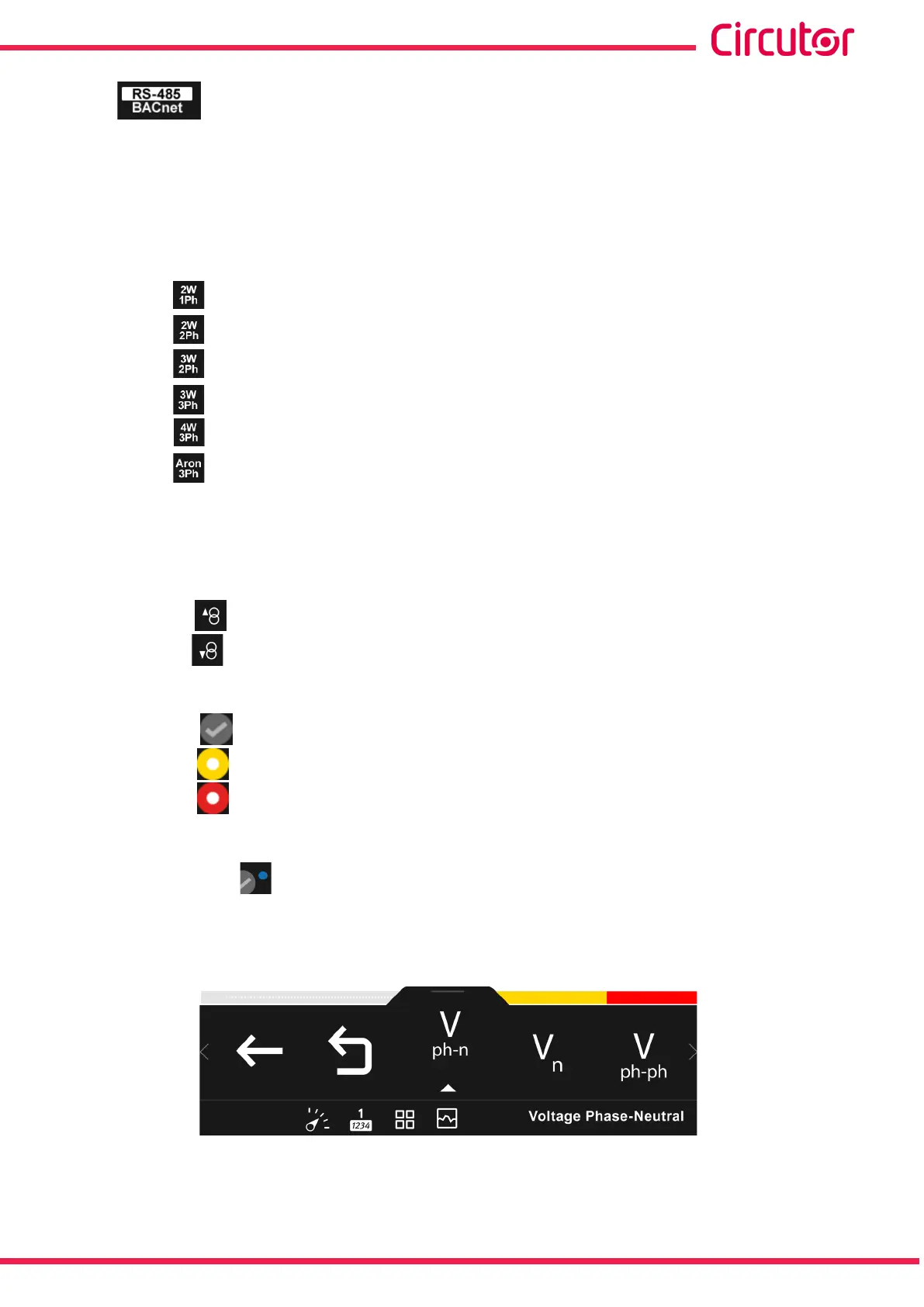

BACnet protocol.
Type of installation
Use the setup menu to select the type of installation to which the device is connected, (“5.7.5.-
MEASUREMENT CONNECTION MODE.”).
Depending on the installation selected, you will view:
Single-phase installation.
Two-phase installation.
Two-phase installation with neutral.
Three-phase installation.
Three-phase installation with neutral.
Aron installation.
If the position of the input channels is changed to allow communications ( “6.3.10.19.- Position
of input channels”), the installation type will be shown in red.
Consumption or Generation
The icon indicates that the installation is generating.
The icon indicates that the installation is consuming.
Alarm status
The icon indicates that no alarm has been generated.
The icon indicates that the device has a pre-alarm activated.
The icon indicates that the device has an alarm activated.
Disturbance icon
The blue icon indicates that the device has detected a disturbance (overvoltage,
gap, interruption or transient) over the last 24 hours.
4�4�2�- LOWER AREA
Figure 33: Lower area of display�
The various options on the display and setup menus and an explanatory text for the option se-
lected are shown in the lower area.
