To conrm the selection, press the key.
● The conguration values are:
6-cycle voltage and current, the equipment stores the 6-cycle waveform, voltage
and current of a detected quality event.
24-cycle voltage, the equipment stores the 24-cycle waveform, voltage and current
of a detected quality event.
12-cycle voltage and current, the equipment stores the 12-cycle waveform, voltage
and current of a detected quality event.
5�7�10�- DISPLAY OF VARIABLES�
The parameters to be displayed for each type of instantaneous, incremental and demand value
are selected on this screen, Figure 279:

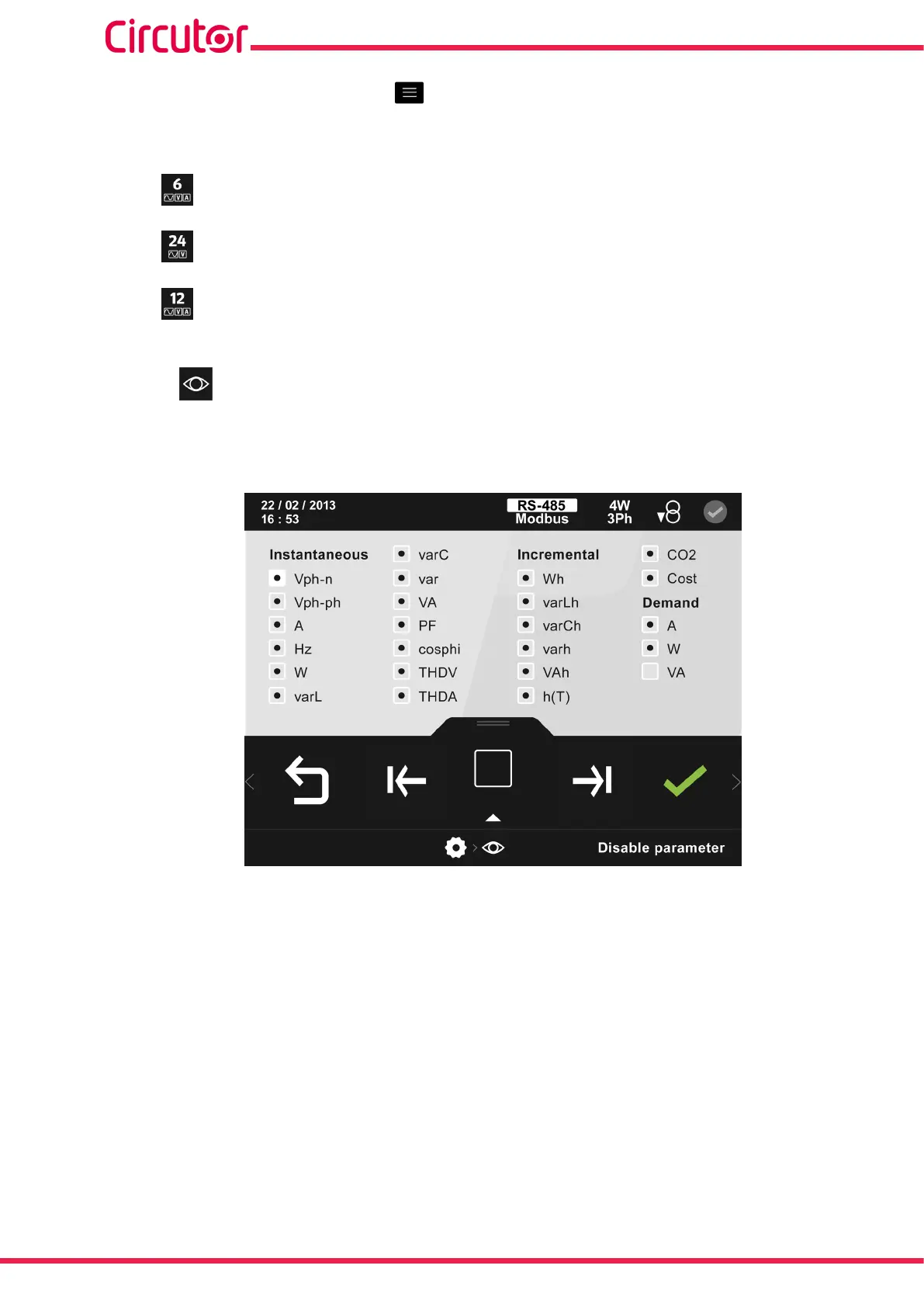

Figure 279: Variable display conguration screen.
The parameter selected is indicated in white.
192
CVM-A1000 - CVM-A1500
Instruction Manual
