Use the and keys to select the different options.
To conrm the selection, press the key.
● When programming the Transient:
Maximum value: 100.0
Minimum value: 1.0
5�7�9�3�- No of cycles to register

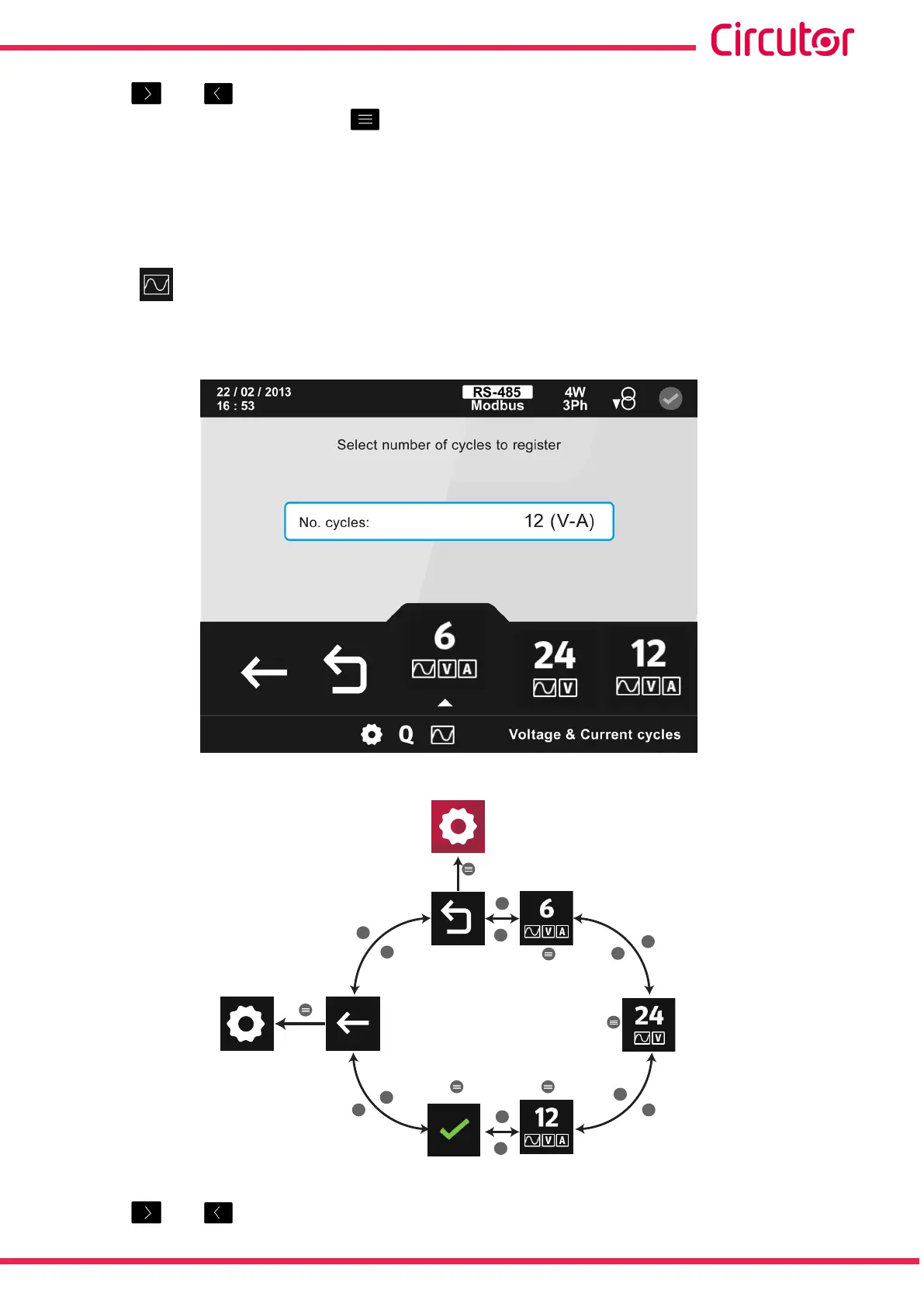

Using the conguration screen of the number of cycles to register, Figure 277, the number of
waveform cycles of the quality event to be detected and stored in the �EVQ le is congured
Figure 277: Conguration screen for the number of cycles to register.
>
>
>
>
>
<
<
< <
<
>
<
1
Main
menu
Back
Voltage &
Current 6 cycles
Voltage 24 cycles
Voltage &
Current 12 cycles
Conrm
and save
Figure 278: Setup menu: number of cycles to register�
Use the and keys to select the different options.
191
