4.4.- DISPLAY
The device has a colour TFT display which displays all the parameters indicated in Table 10.

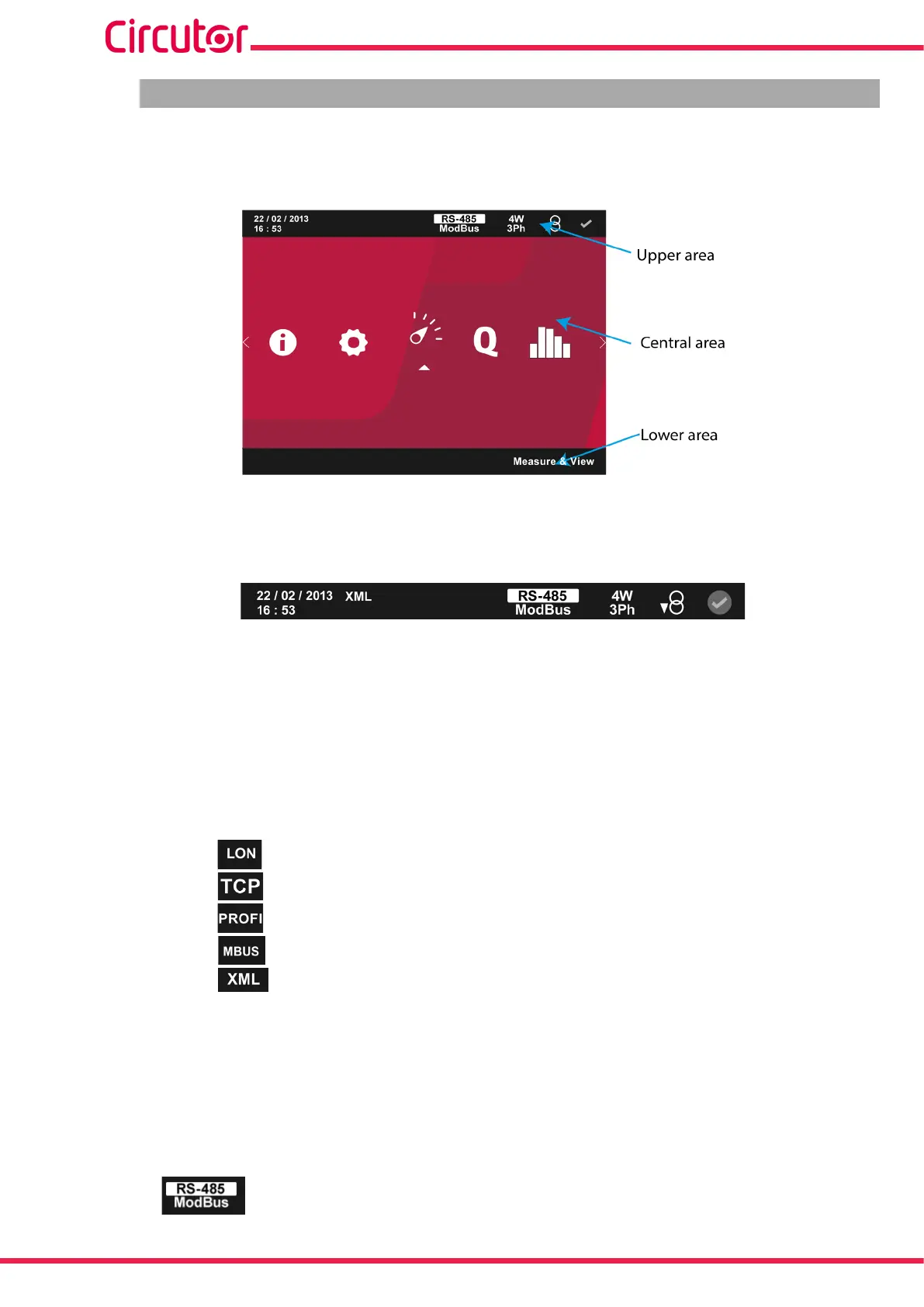

The display is divided into three areas (Figure 31):
Figure 31: CVM-A display areas�
4�4�1�- UPPER AREA
Figure 32: Upper area of display�
The current date and time are displayed in real time in this area.
The following are also displayed:
 Communications expansion module
If a communications expansion module has been installed, one of the following messages will
be displayed according to the purpose of the module:
LonWorks Module
Modbus/TCP Module.
Probus Module.
MBus Module�
Datalogger Module.
 Type of communications
The CVM-A devices have one RS-485 communications port.
The device has as standard two communications protocols: MODBUS RTU ® and BACnet.
See “6.- INTEGRATED COMMUNICATIONS”
Depending on the protocol selected you will view:
MODBUS RTU protocol.
