5�1�10�- EXPANSION MODULES�
Note: This option only appears when the device is connected to an expansion module of
Transistor Digital Inputs/Outputs (M-CVM-AB-8I-8OTR), Relay Digital Inputs/Outputs
(M-CVM-AB-8I-8OR) or Analogue Inputs/Outputs (M-CVM-AB-4AI-8AO).
On the main screen, Figure 166, of this option, select the expansion module for which you want
to display the status of the inputs.

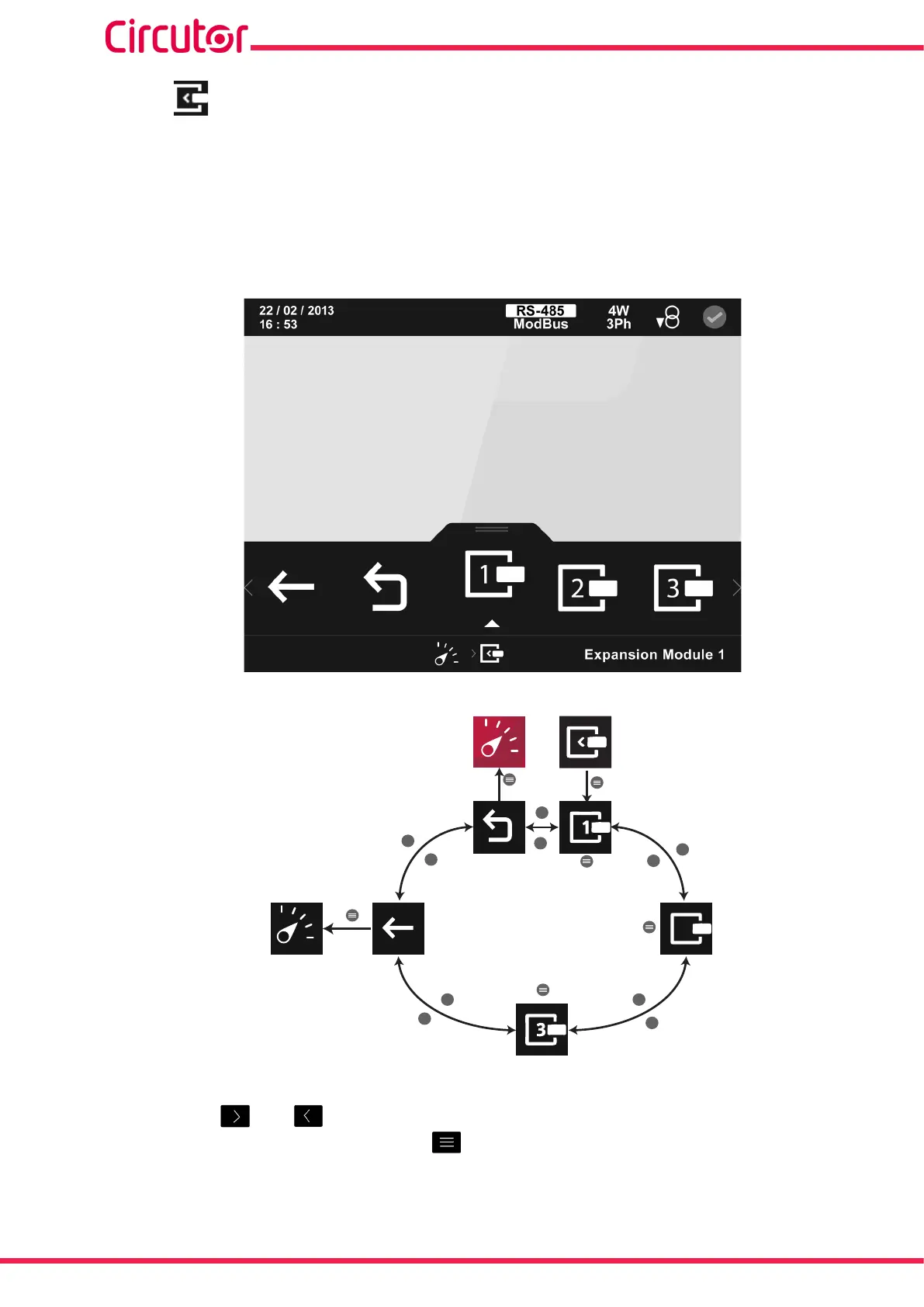

Figure 166: Expansion modules information screen�
>
>
>
>
>
<
<
<
<
<
2
Expansion
Module 1
Main
menu
Back
Expansion
Module 2
Expansion
Module 3
Figure 167: Expansion modules menu�
Use the keys and to select the different options.
To conrm the selection, press the key .
When selecting an expansion module, you will view a screen like that in Figure 168, where you
can view the status of the module inputs.
132
CVM-A1000 - CVM-A1500
Instruction Manual
